Main Wire Harness (Engine Compartment Left and Right Branches)
Main Wire Harness (Engine Compartment Left and Right Branches)

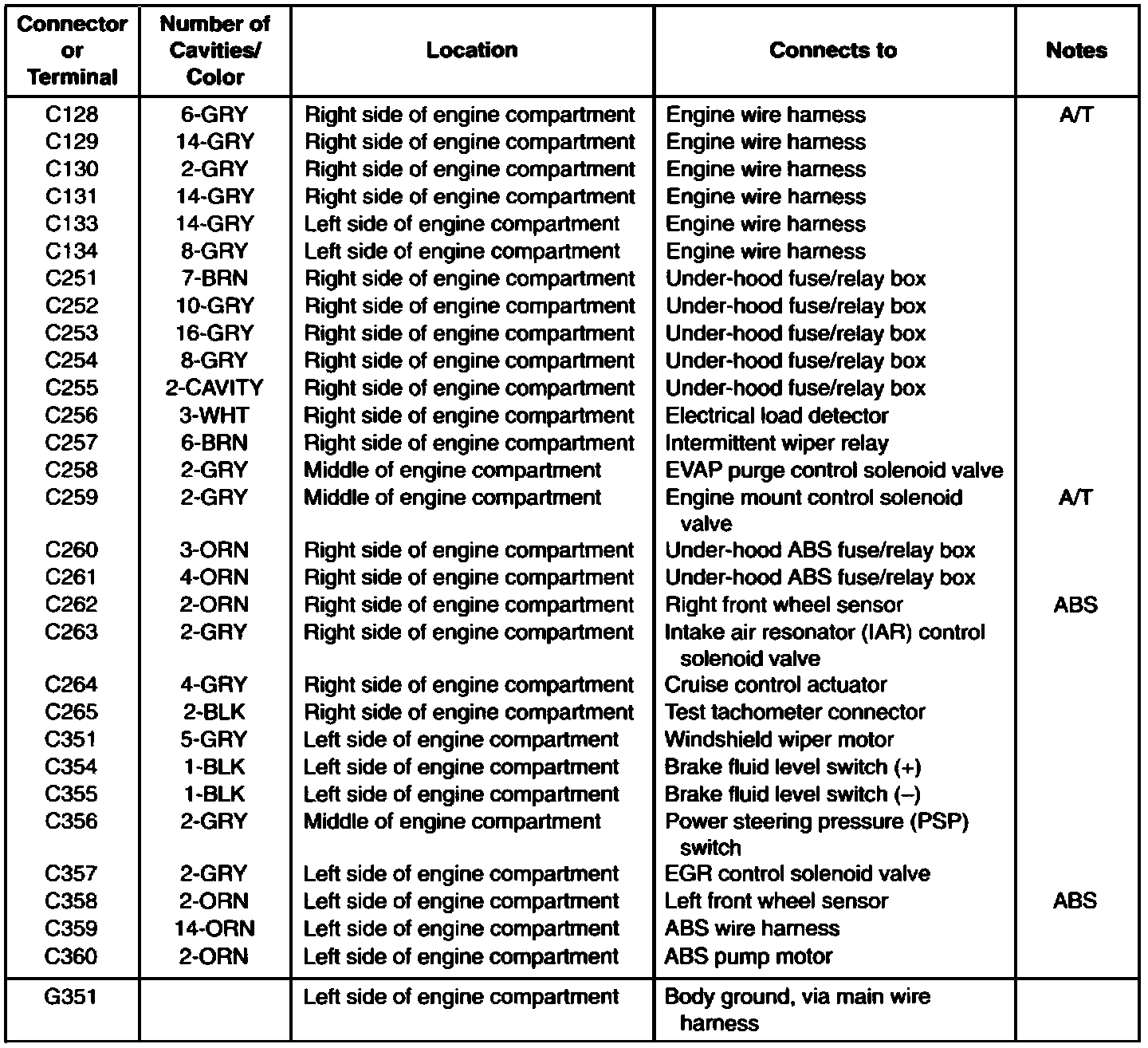

Main Wire Harness(Engine Compartment Left And Right Branches):

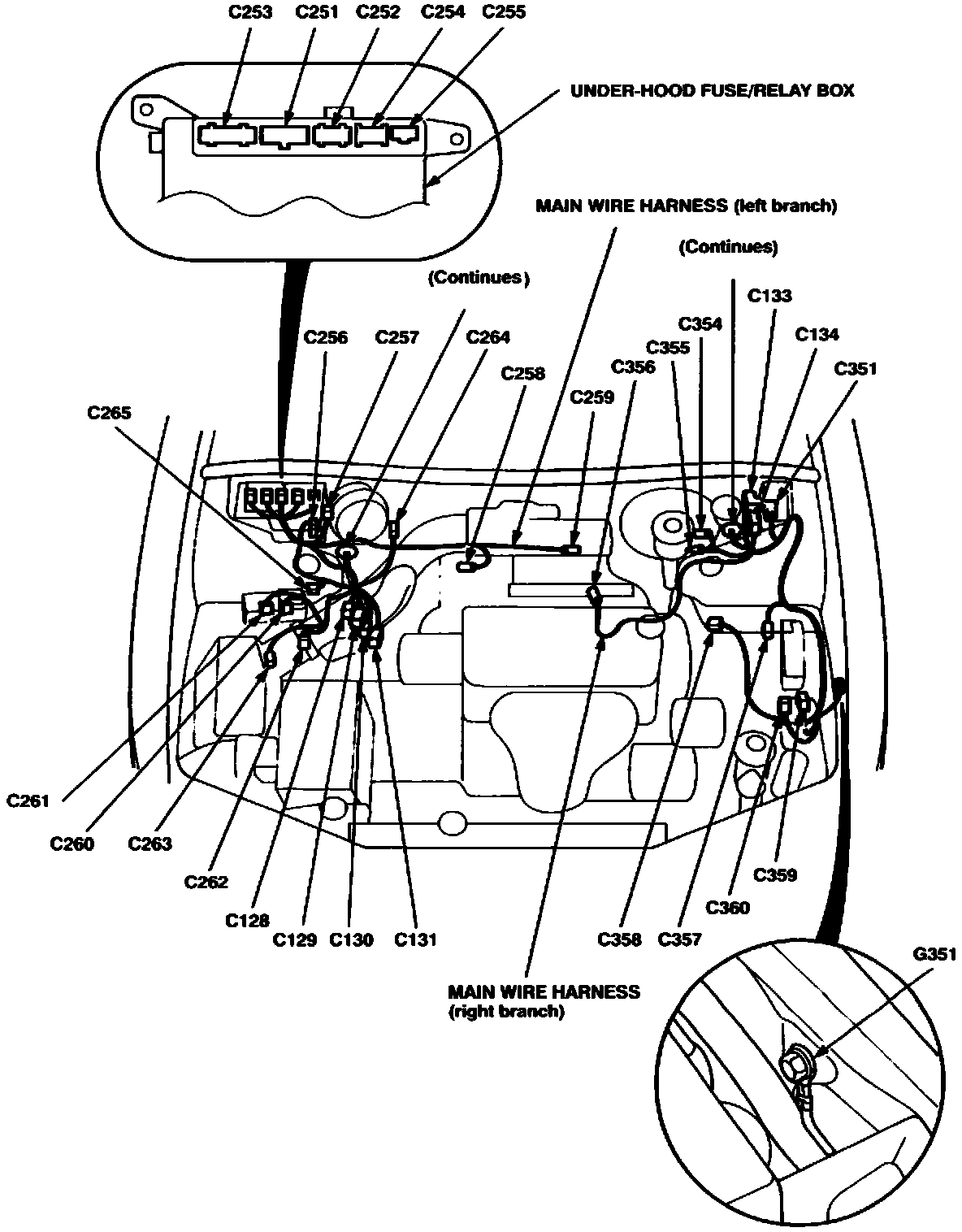

Wire Harness Routing:
