Home
>>
Honda
>>
1994
>>
Accord L4-2.2L SOHC VTEC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Ignition System
Ignition System

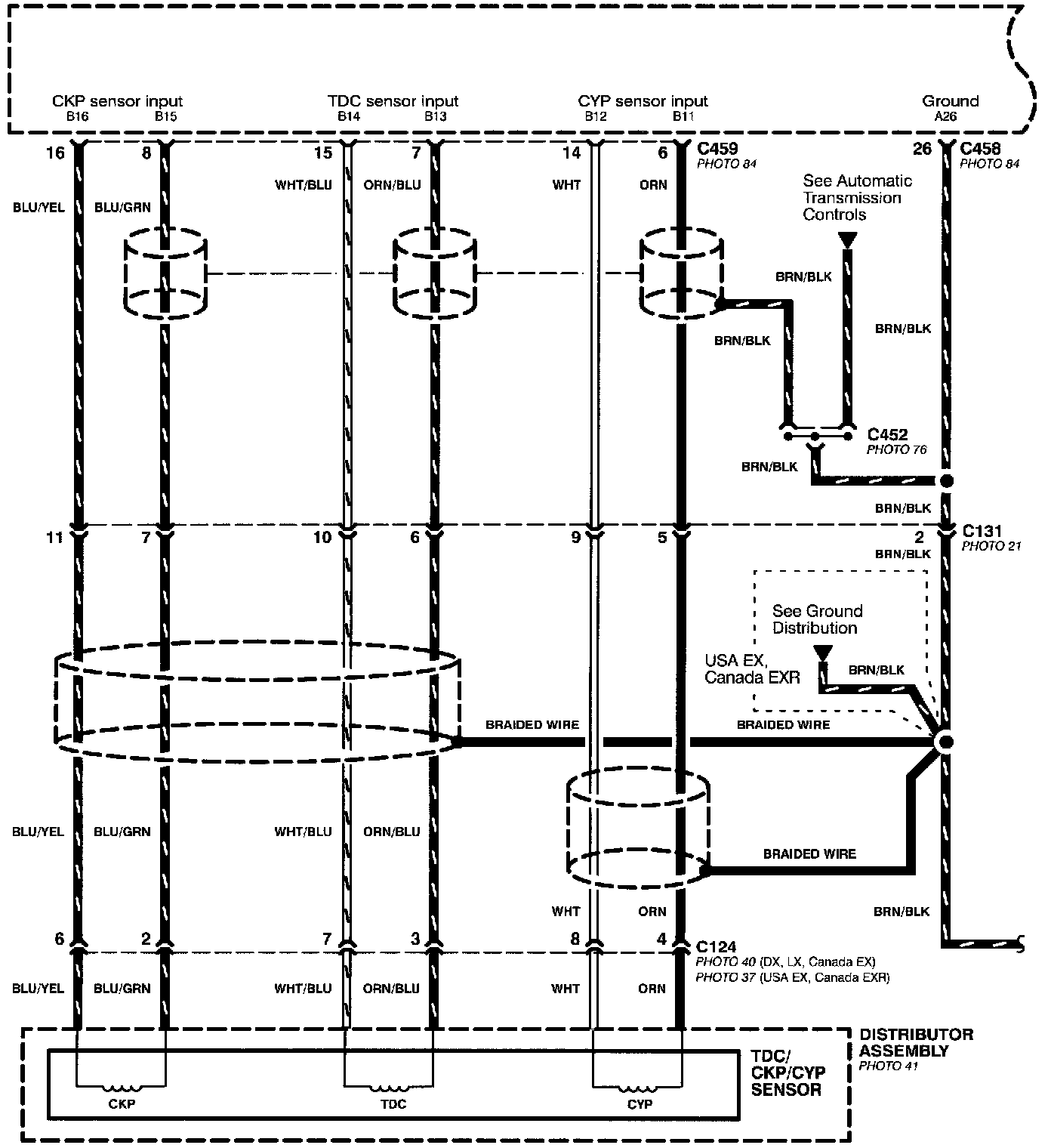

Programmed Fuel Injection System (PGM-FI)- Engine Data Sensors (Part 1 Of 2):
Programmed Fuel Injection System (PGM-FI)- Engine Data Sensors (Part 2 Of 2):
