Engine Compartment

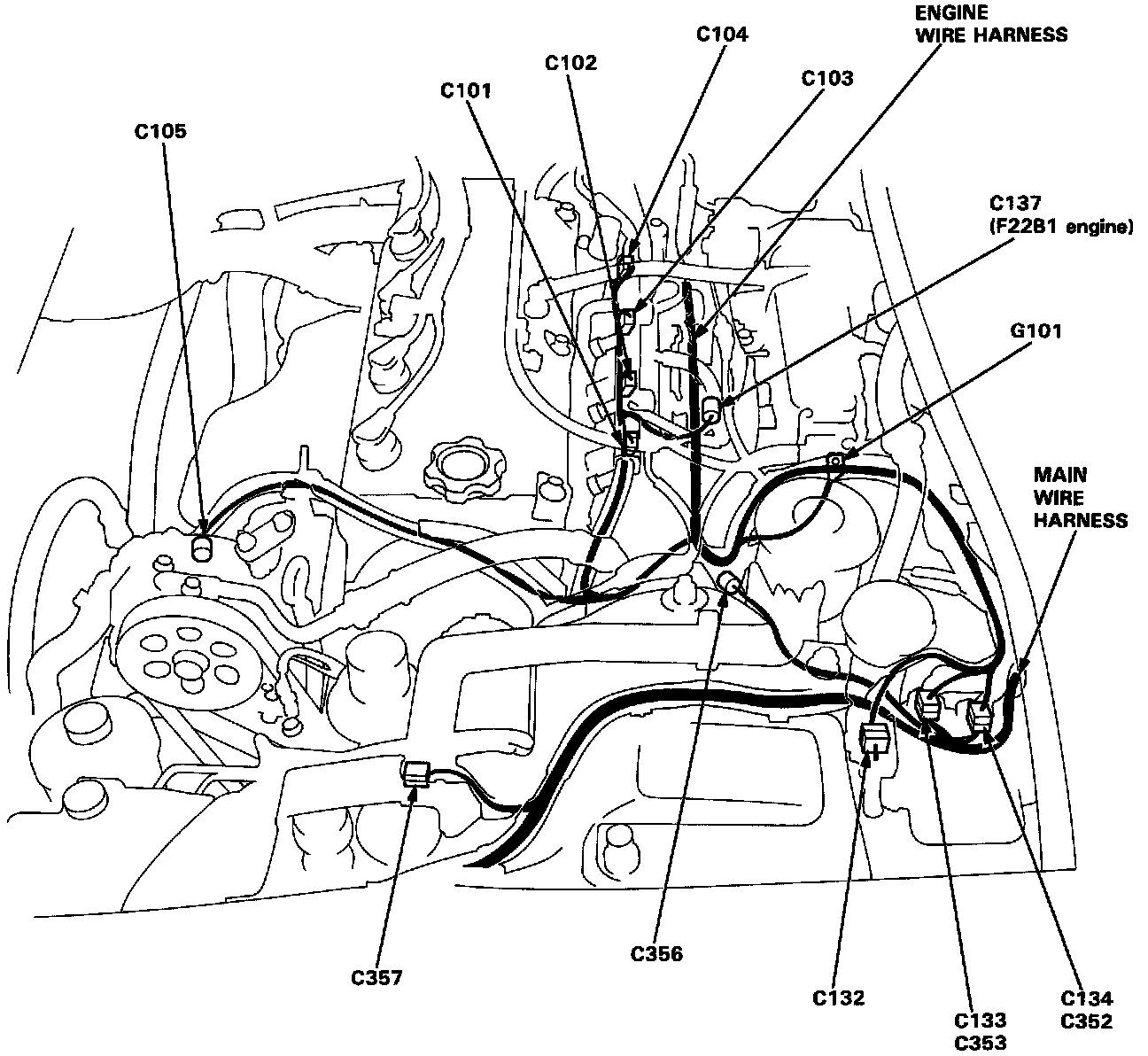

Engine Compartment Connectors:

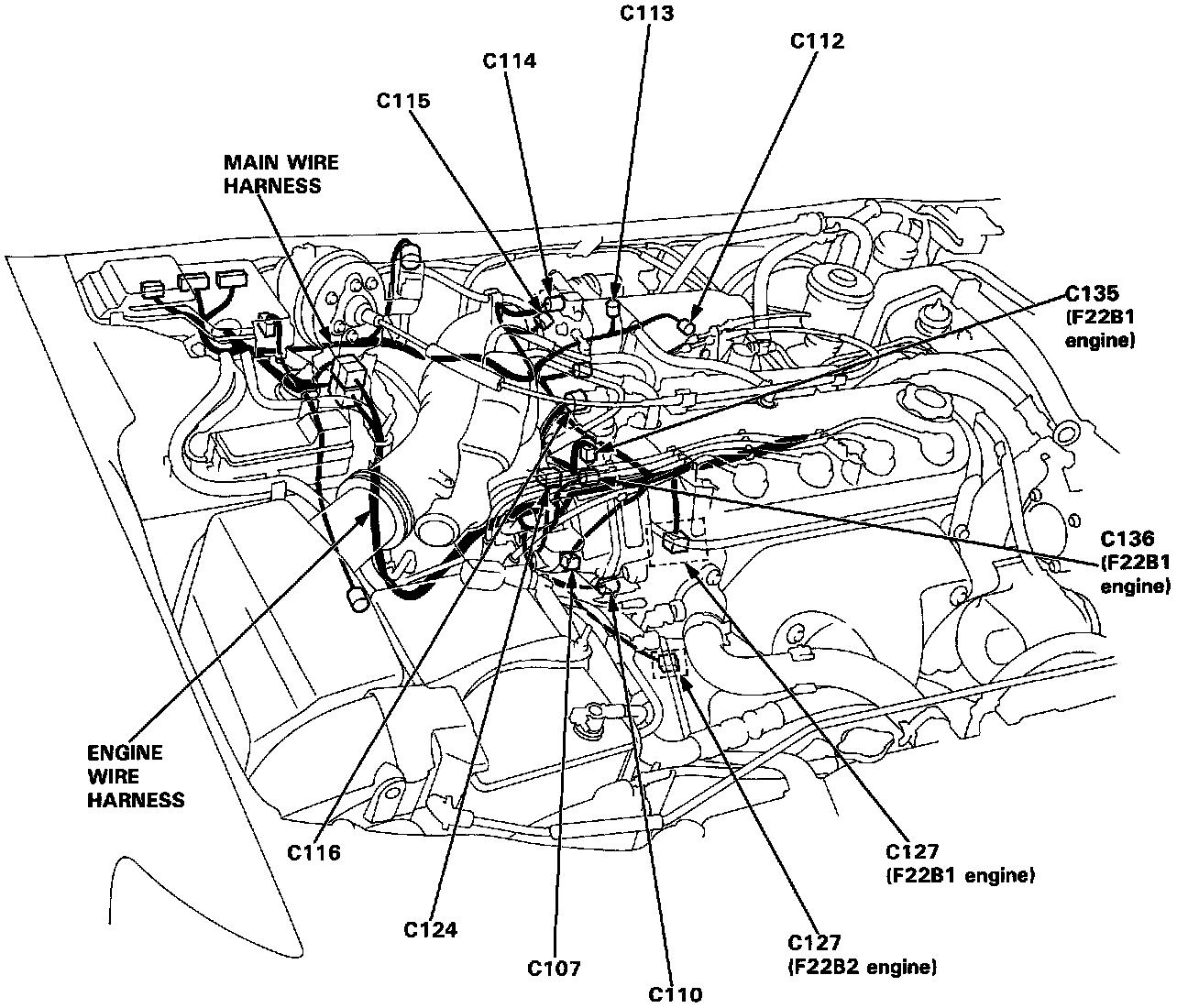

Engine Compartment Connectors:



Engine Compartment Connectors:
