Parking Pawl, A/T

DIMENSIONS

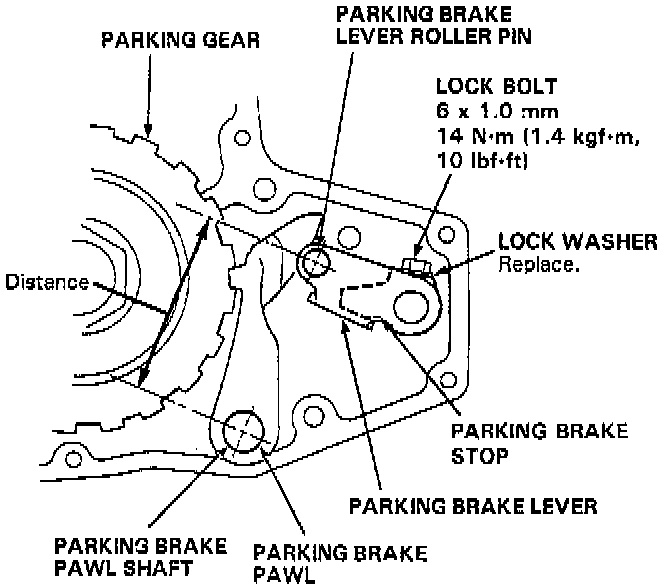

Parking Brake Pawl Shaft and Parking Brake Lever Roller Pin.

Standard: 64.5-65.5 mm (2.54-2.58 inch.)





Parking Brake Stop

1-PN# 24537-PA9-003
L1 11.00mm(0.433 inch)
L2 11.00mm(0.433 inch)

2-PN# 24538-PA9-003
L1 10.80mm(0.425 inch)
L2 10.65mm(0.419 inch)

1-PN# 24539-PA9-003
L1 10.60mm(0.417 inch)
L2 10.30mm(0.406 inch)
