Daytime Running Lamp
>>
Wiring Diagram
Wiring Diagram

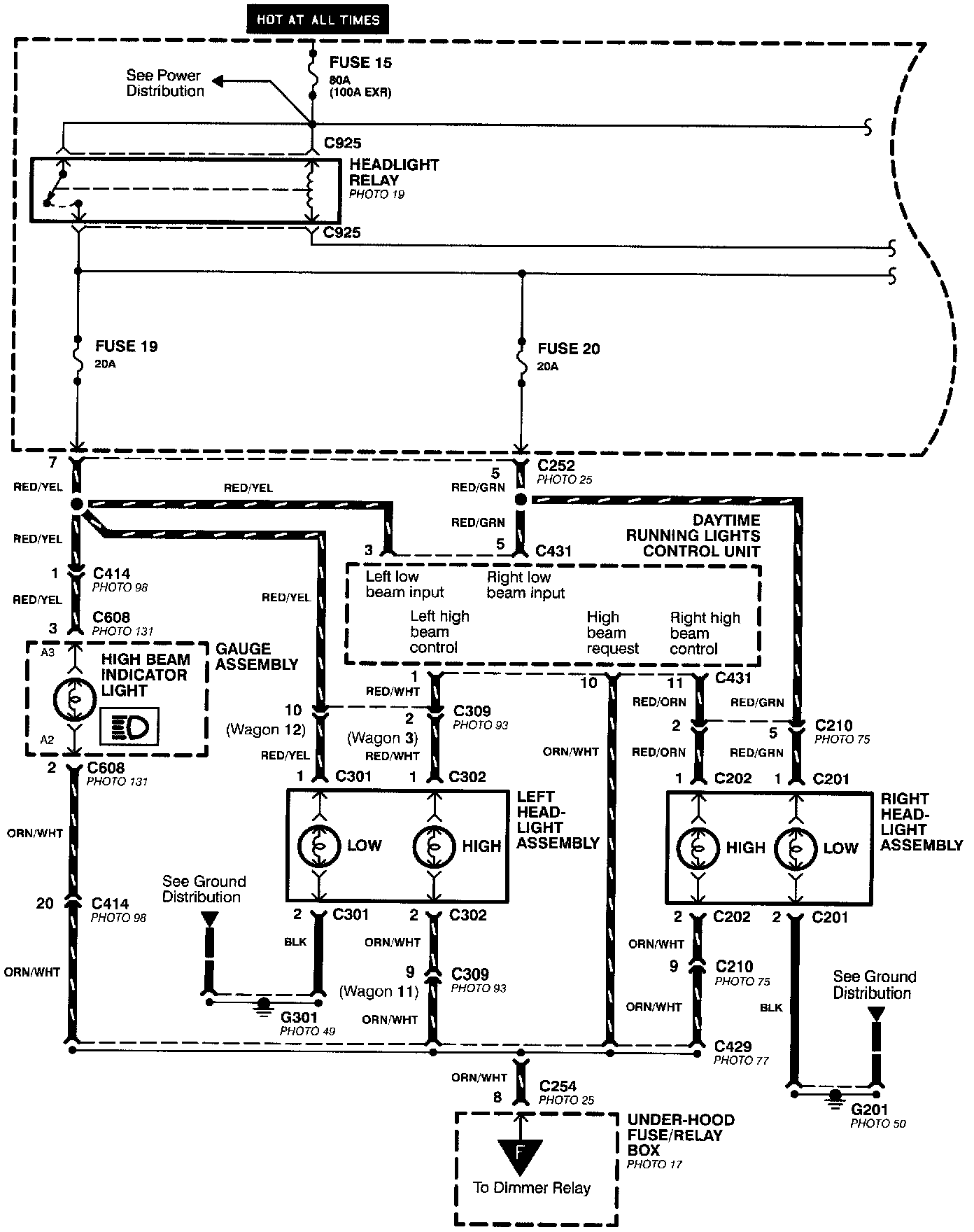

Headlights- Canada (Part 1 Of 3):

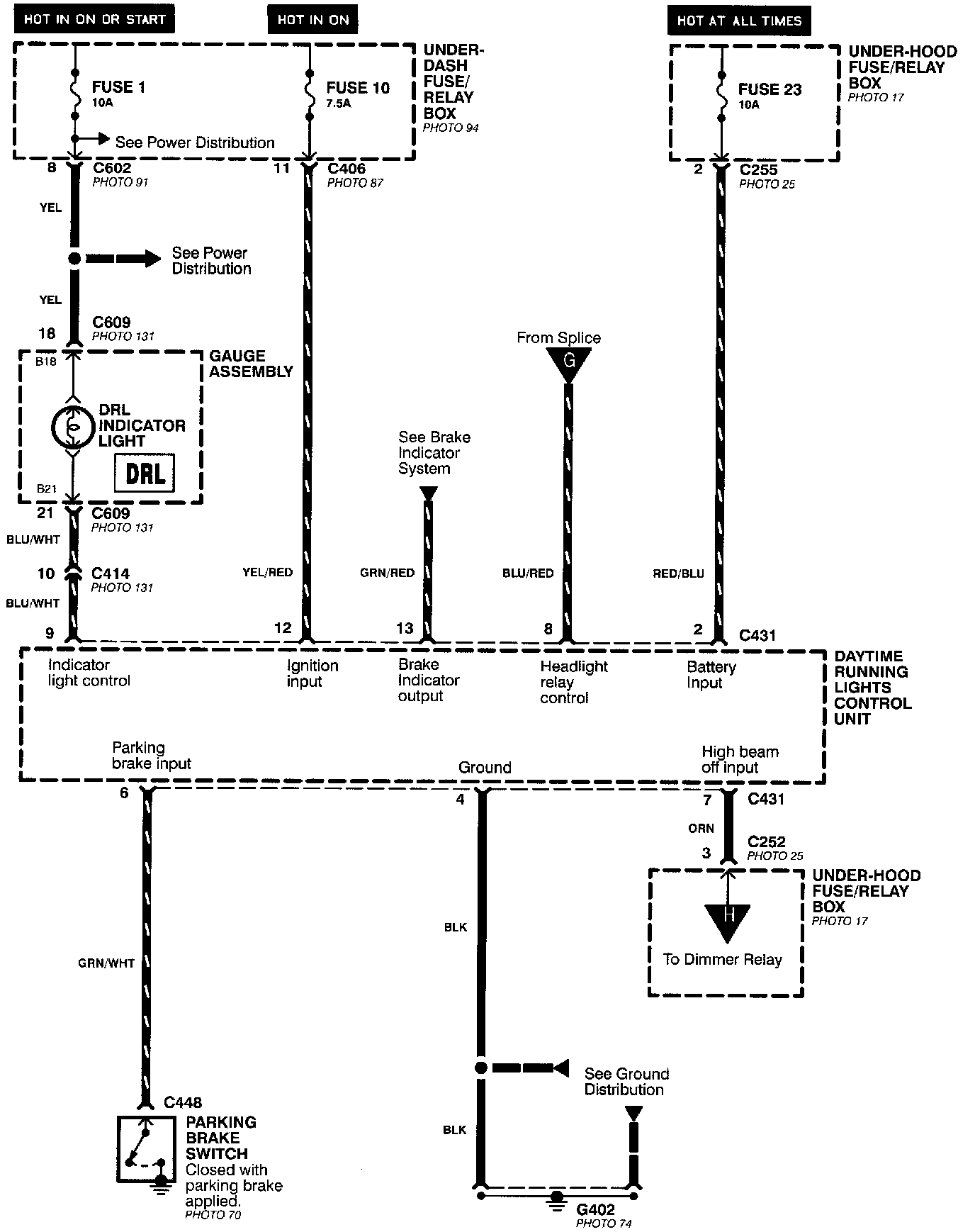

Headlights- Canada (Part 2 Of 3):

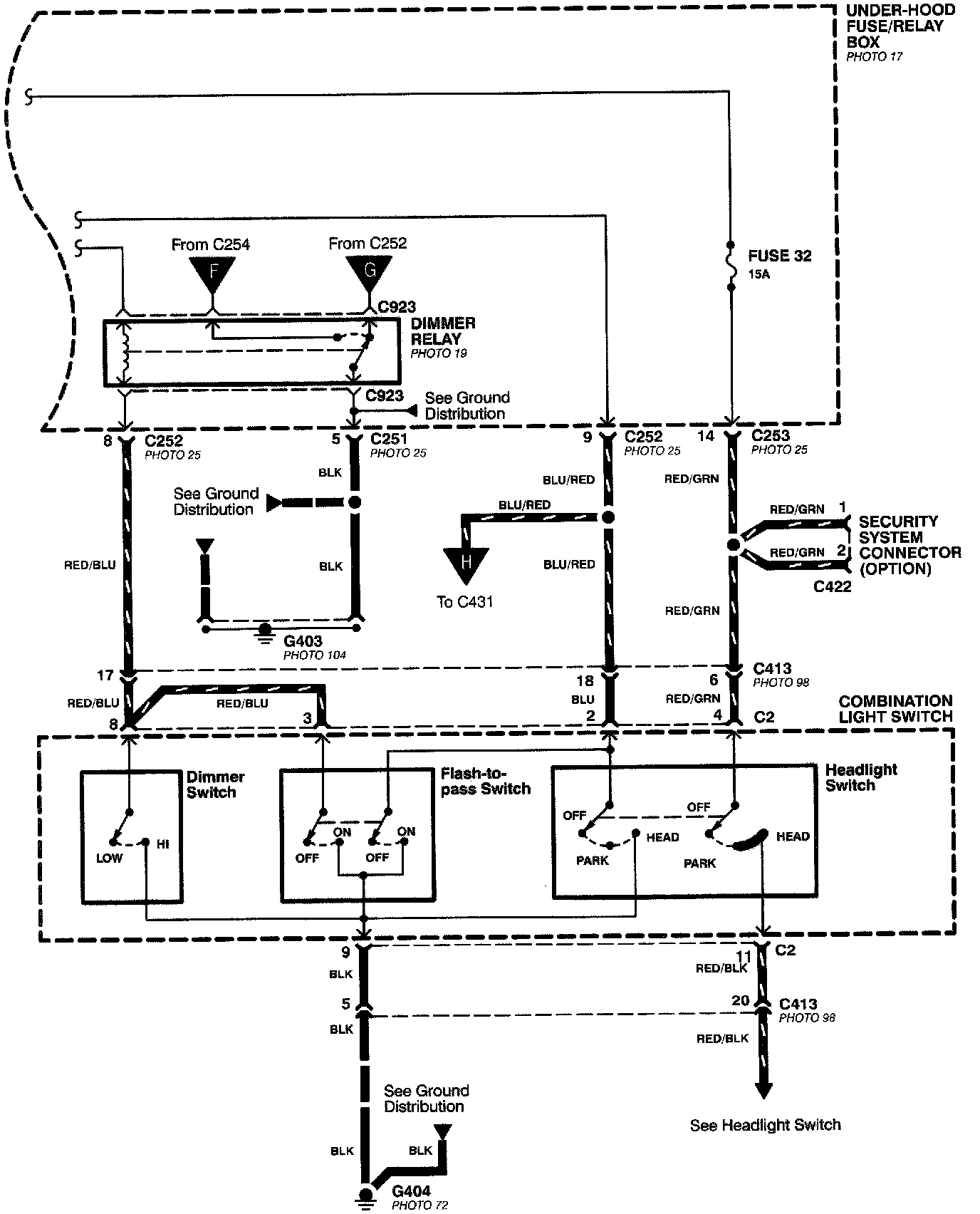

Headlights- Canada (Part 3 Of 3):
