Home
>>
Honda
>>
1994
>>
Civic L4-1493cc 1.5L SOHC (16 valve) MFI
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G201 & G202
G201 & G202

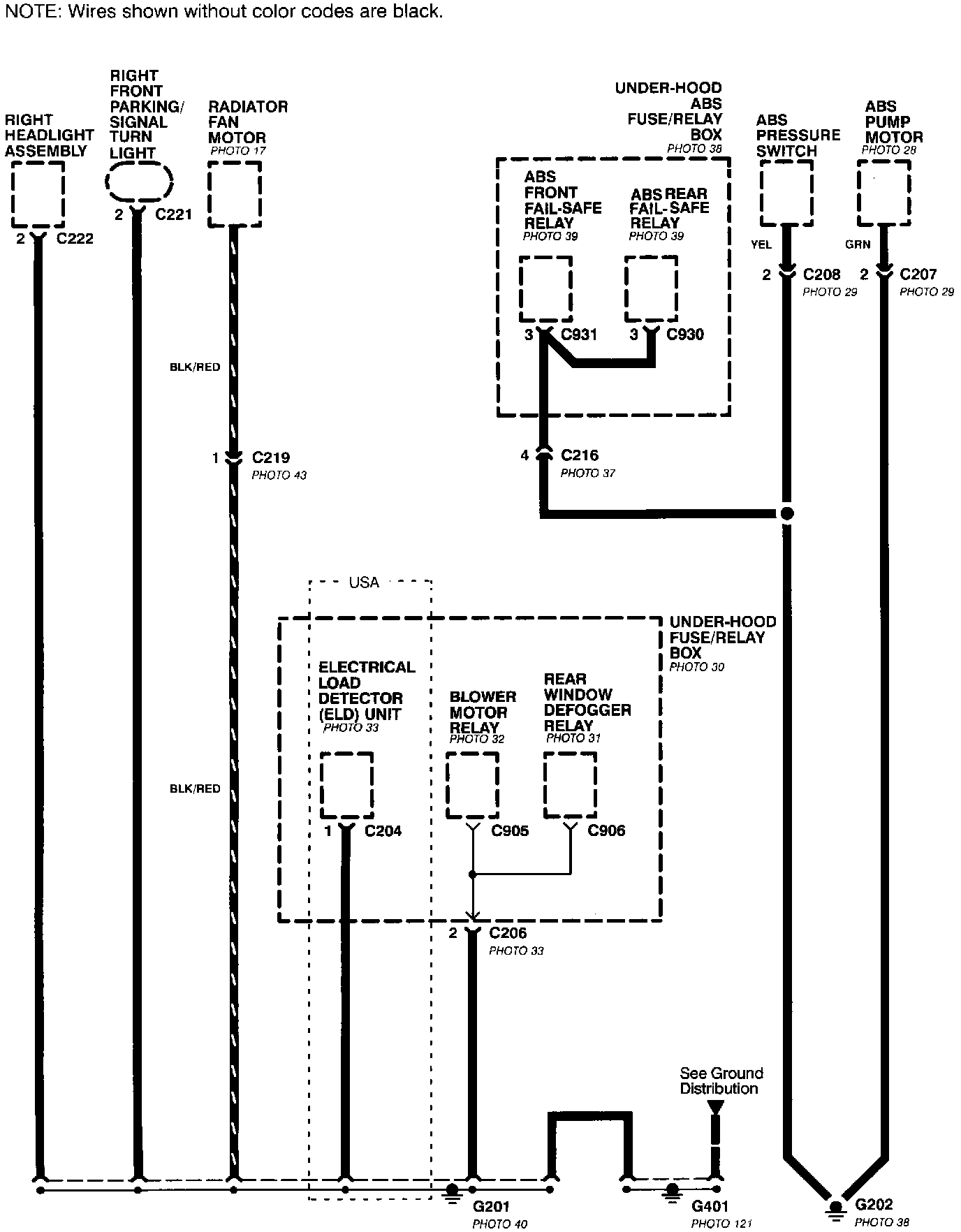

Ground Distribution- G201, G202:
