Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
1994
>>
Civic L4-1493cc 1.5L SOHC (8 valve)
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Engine Wire Harness
>>
(D15B8 Engine)
(D15B8 Engine)

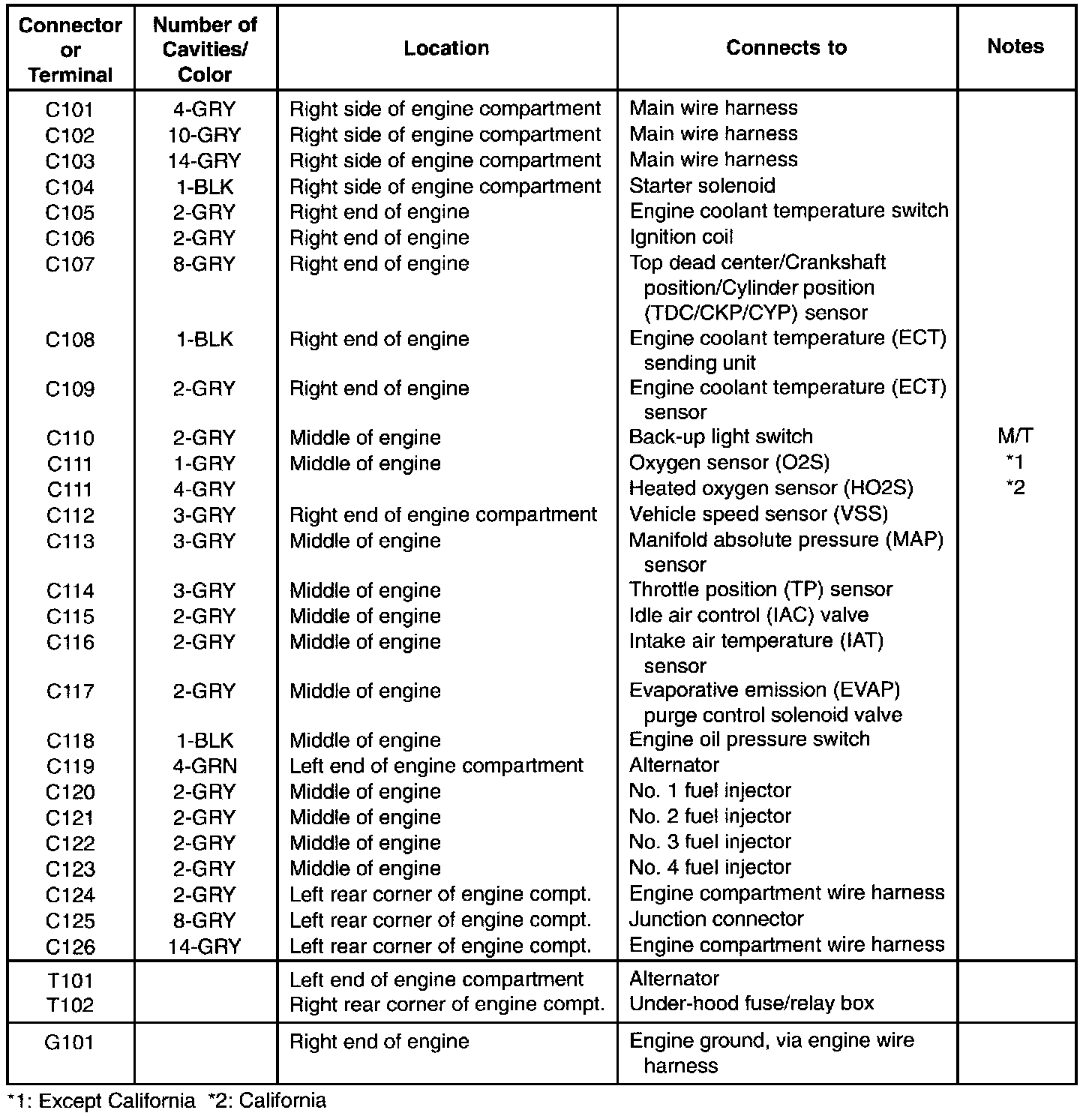

Engine Wire Harness:
Engine Wire Harness:
