Schematic and Routing
Schematic and Routing

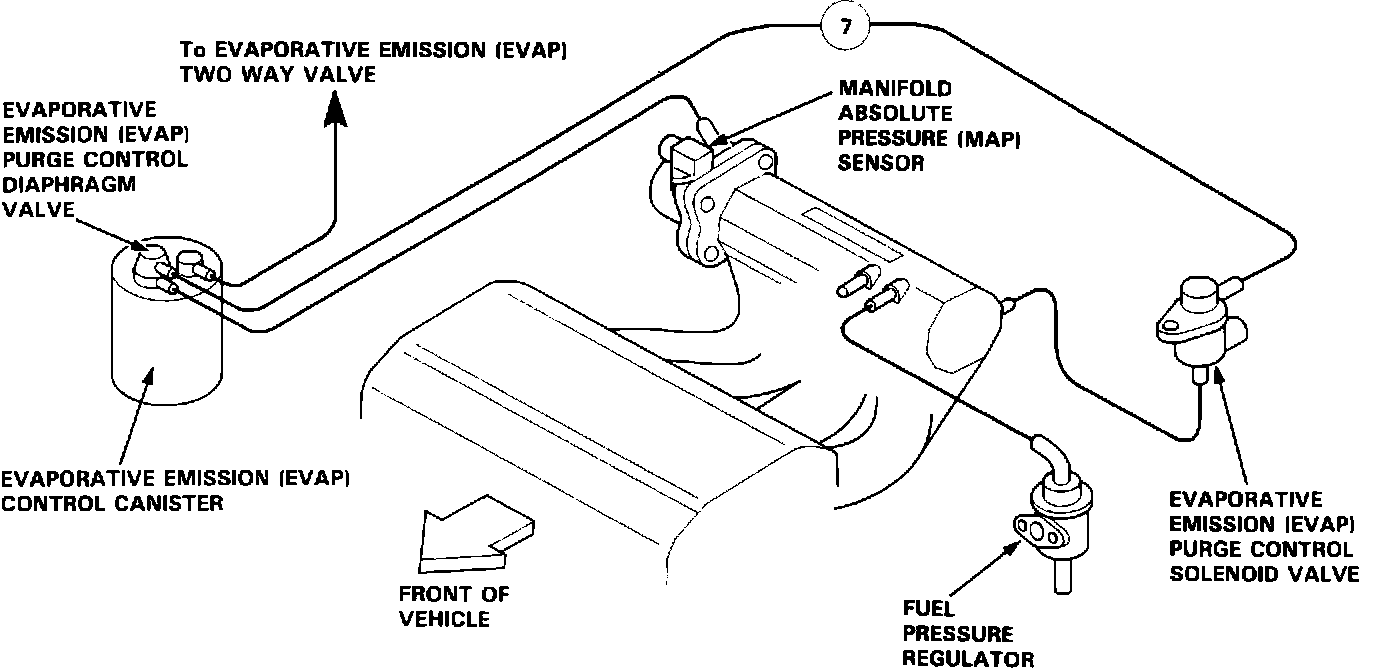

Engine Vacuum Connections:
ENGINE VACUUM HOSE ROUTING

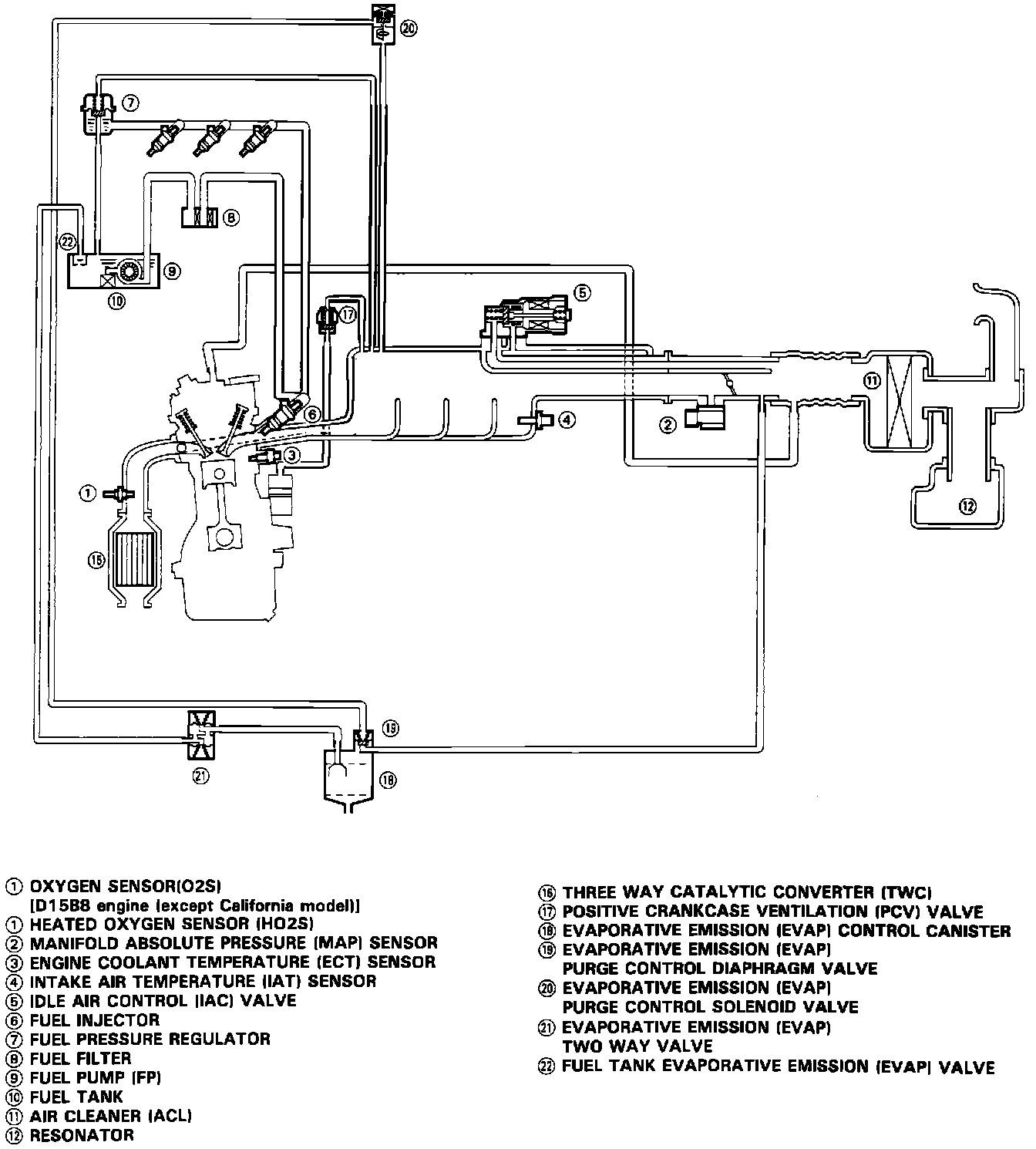

Schematic View Vacuum Connections:
COMPLETE VACUUM AND VAPOR HOSE SCHEMATIC
