Main Wire Harness (Right Side of Dash and Floor Branches)
Main Wire Harness (Right Side of Dash and Floor Branches)

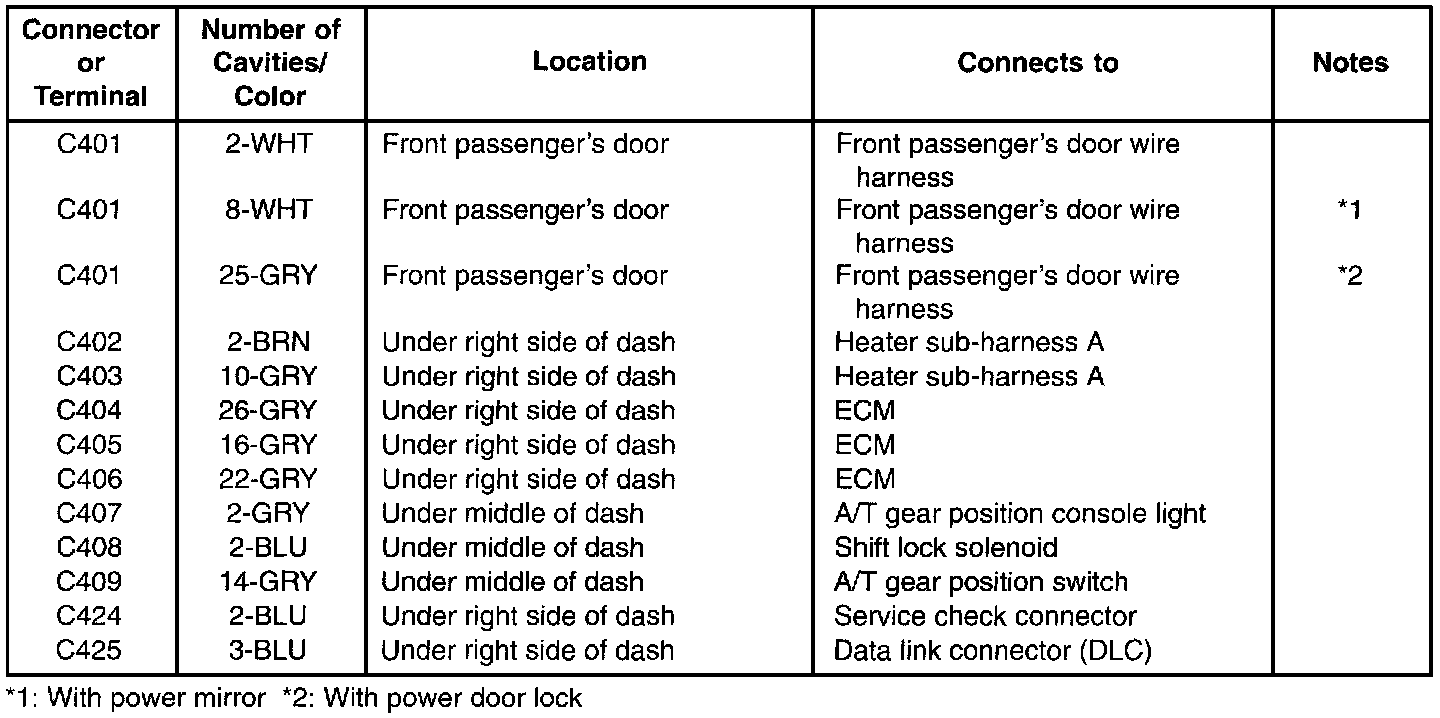

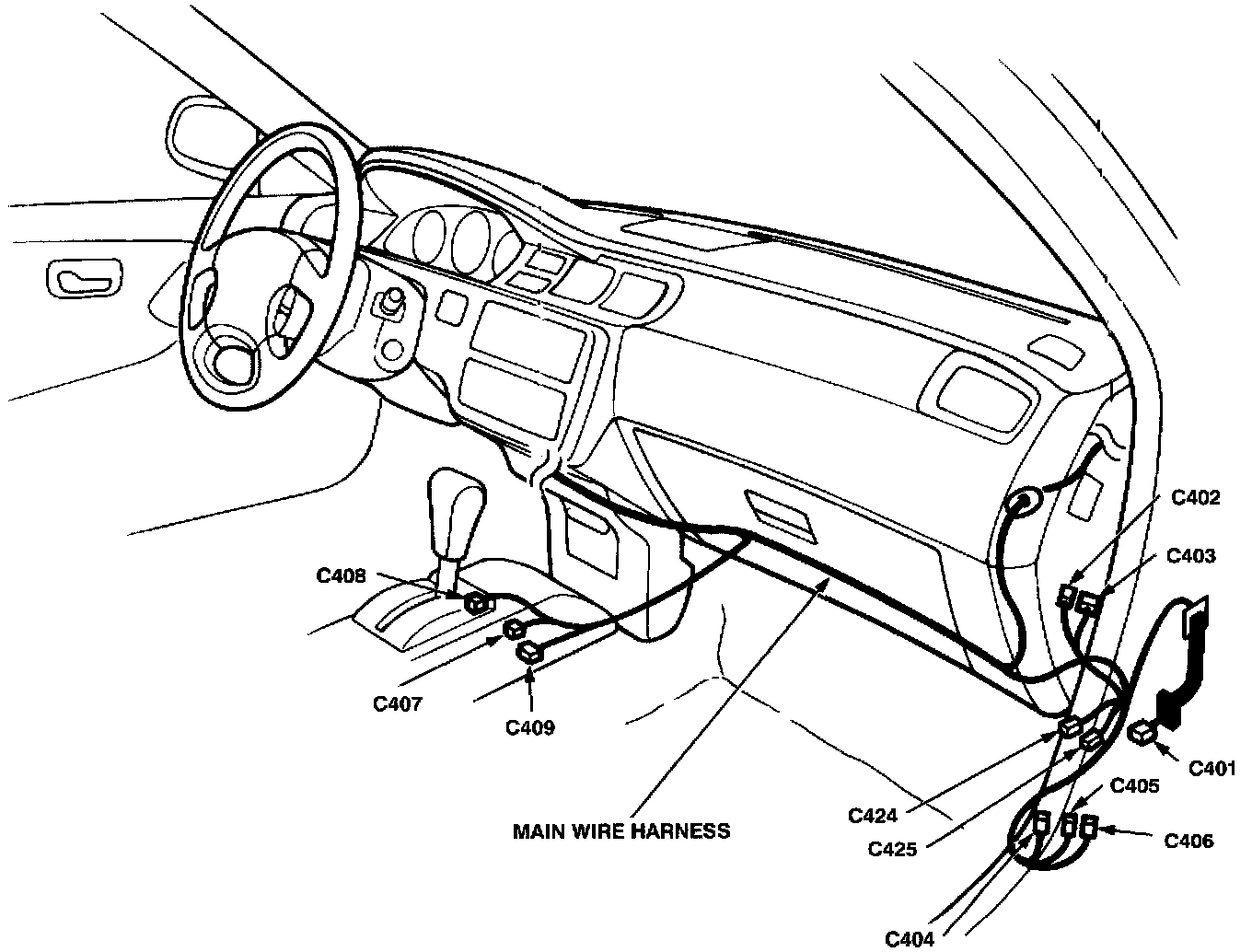

Main Wire Harness (Right Side Of Dash And Floor Branch):
Main Wire Harness (Right Side Of Dash And Floor Branch):
