Main Wire Harness, Left Side of Dash
Main Wire Harness, Left Side of Dash

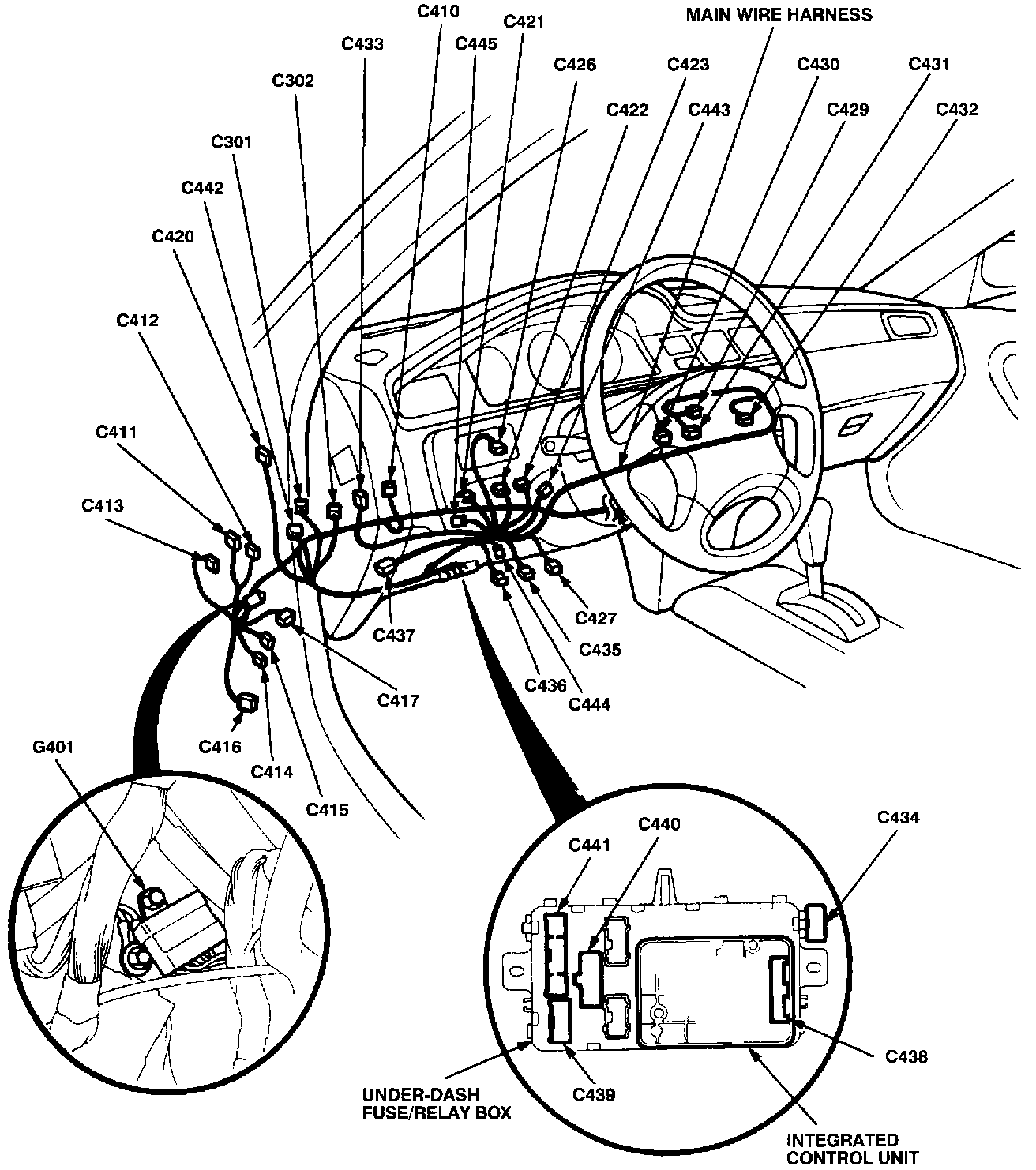

Main Wire Harness (Left Side Of Dash Branch):

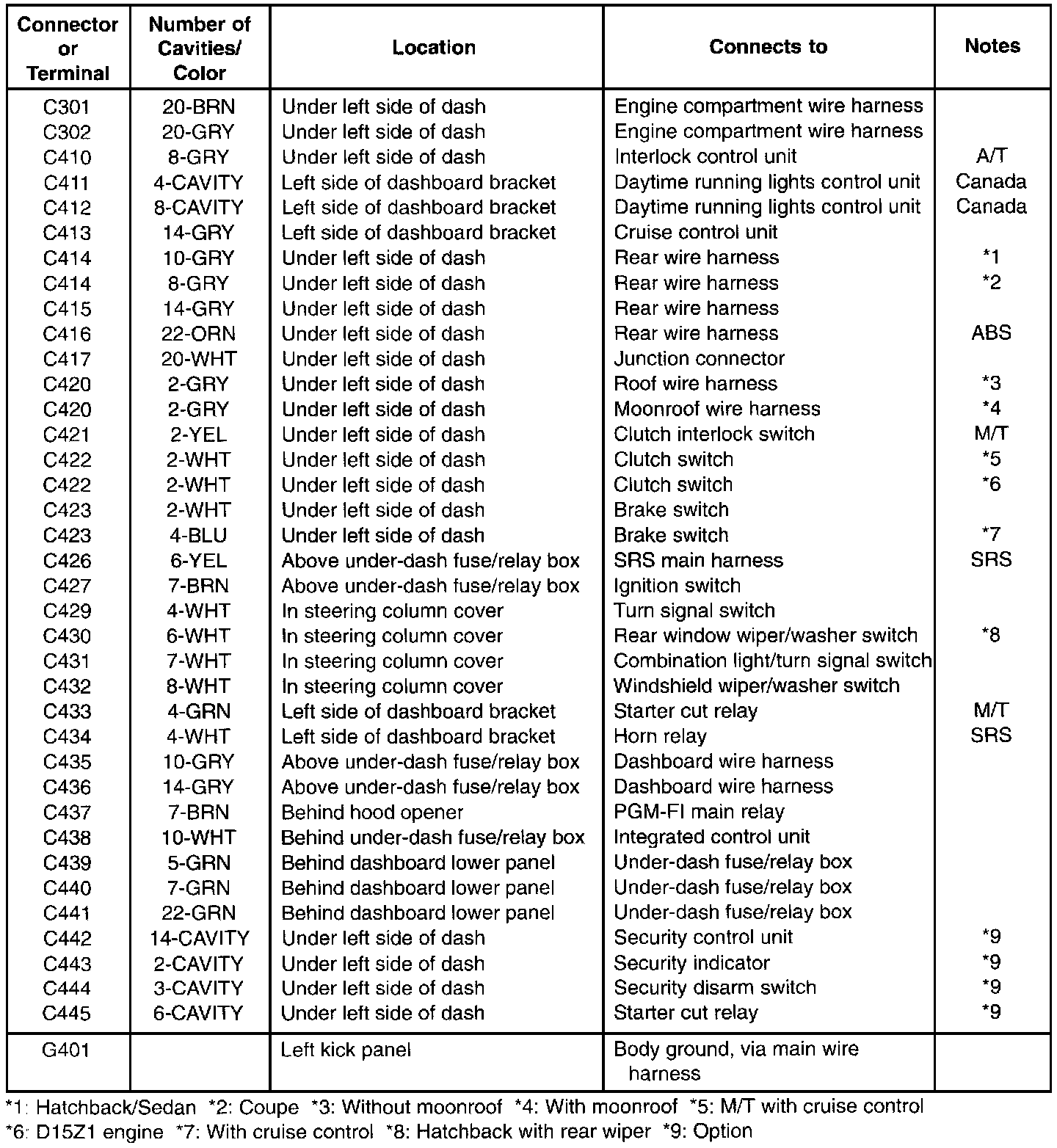

Main Wire Harness (Left Side Of Dash Branch):
