Right Rear Door Wire Harness

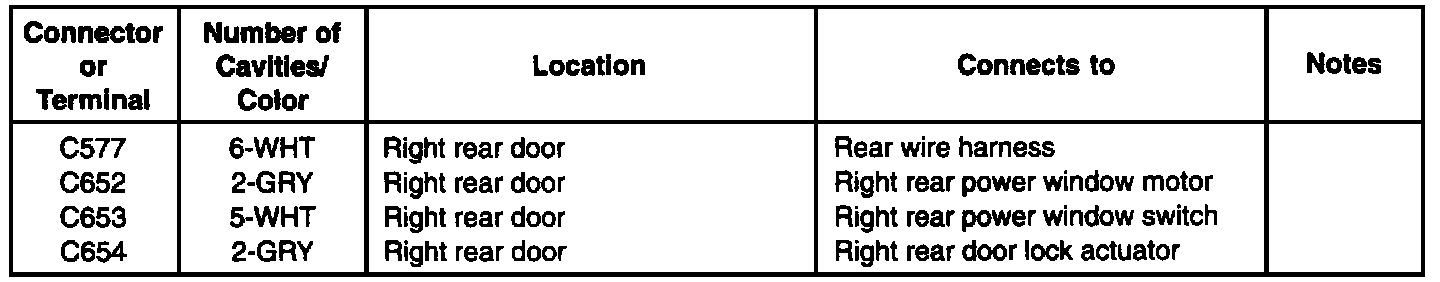

Right Rear Door Wire Harness (Sedan):

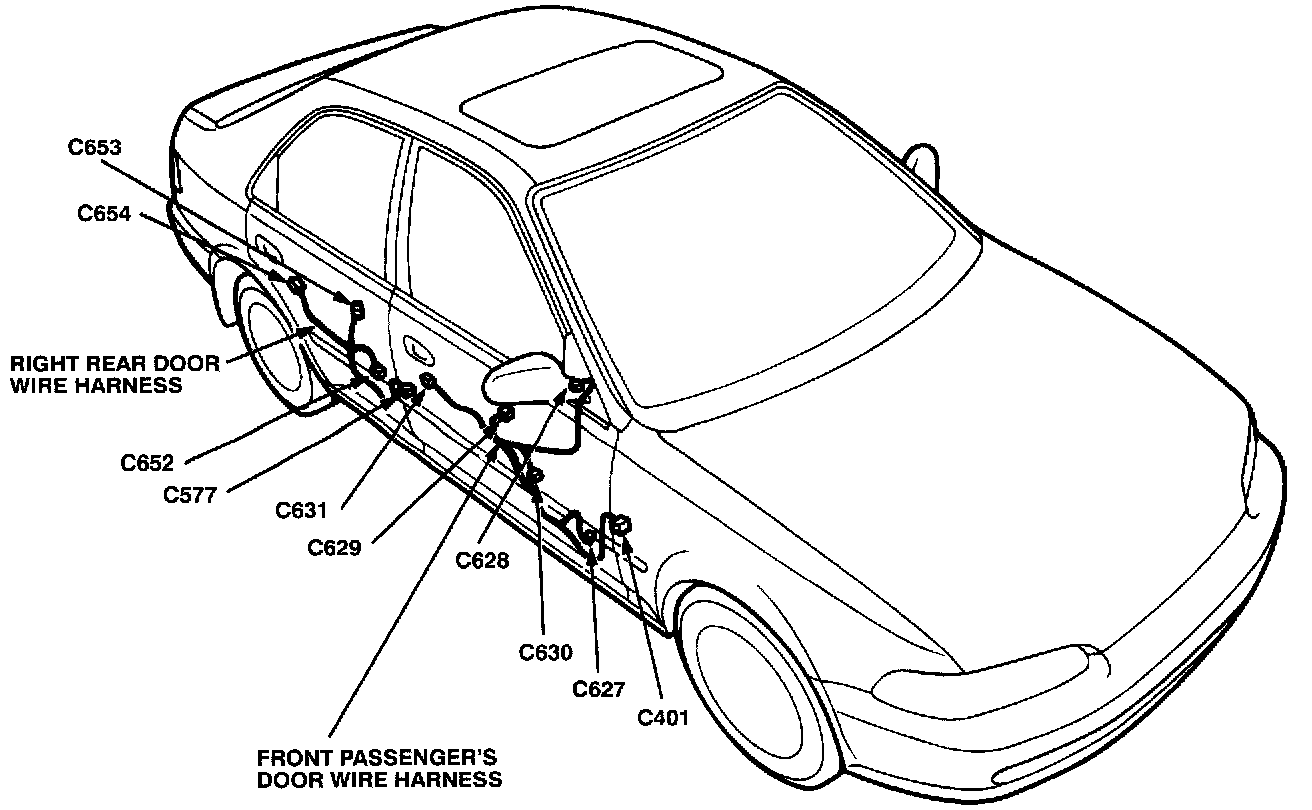

Right Rear Door And Front Passenger's Door Wire Harness:
