Interior - Gap In Headrest Support Cover

Bulletin No.
95-022

Issue Date
APRIL 17, 1995

Model
1994-95
CIVIC

Applicable To
See VEHICLES
AFFECTED

File Under
BODY

Gap in Headrest Support Cover

SYMPTOM

The gap between the front and back pieces of the headrest support cover is too large.

PROBABLE CAUSE

A clip on the rear cover piece is too long.





VEHICLES AFFECTED

CORRECTIVE ACTION

Replace the clip on the rear cover piece with the shorter Clip listed under PARTS INFORMATION.

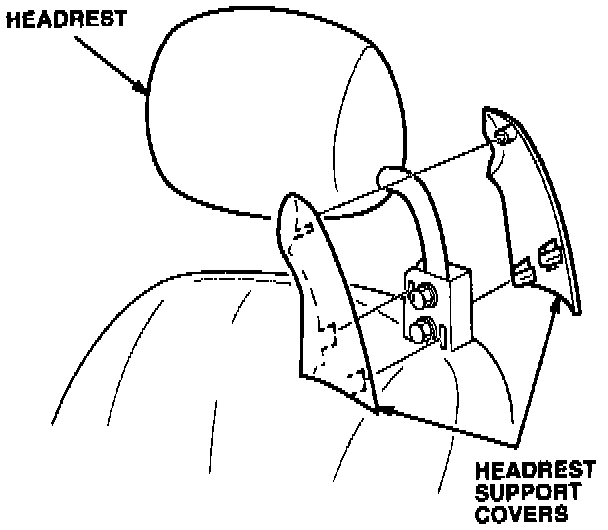

1. Remove the headrest support covers. Cover your prying tool with protective tape or a shop towel so you do not scratch the covers.

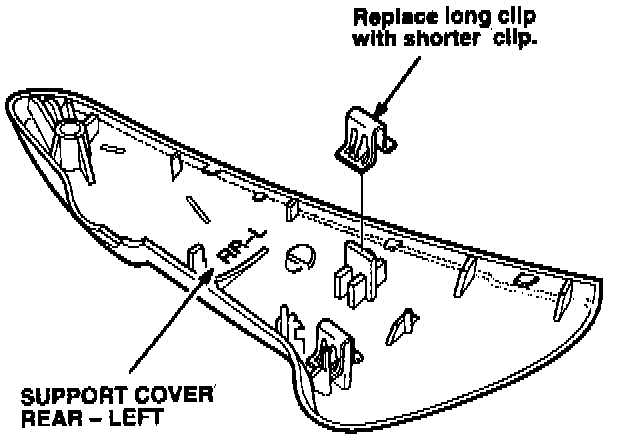

2. Remove the outer clip from the rear cover. The rear cover is marked RR.

3. Install the new Clip listed under PARTS INFORMATION.

4. Reinstall the support cover.

5. If necessary, repeat steps 1 through 4 on the other side.

PARTS INFORMATION

Outer clip:

P/N 90610-SR3-999, H/C 4751228

WARRANTY CLAIM INFORMATION

In warranty: The normal warranty applies.

Out of warranty: Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Service Manager or your Zone Office. You must request consideration, and get a decision, before starting work.

Operation number: 860301

Flat rate time: 0.3 hour for both sides

Failed part: P/N 90609-SG0-003, H/C 2601466

Defect code: 074

Contention code: B01
