Interior - Holes In Floor Carpet

Bulletin No.
93-040

Model
1992 - 94
CIVIC

Applicable To
See VEHICLES
AFFECTED

File Under
BODY

Issue Date
OCT 15, 1993

Holes in Floor Carpet

SYMPTOM
The carpet tears at the left foot well area.

PROBABLE CAUSE

The carpet is not supported under the left corner.

VEHICLES AFFECTED

1992 Civics - All

1993 Civics
^ Suzuka production - All VIN JHM...

^ East Liberty production
2-Door: thru VIN 1HGEJ .... PL034877
4-Door: thru VIN 1HGEG8 ... PL035609

^ Canada production
2-Door: thru VIN 2HGEJ .... PH509966
3-Door: thru VIN 2HGEH .... PH528456

1994 Civics - Suzuka production only
4-Door: thru VIN JHMEG8 ... RS000371
and
thru VIN JHMEH9 ... RS000416

PARTS INFORMATION

Side Sill Cushion:
P/N 83304-SR3-000, H/C 4425435

Floor Mat Cushion:
P/N 83303-SR3-000, H/C 4425427

WARRANTY CLAIM INFORMATION

In warranty:
The normal warranty applies.

Out of warranty:
Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Service Manager or your Zone Office. You must request consideration, and get a decision, before starting work.

Operation number: 847100
Flat rate time: 1.5 hours carpet replacement
Failed part: P/N 83302-SR3-A00ZA H/C 3847738
Defect code: 021
Contention code: A99

CORRECTIVE ACTION

Install the two cushions listed under PARTS INFORMATION before replacing the carpet.

1. Remove the old carpet. Refer to section 20 of the appropriate service manual.

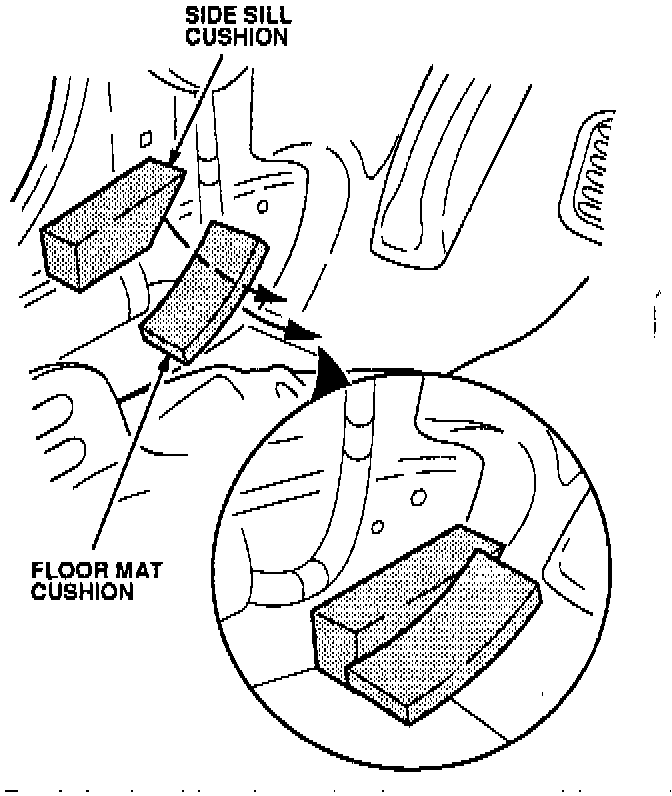

2. Peel the backing from the side sill cushion. Install the cushion on the floor against the side sill.

3. Peel the backing from the floor mat cushion, and install it next to the side sill cushion.

4. Install the new carpet.
