Specifications
>>
Torque Specifications
Torque Specifications
Intake:
Exhaust Manifold:

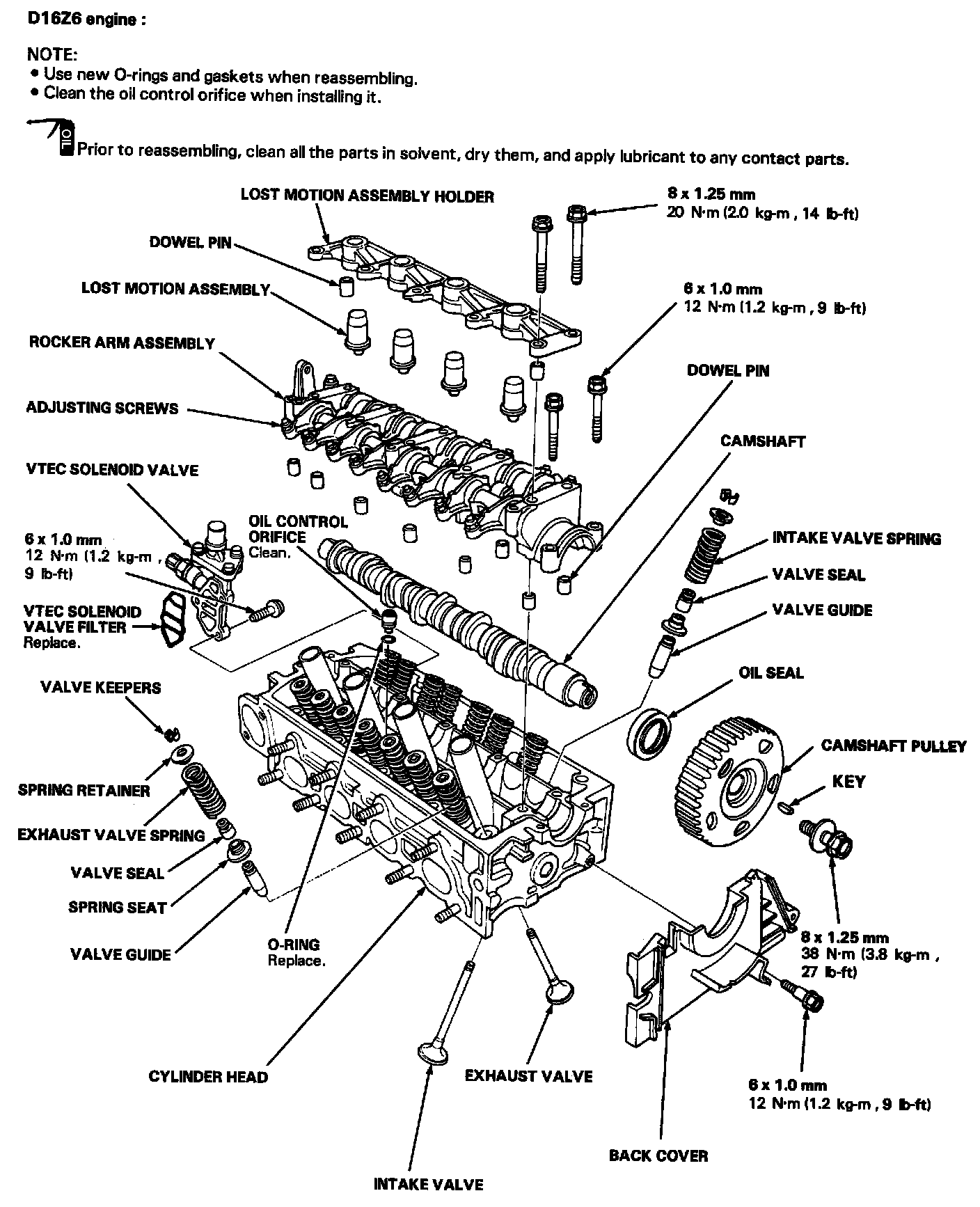

Cam Holder Torque/Sequence:
Torque cylinder head attaching bolts in sequence in two steps; first to
22 ft. lbs.
, then to
53 ft lbs.
Timing Components:
Lower Engine:
Main Bolt Loosening Sequence:
Main Bolt Torque Tightening Sequence:
Flywheel (M/T) Torque:
Drive Plate (A/T) Torque:
