Schematic and Routing
Schematic and Routing
Engine Vacuum Connections:
ENGINE VACUUM HOSE ROUTING

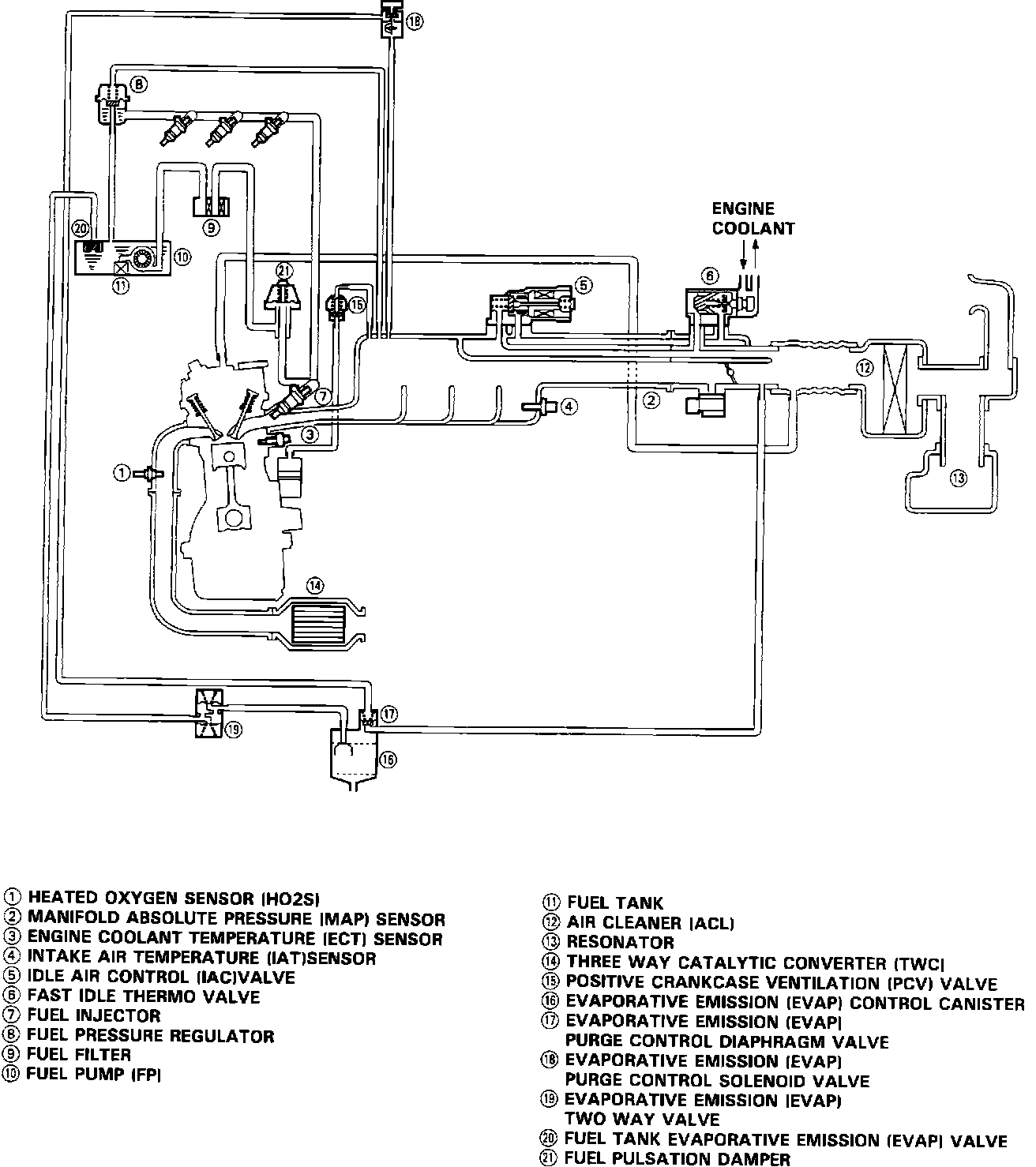

Schematic View Vacuum Connections:
COMPLETE VACUUM HOSE SCHEMATIC
