Home >> Honda >> 1994 >> Civic L4-1590cc 1.6L SOHC (VTEC) MFI >> Repair and Diagnosis >> Powertrain Management >> Locations >> Connector Locations >> Dash and Floor

Dash and Floor

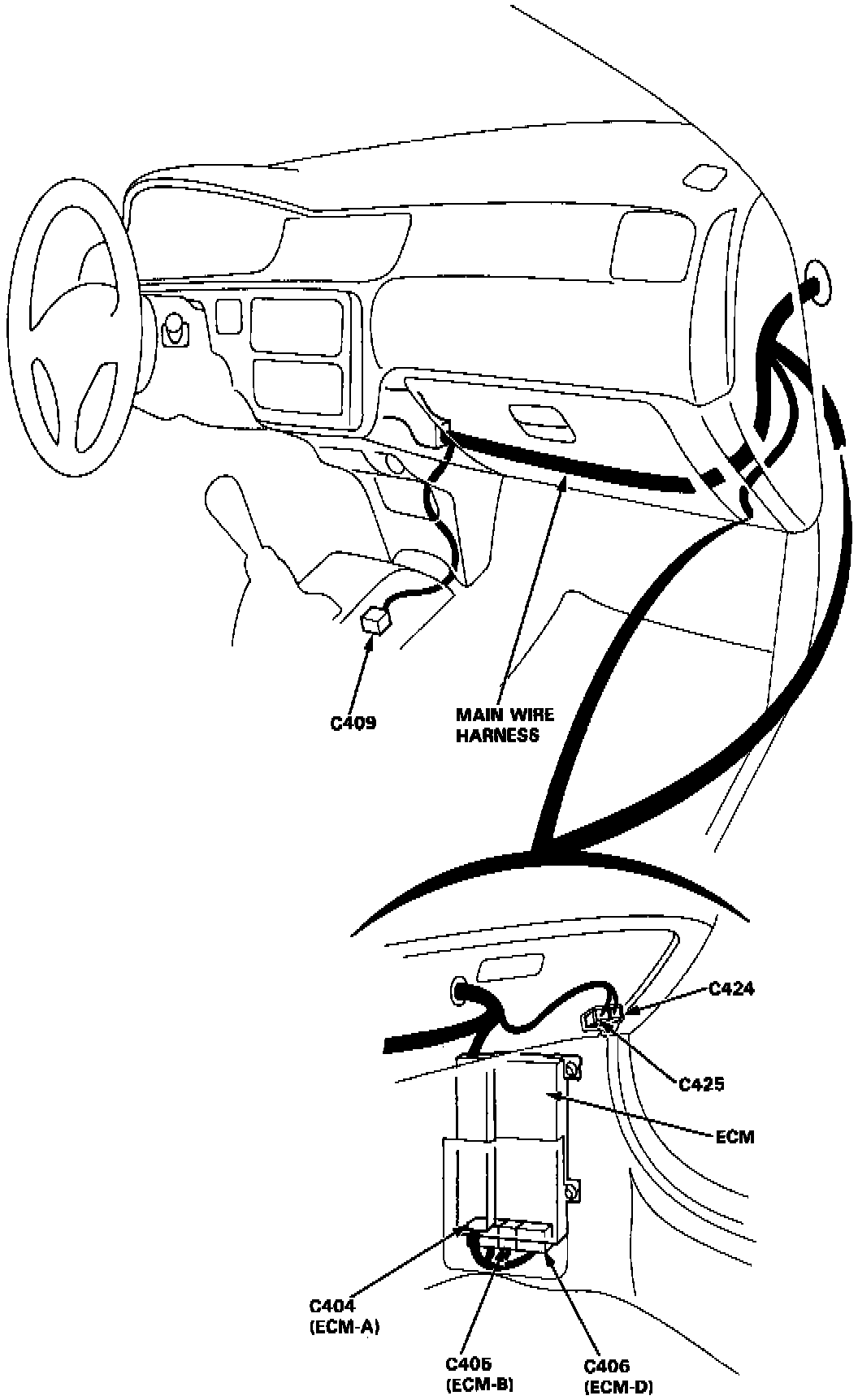

Connector Locations (Dash And Floor):



Connector Locations (Dash And Floor):
