Electrical Diagrams

Anti-lock Brake System (ABS)- Brake Switch, Indicator, And Wheel Speed Sensor Inputs:

Anti-lock Brake System (ABS)- Power And Parking Brake Inputs:

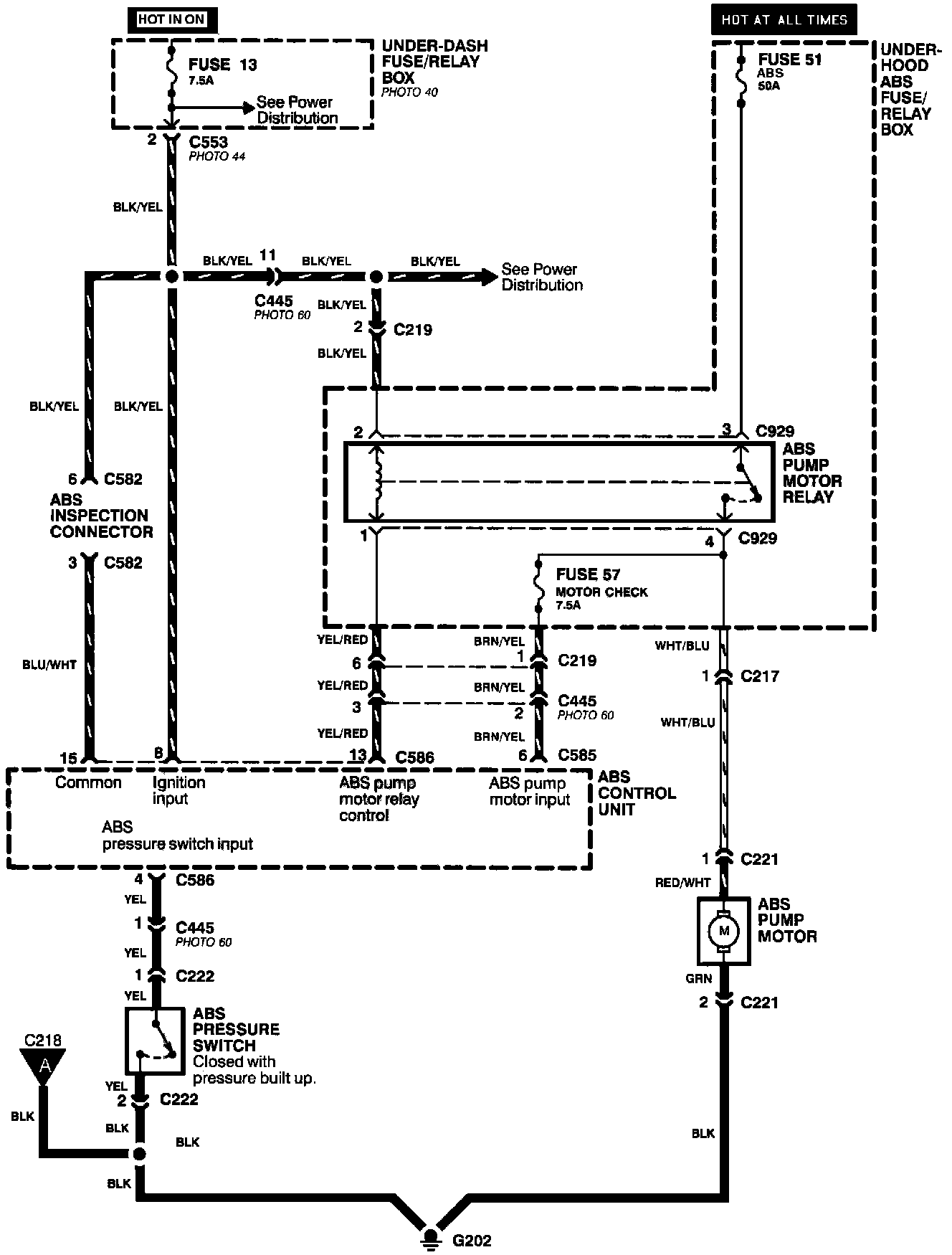

Anti-lock Brake System (ABS)- Motor And Pressure Switch:

Anti-lock Brake System (ABS)- Fail-Safe Relays And Modulator Unit:
