Home >> Honda >> 1994 >> Del Sol L4-1.5L SOHC >> Repair and Diagnosis >> Diagrams >> Harness >> Engine Ground Cable A >> B

B

Engine Ground Wire B:

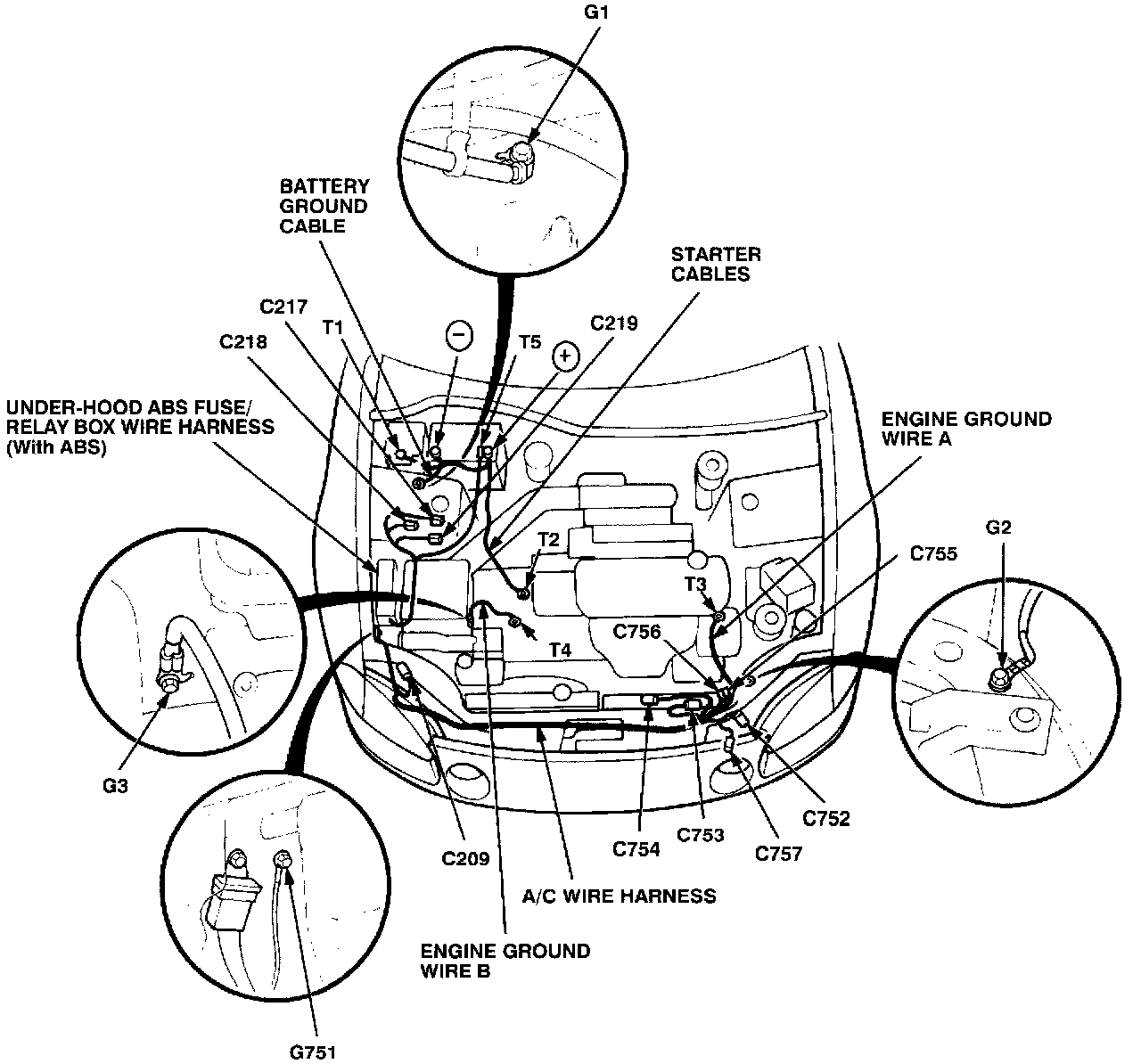

Wire Harness Routing:
