Torque Specifications

Intake:

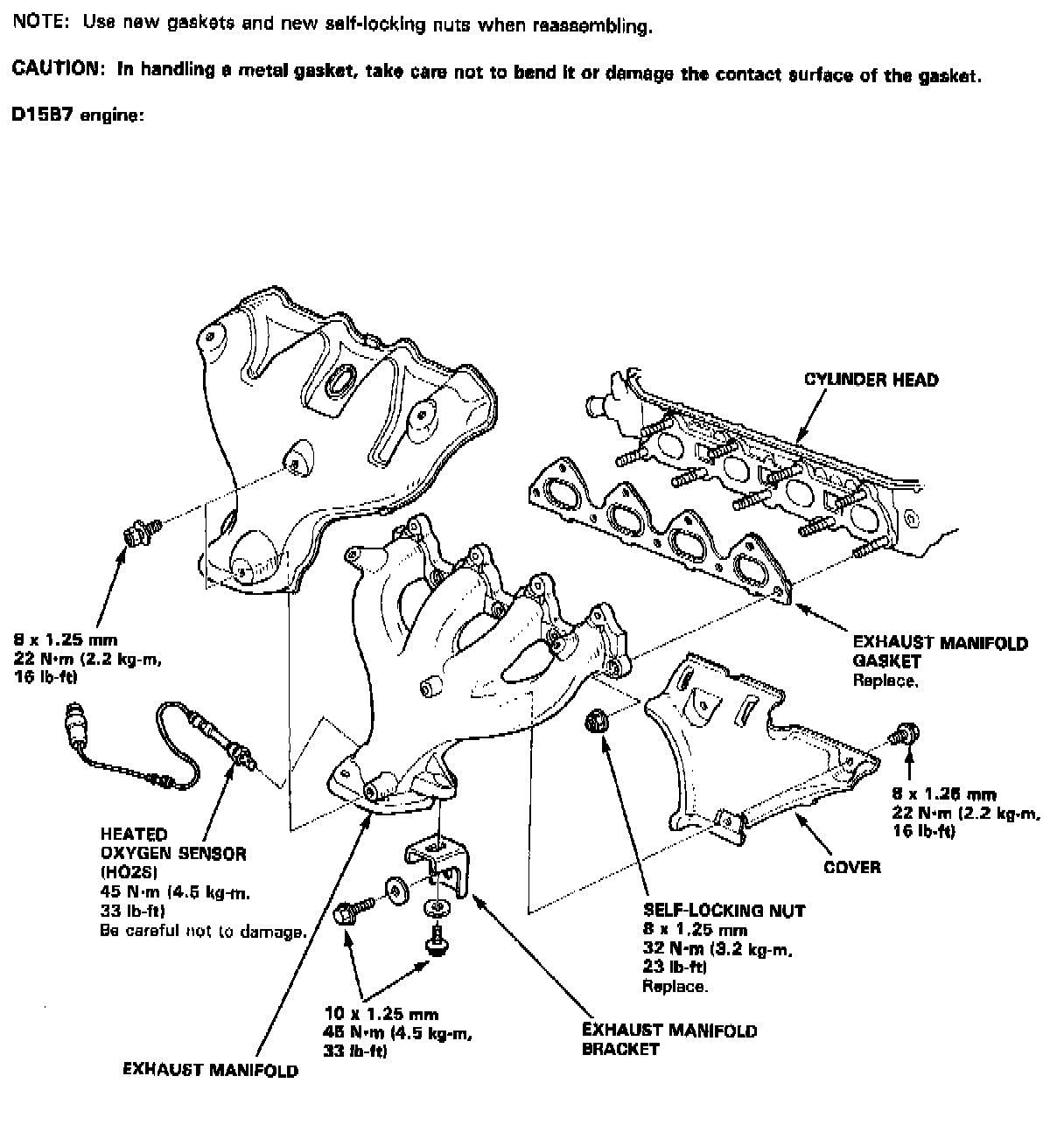

Exhaust Manifold:

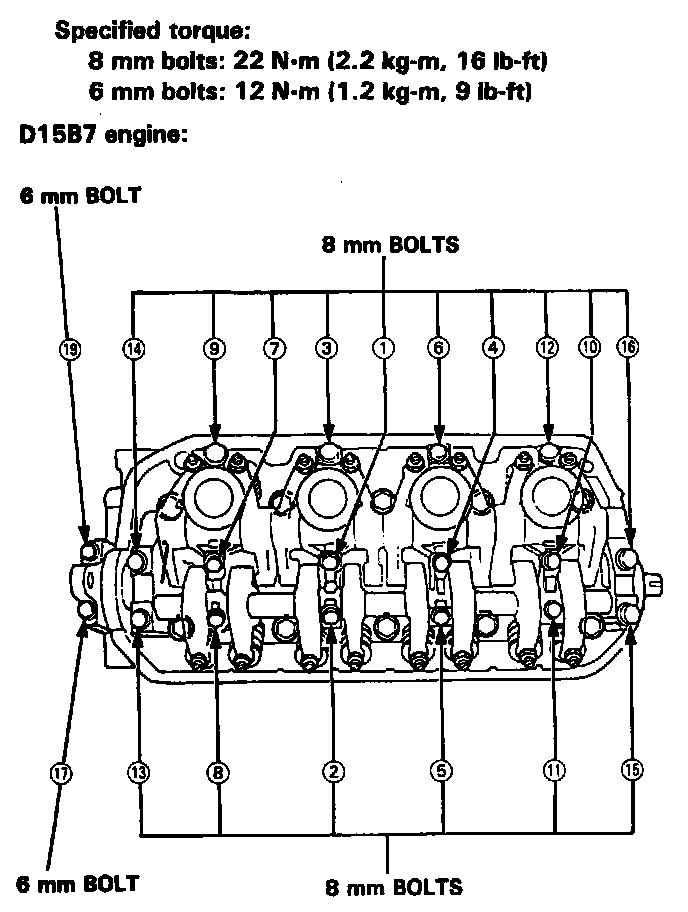

Cam Holder Torque/Sequence:

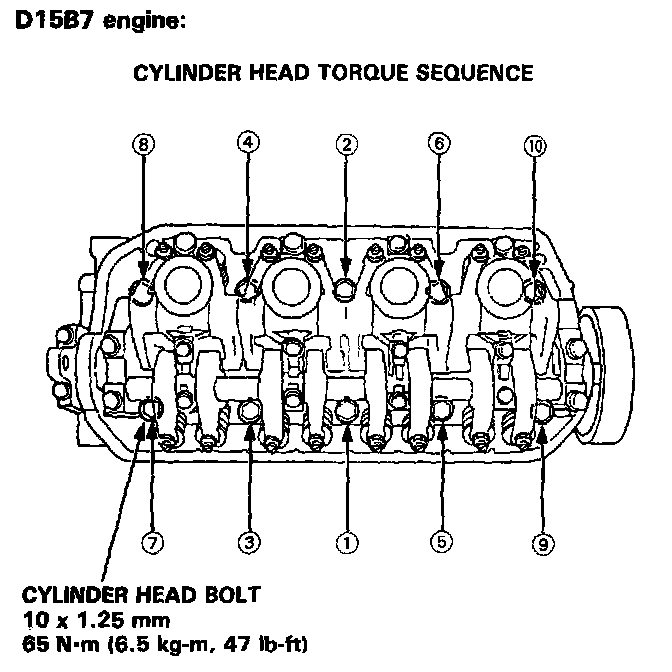

Head Bolt Torque Sequence:

Cylinder Head Torque has been revised as follows per TSB 97-047.

Step 1: Tighten all 10 bolts to 20 N.m (14 lb.ft.)
Step 2: Tighten all 10 bolts to 49 N.m (36 lb.ft.)
Step 3: Tighten all 10 bolts to 67 N.m (49 lb.ft.)
Step 4: Tighten bolts 1 and 2 to 67 N.m (49 lb.ft.)

Timing Components:

Lower Engine:

Main Bolt Torque Sequence:

Flywheel (M/T) Torque:

Drive Plate (A/T) Torque:
