Wiring Schematic

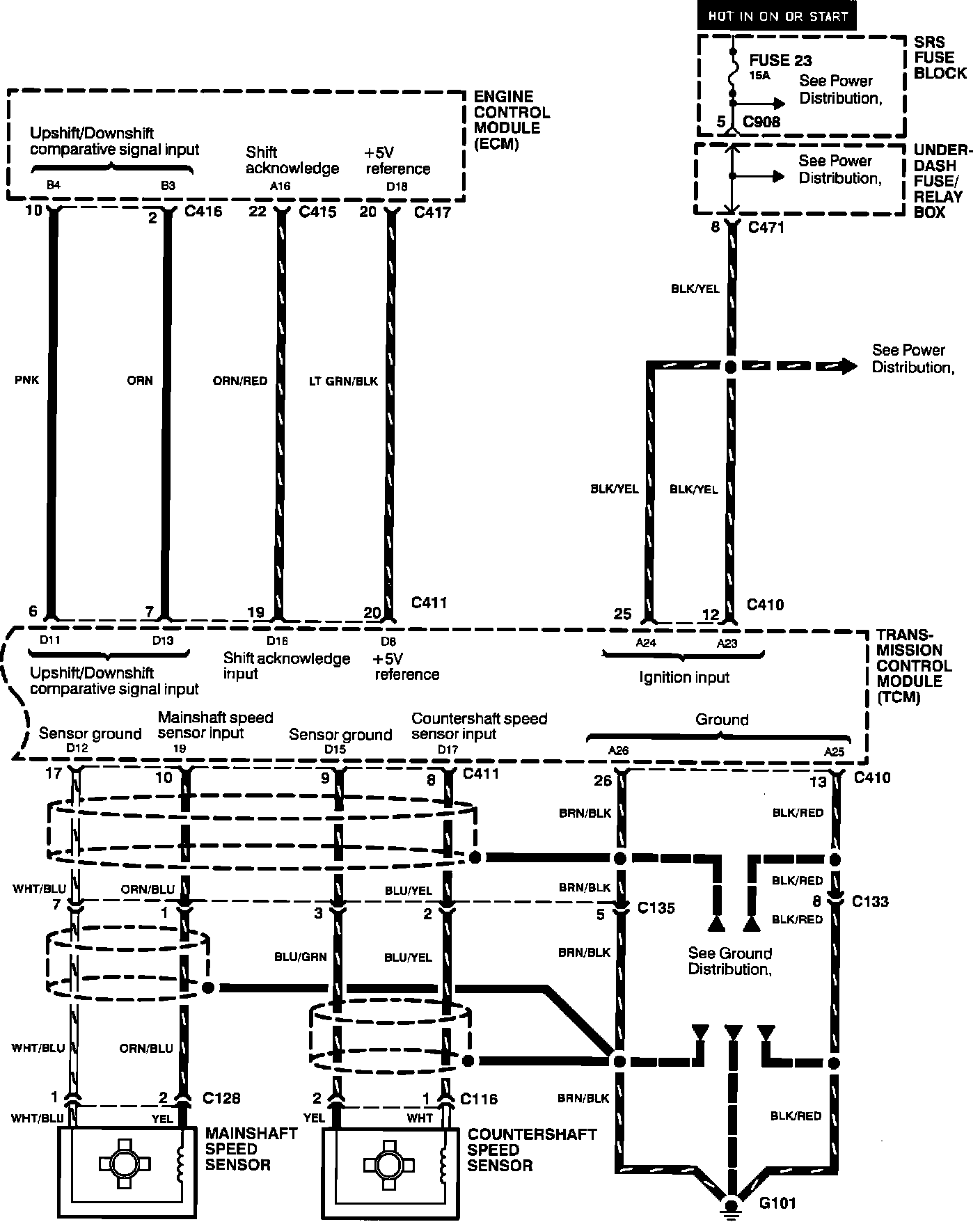

Automatic Transmission Controls:

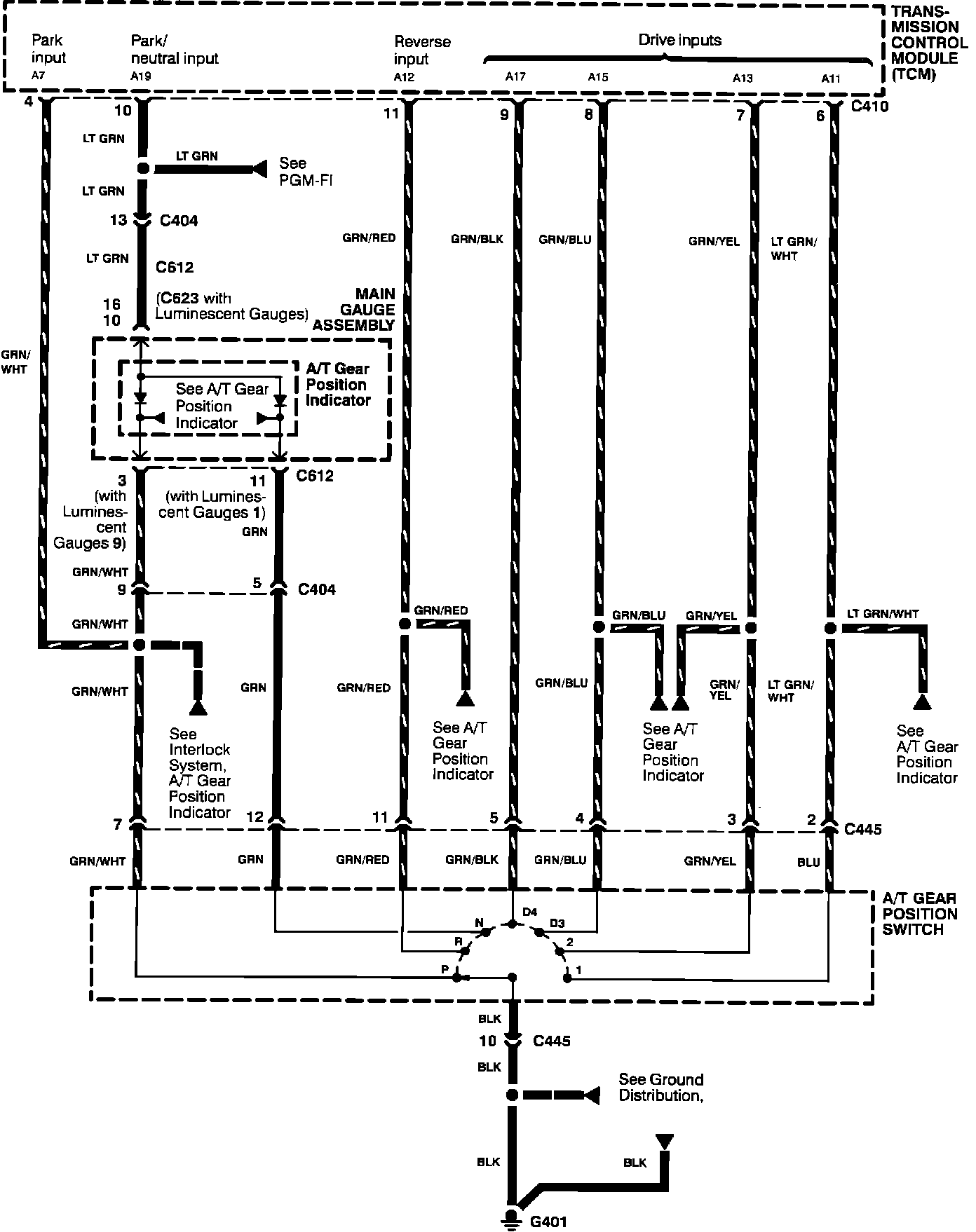

Automatic Transmission Controls:

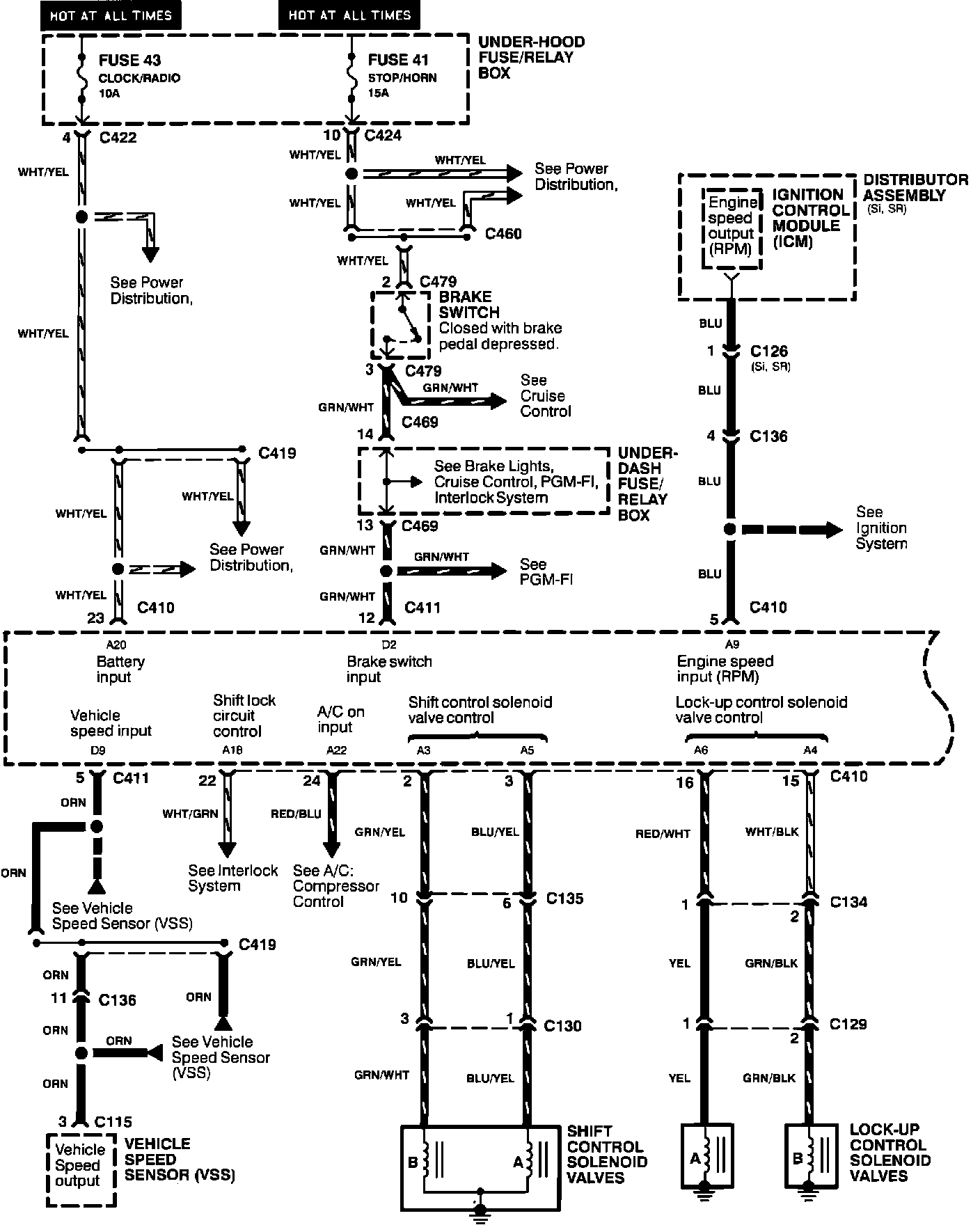

Automatic Transmission Controls:



Automatic Transmission Controls:
