Fuel Unit Wire Harness
Fuel Unit Wire Harness

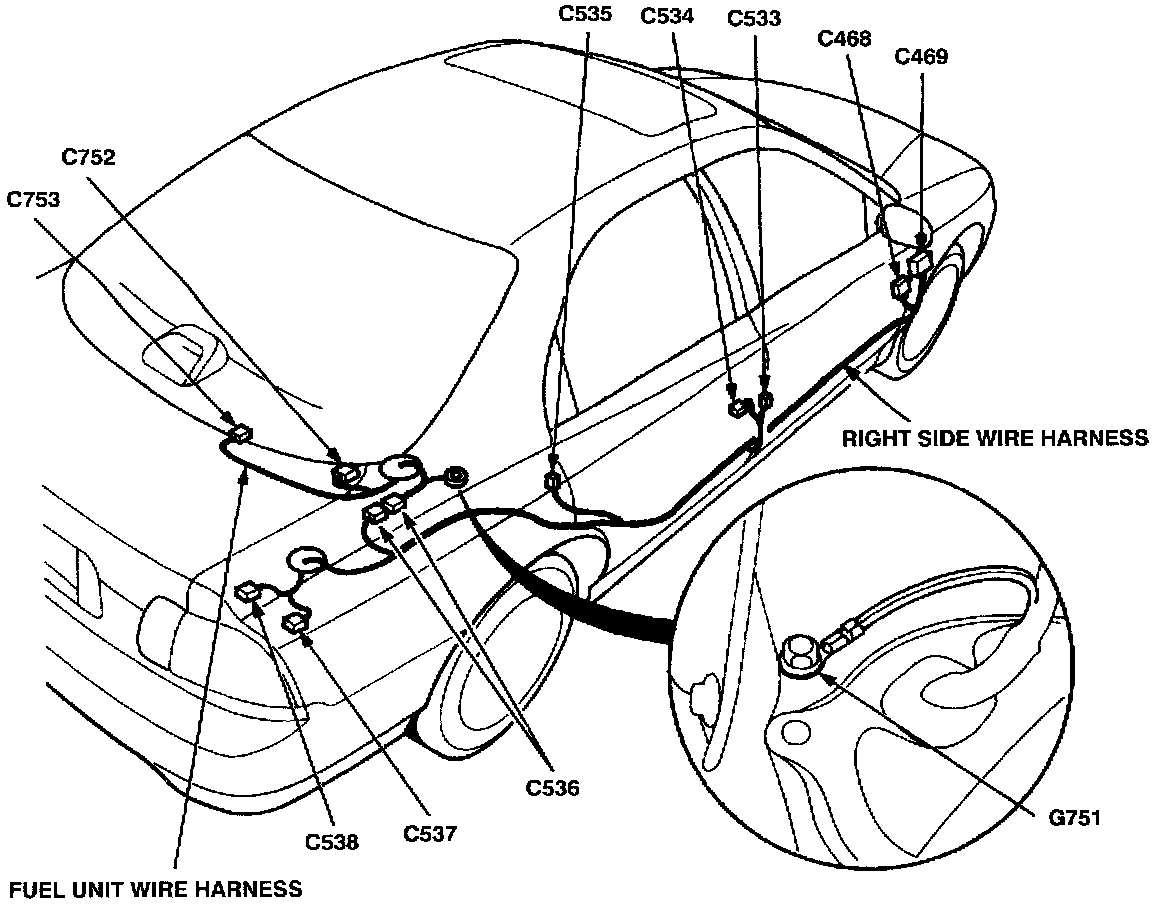

Fuel Unit Wire Harness:

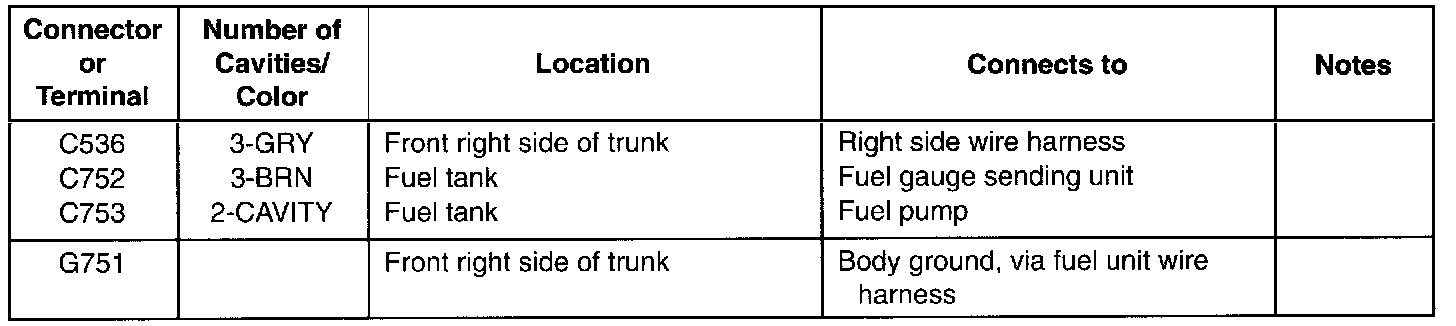

Right Side Wire Harness And Fuel Unit Wire Harness:
