Starting System: Locations

Dashboard (Part 2 Of 3):






Component Location Index:

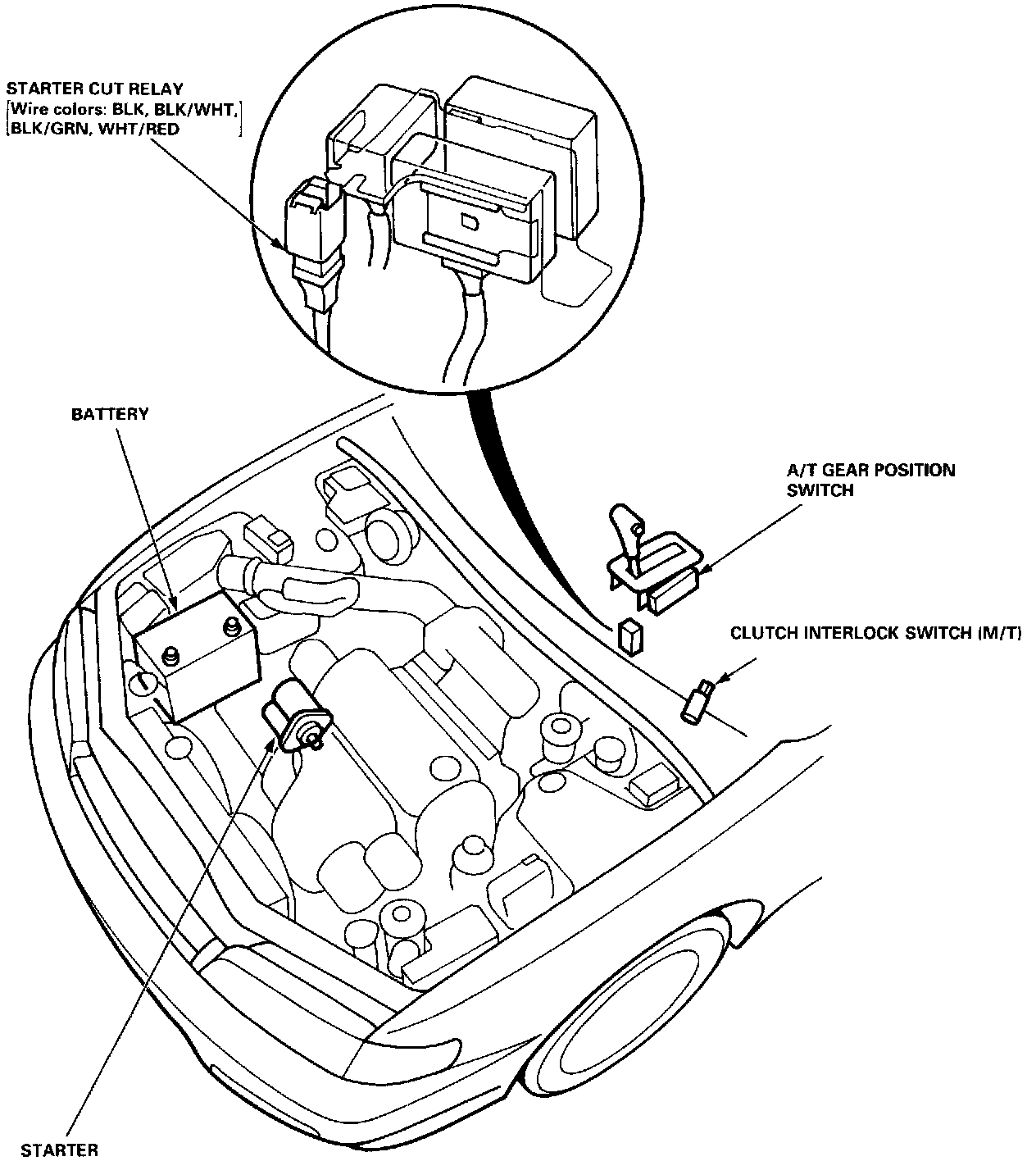

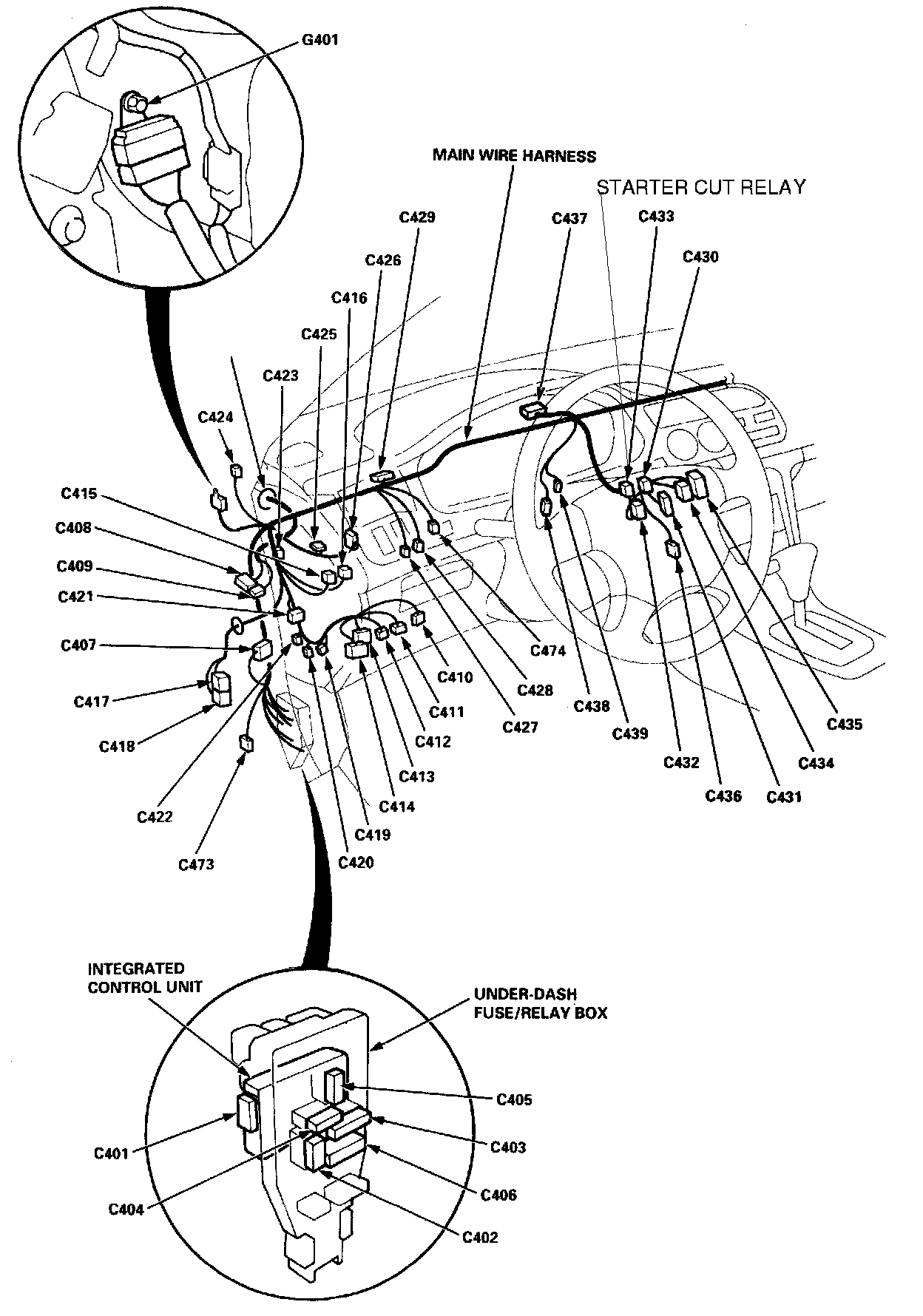

STARTER CUT RELAY,UNDER LEFT SIDE OF DASH
