Home
>>
Honda
>>
1996
>>
Accord Coupe L4-2.2L SOHC VTEC
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Relays
>>
Under-Dash Fuse/Relay Box
Under-Dash Fuse/Relay Box
Left Kick Panel

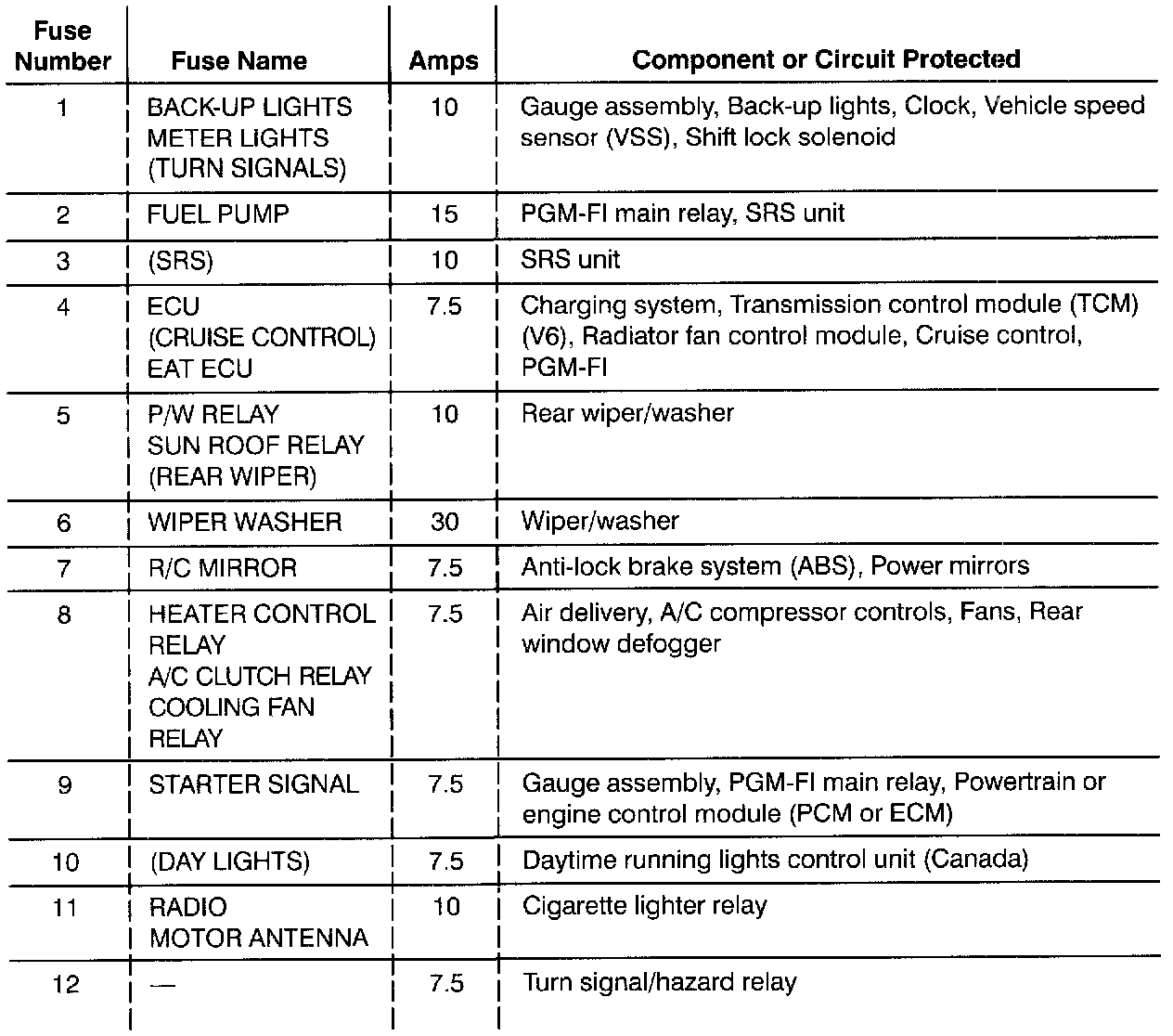

Fuse/Relay Information - Under-dash Fuse/Relay Box (Part 1 Of 2):
Fuse/Relay Information - Under-dash Fuse/Relay Box (Part 2 Of 2):
