With Keyless Entry

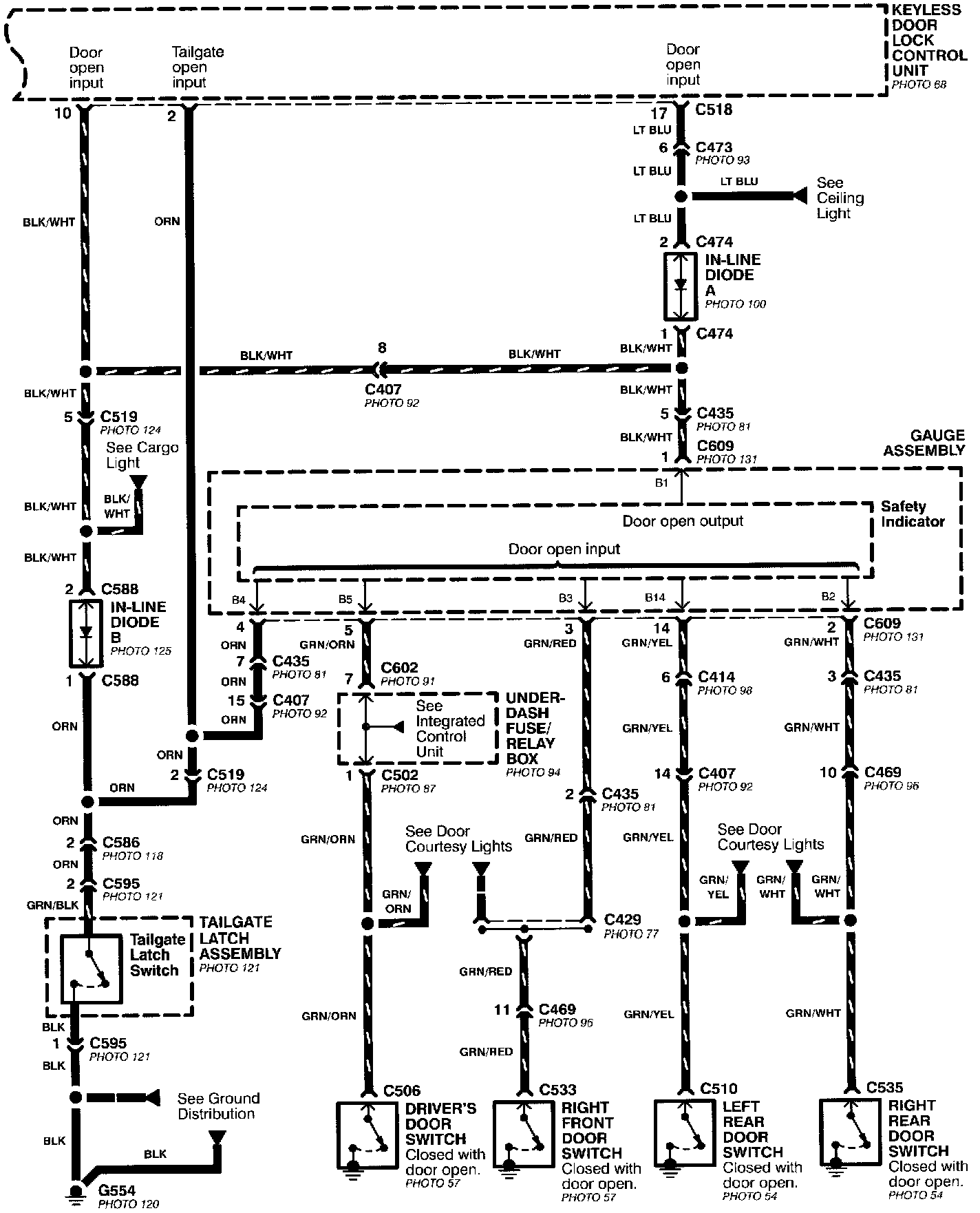

Power Door Locks - With Keyless Entry (Part 1 Of 4):

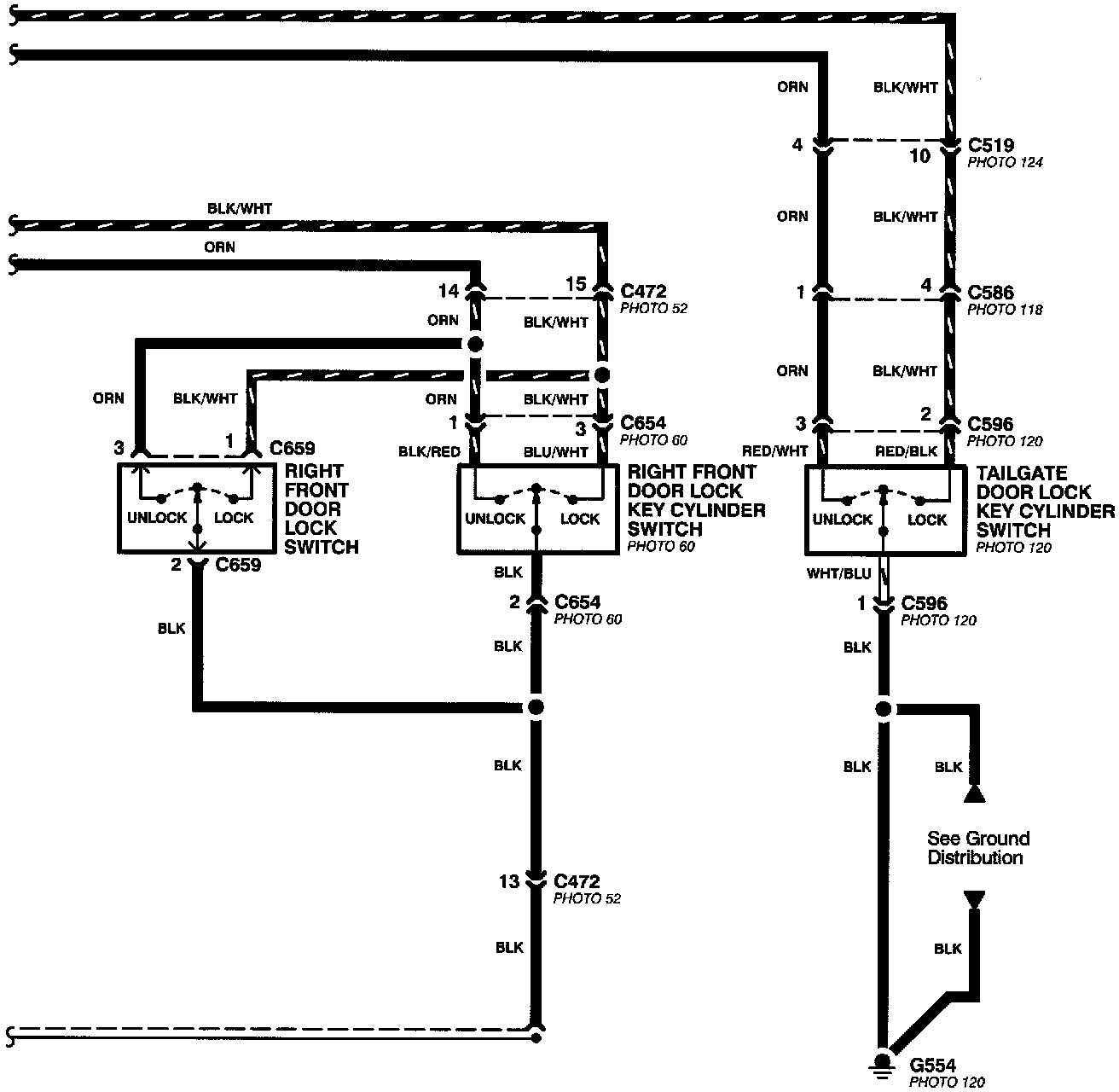

Power Door Locks - With Keyless Entry (Part 2 Of 4):




Power Door Locks - With Keyless Entry (Part 3 Of 4):




Power Door Locks - With Keyless Entry (Part 4 Of 4):
