Home
>>
Honda
>>
1996
>>
Accord Coupe L4-2.2L SOHC VTEC
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Fans and Compressor Controls
Fans and Compressor Controls

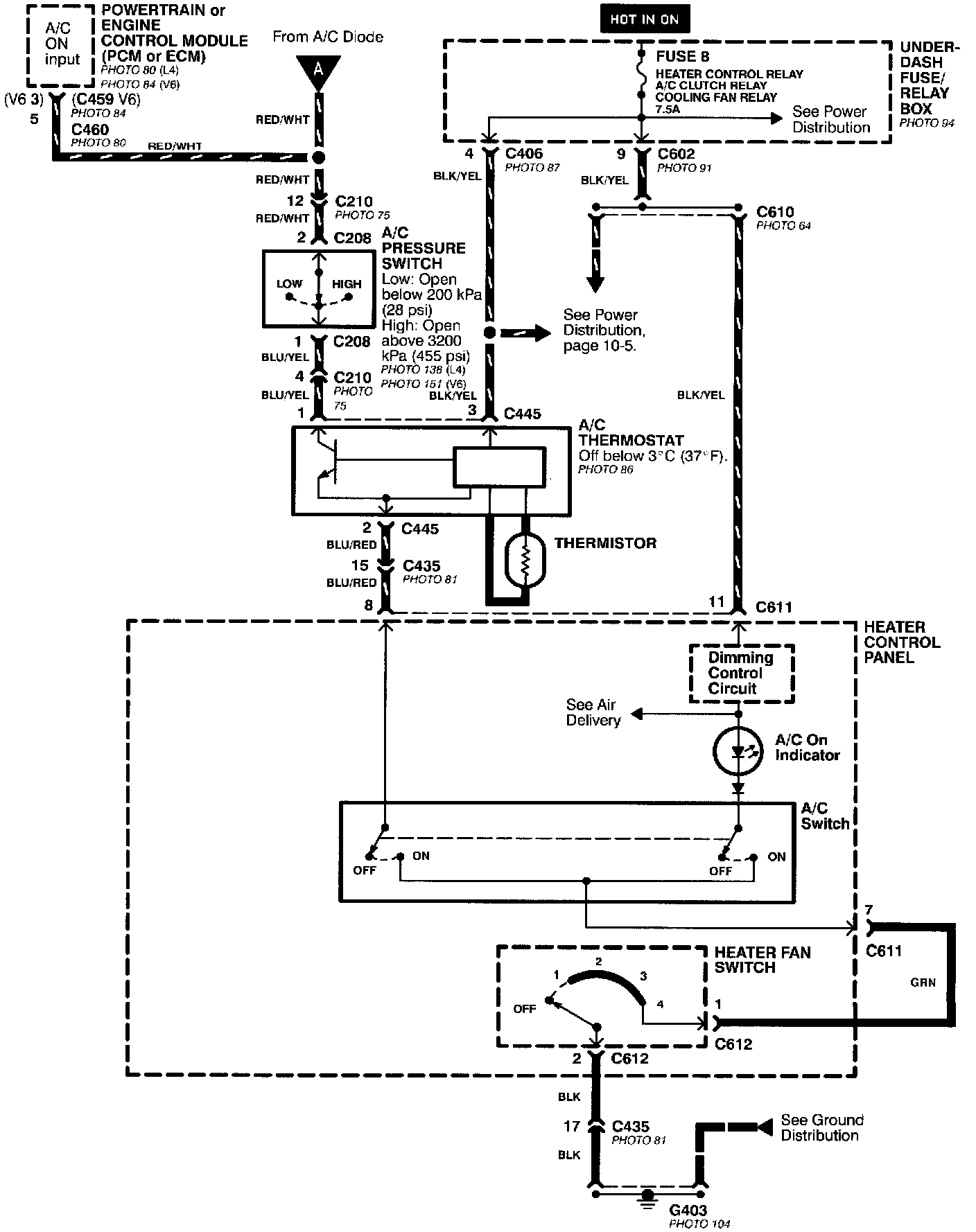

Fans - With A/C (Part 1 Of 3):

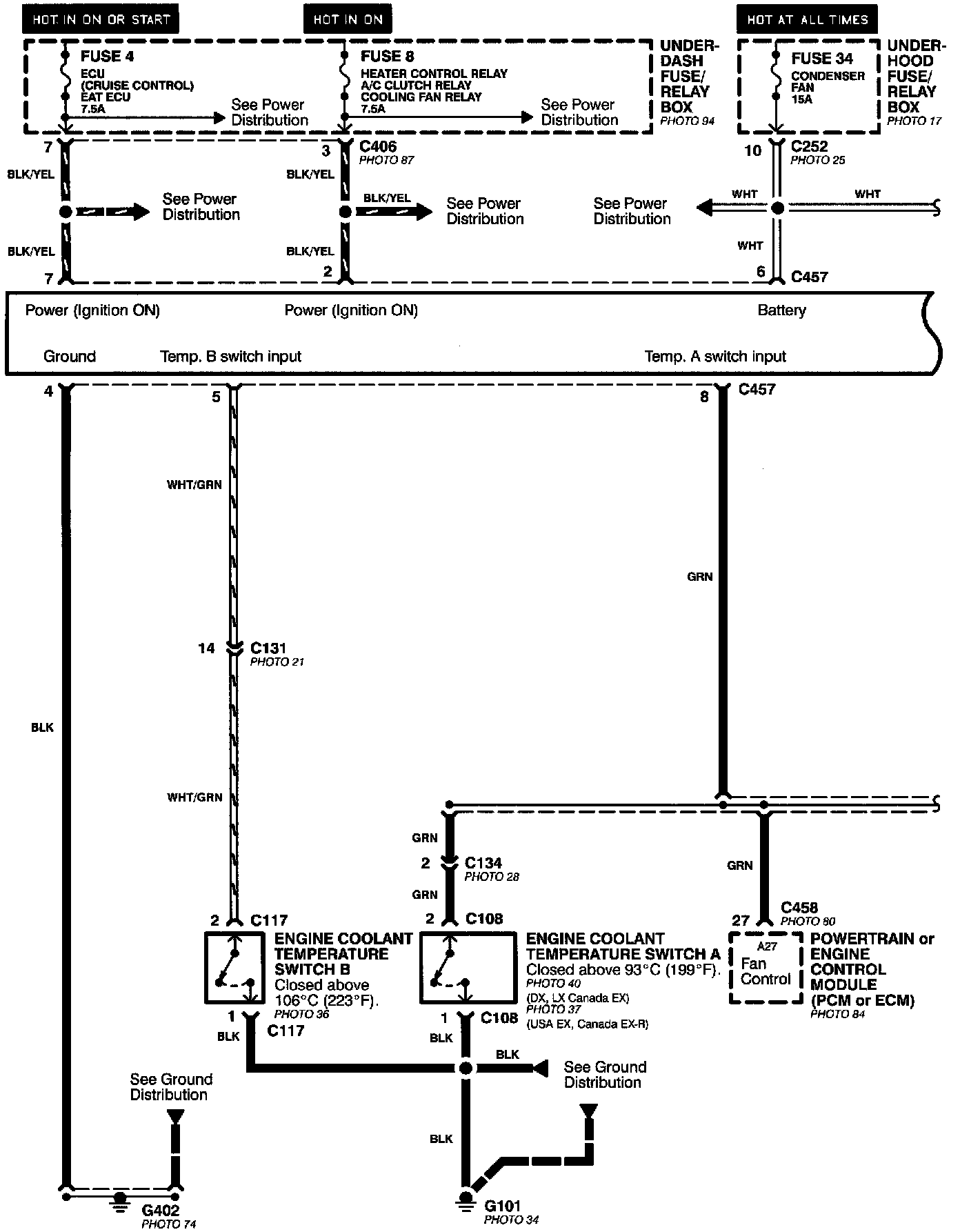

Fans - With A/C (Part 2 Of 3):

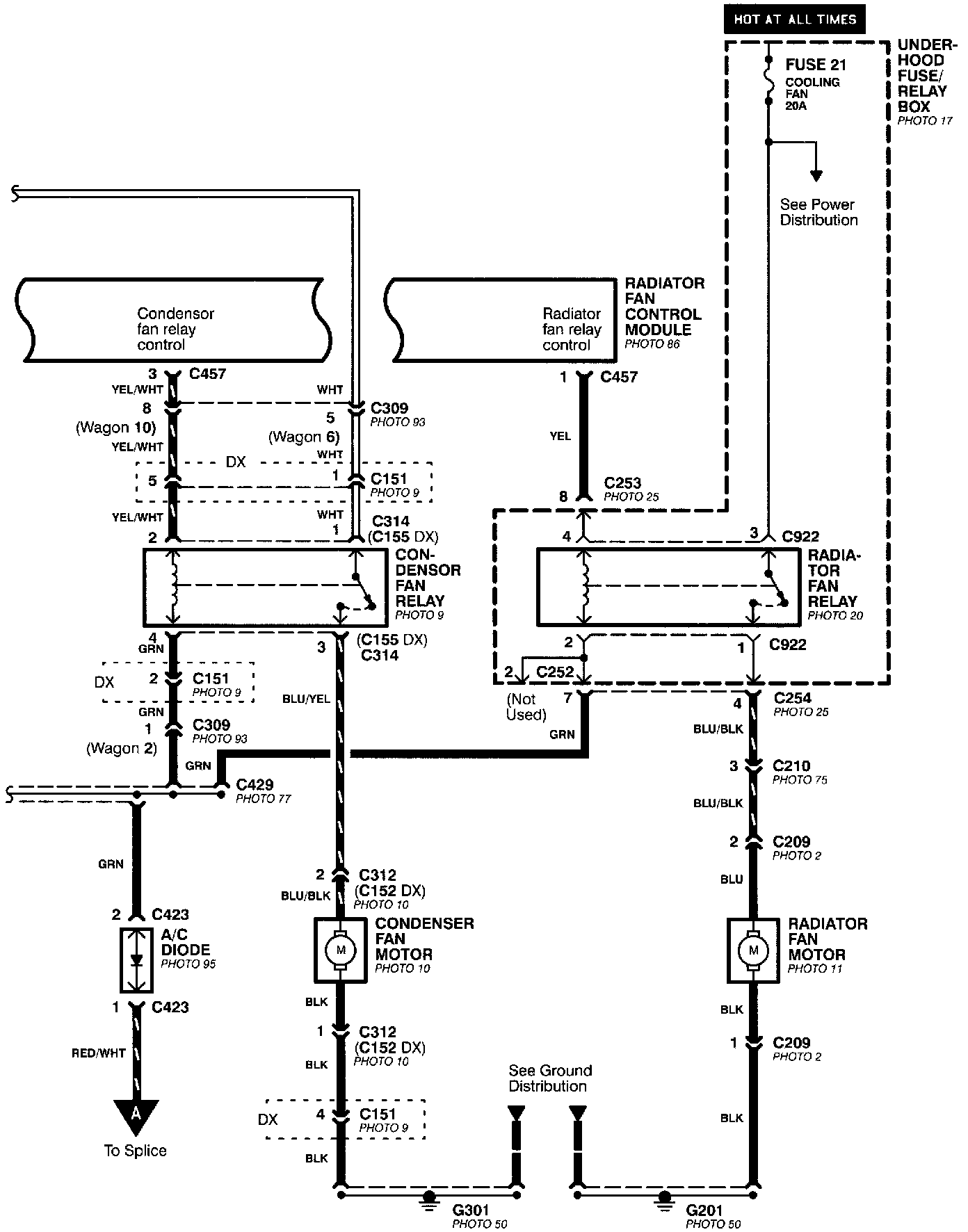

Fans - With A/C (Part 3 Of 3):
