Electrical Diagrams

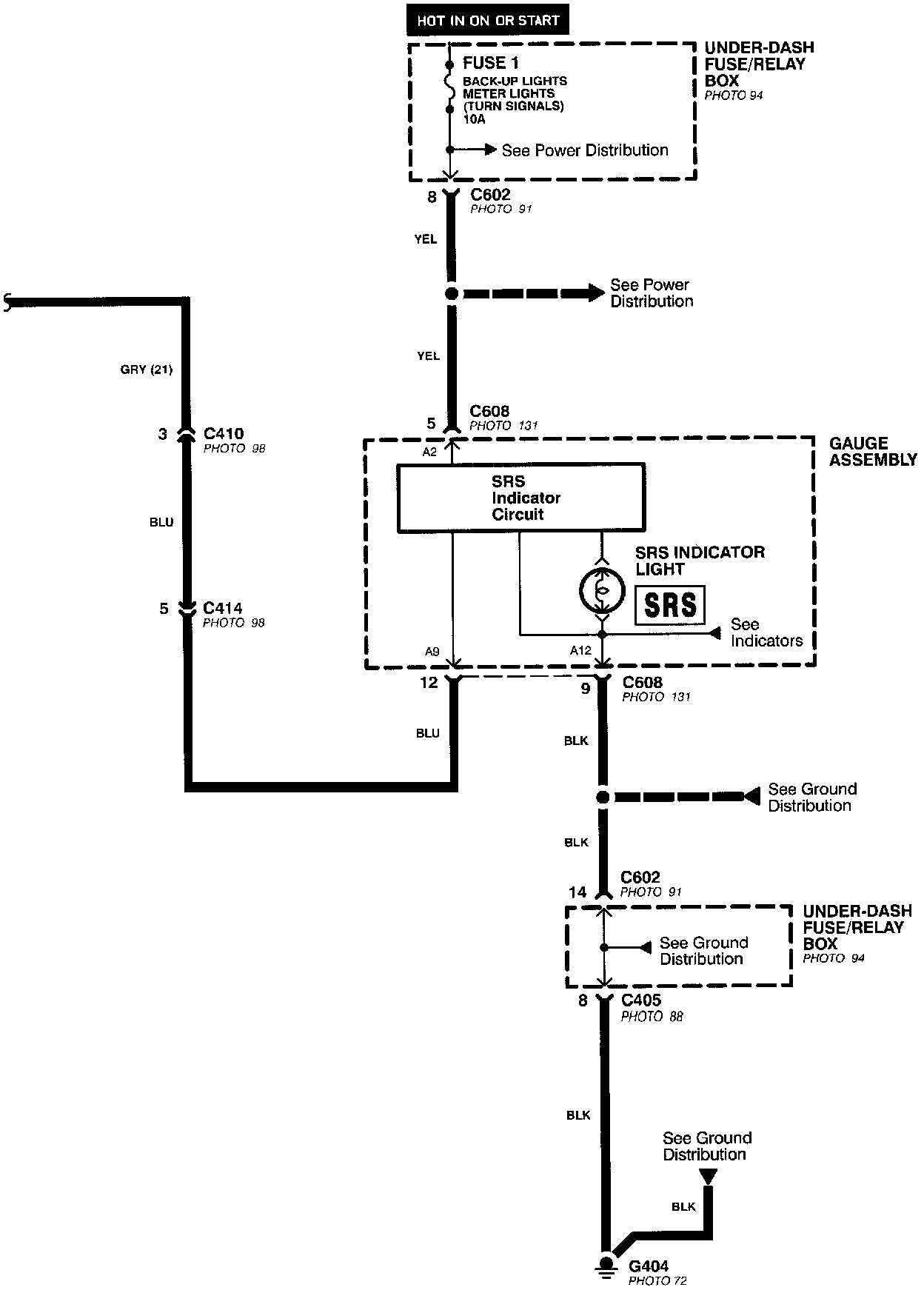

Supplemental Restraint System - Driver's And Front Passenger's Airbags (Part 1 Of 2):

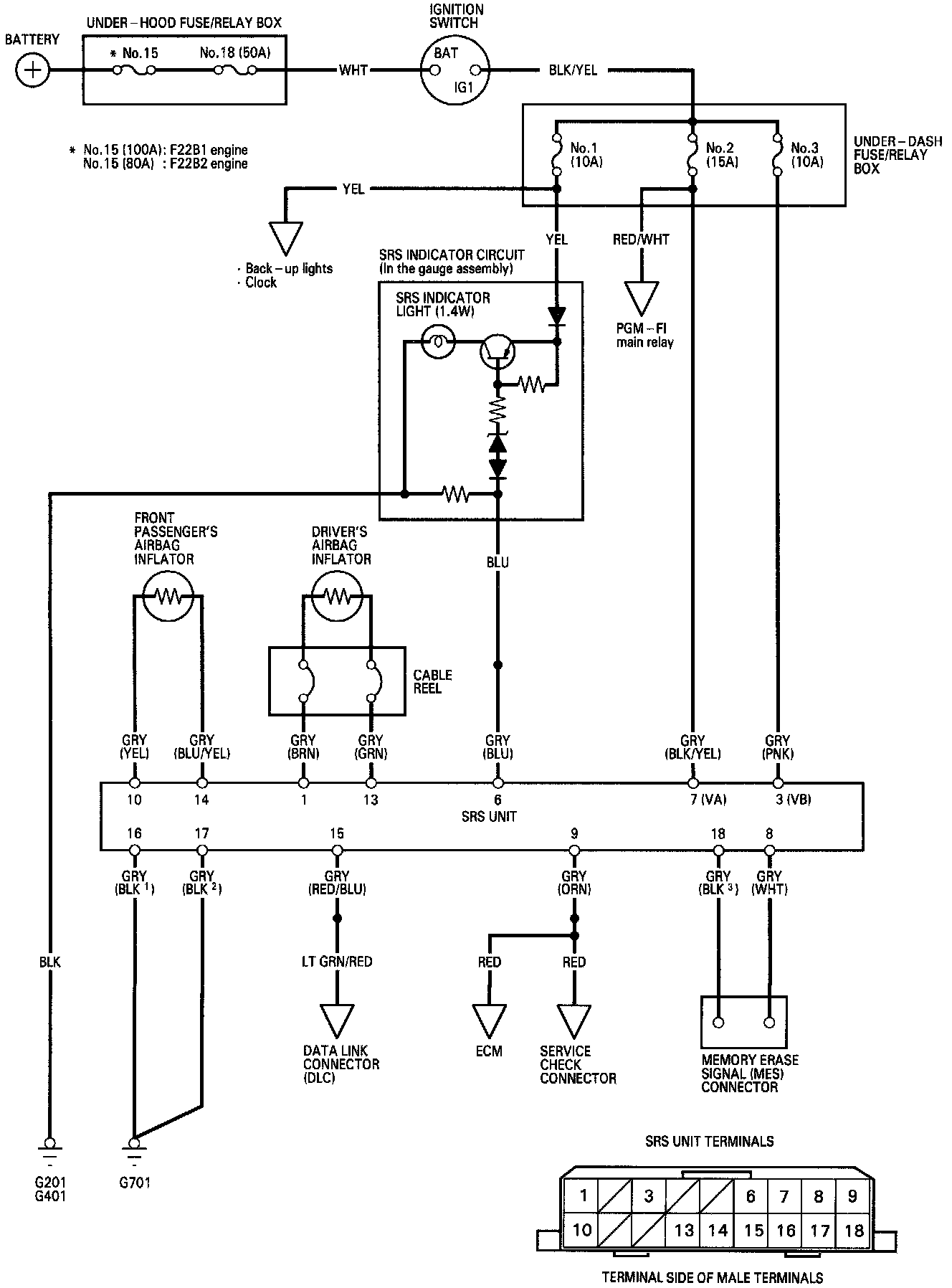

Supplemental Restraint System - Driver's And Front Passenger's Airbags (Part 2 Of 2):



Circuit Diagram:
