Shift Interlock: Locations

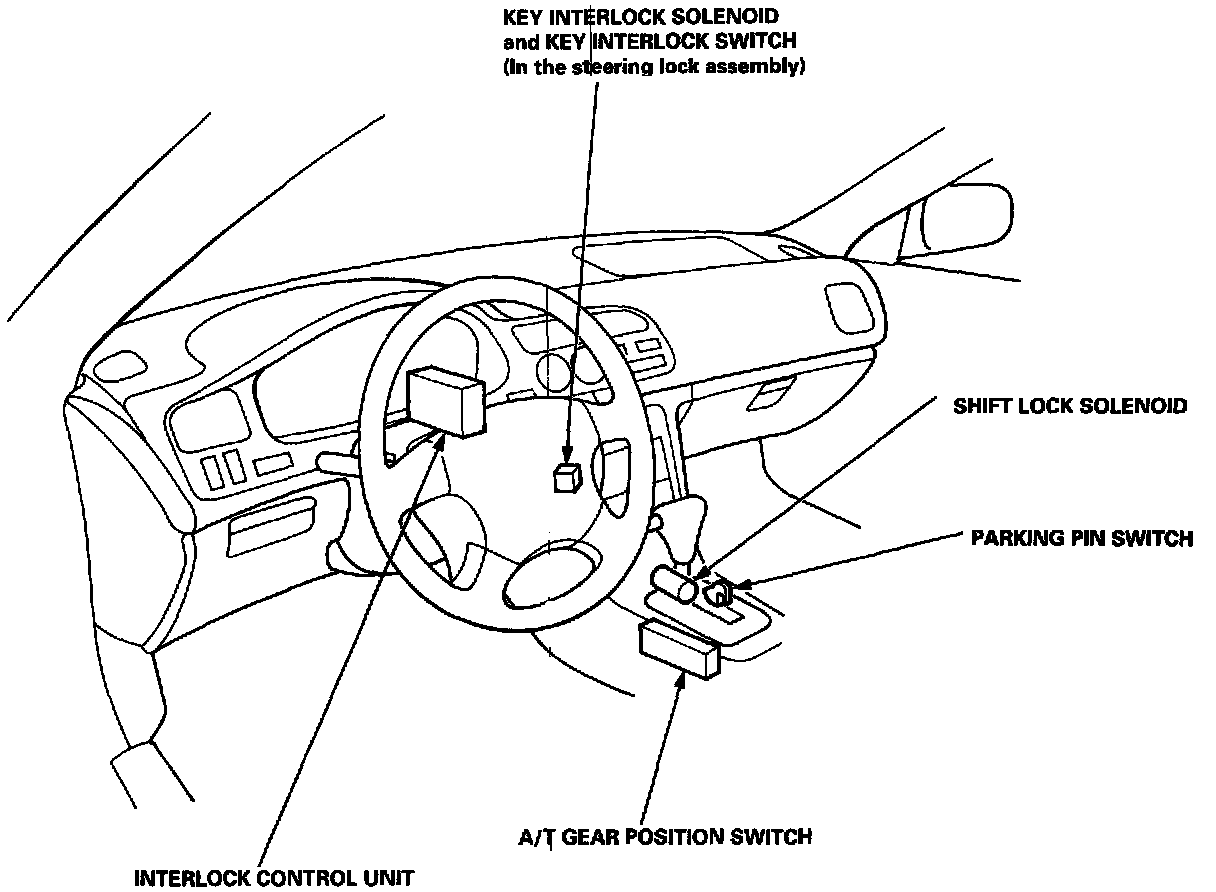

Interlock System - Component Location Index:

CAUTION:

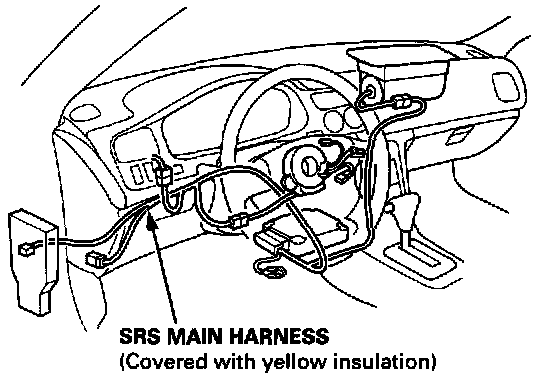

- All SRS wire harnesses are covered with yellow insulation. Before you disconnect any part of an SRS wire harness, disconnect the airbag connectors.
- Whenever the ignition switch ON (II), or has been turned OFF for less than three minutes, be careful not to bump the SRS unit; the airbags could accidentally deploy and cause damage or injuries.
- For additional precautions, refer to Air Bags and Seat Belts.
