Electrical Diagrams

Power Windows - Key-OFF Timer Circuit:



Power Windows - Driver's Door:

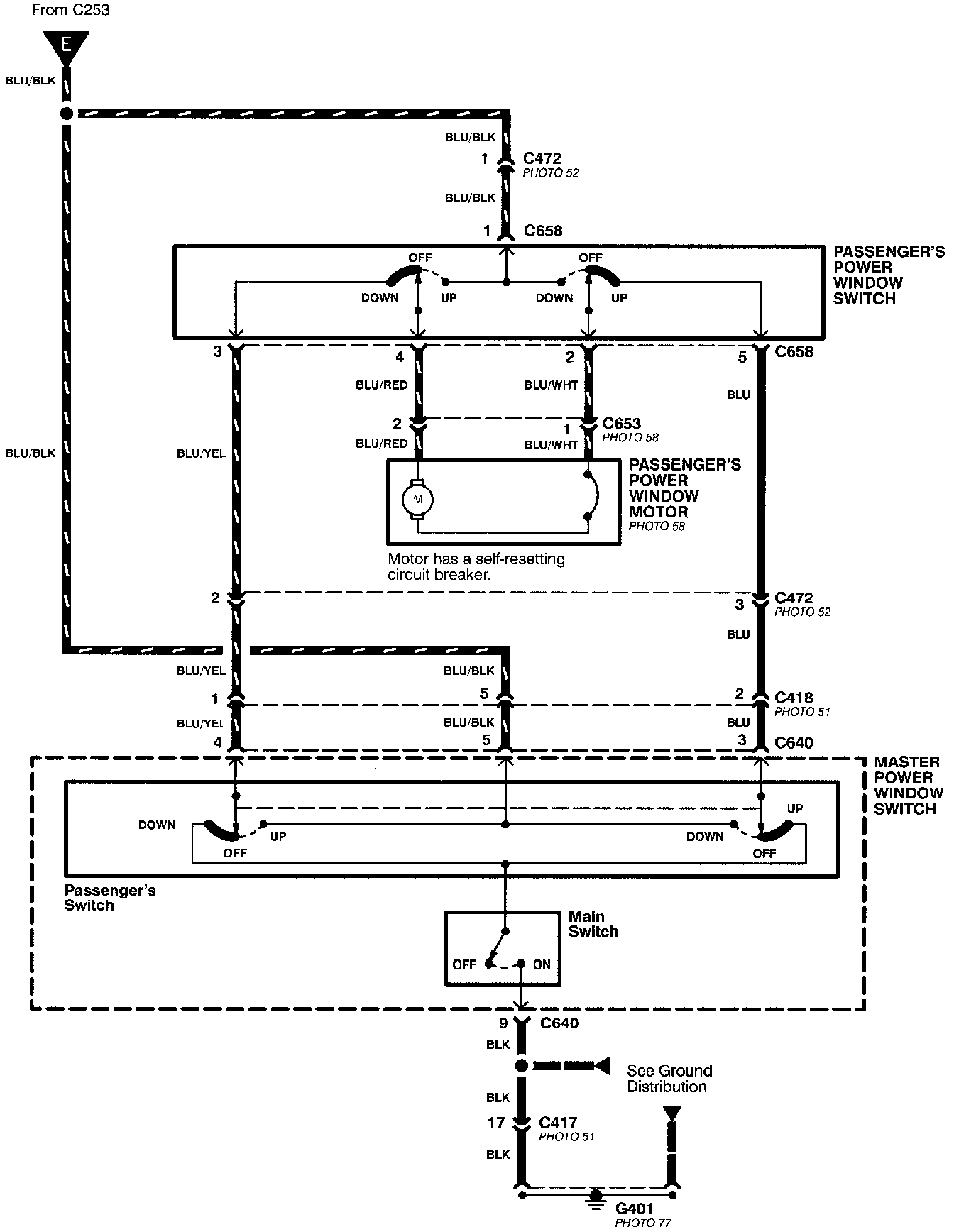

Power Windows - Passenger's Door:
