Home >> Honda >> 1996 >> Accord Sedan L4-2.2L SOHC (16 Valve) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> 6-Way Power Adjustable Seat

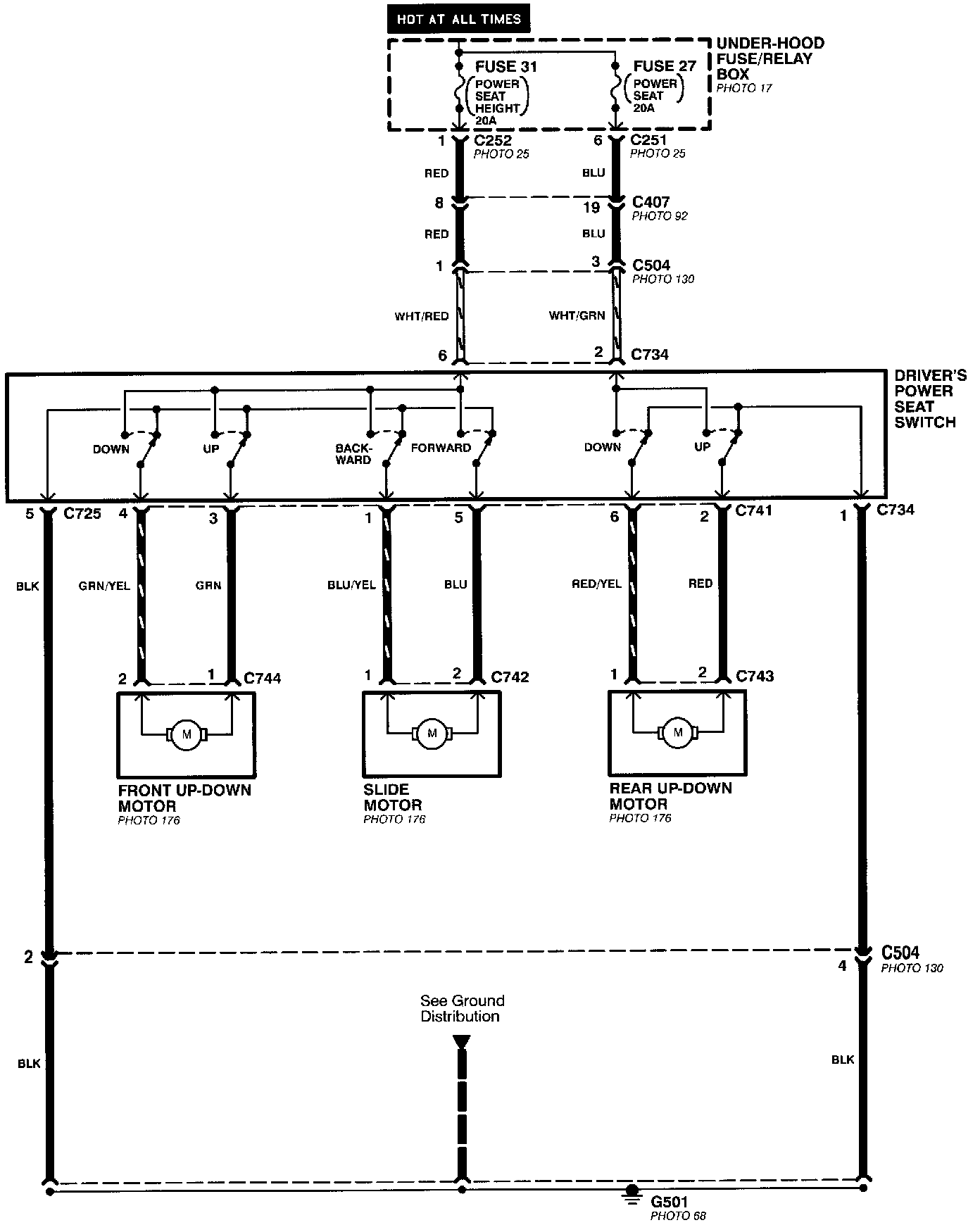

6-Way Power Adjustable Seat

Power Seat - 6-way Power Adjustable Seat:
