Torque Specifications

Intake Components:

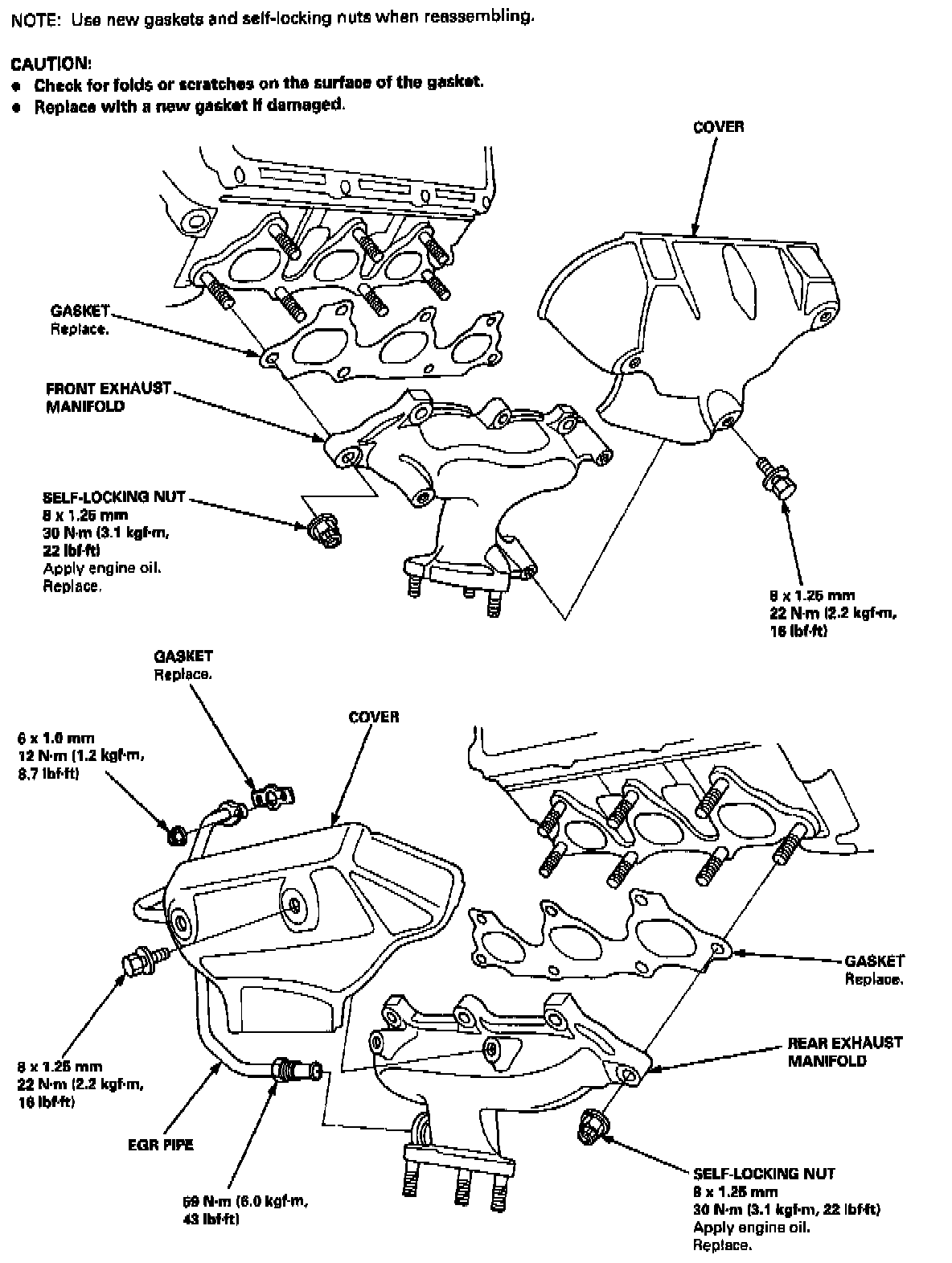

Exhaust Manifold:

Outer Engine Components:

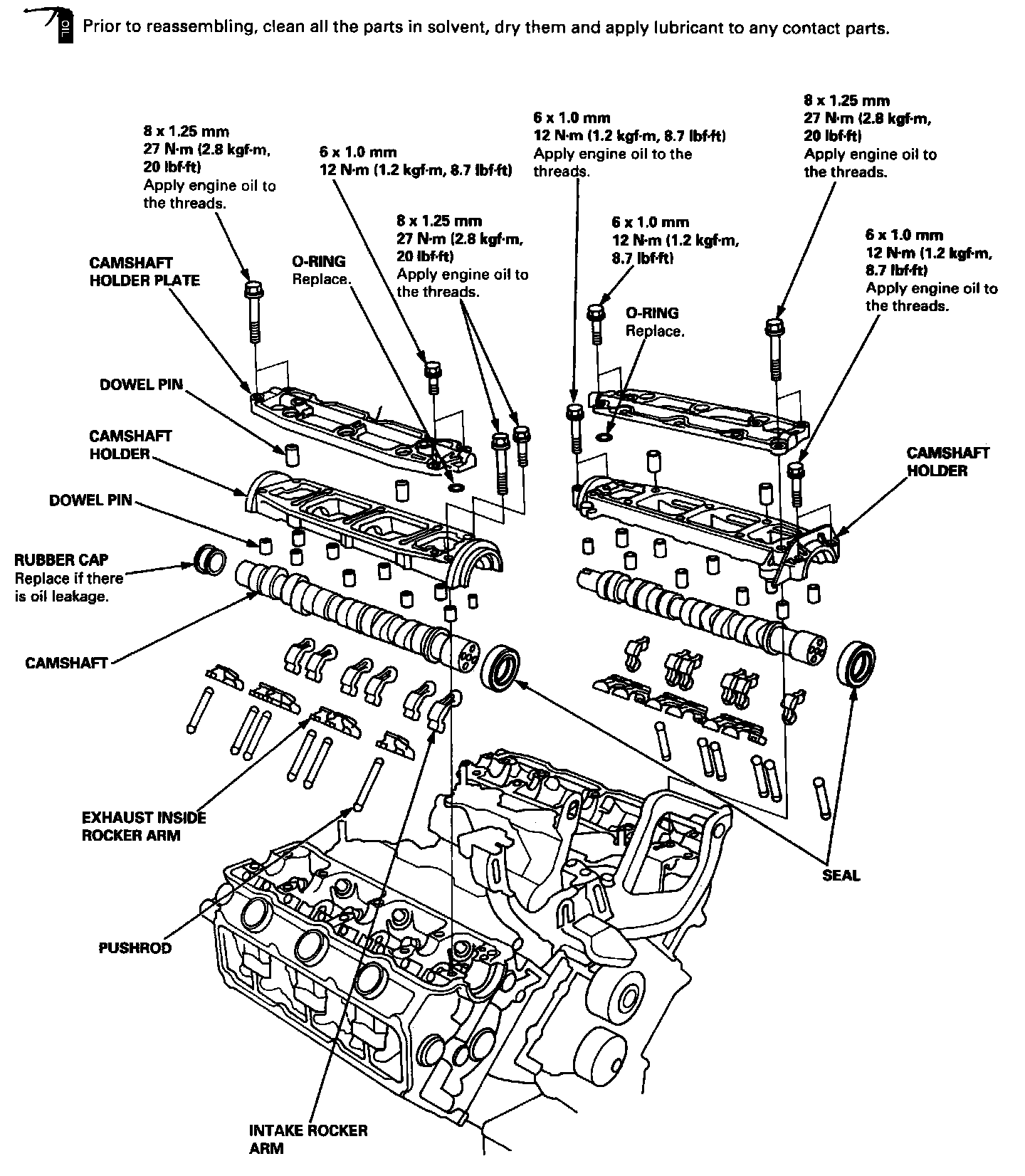

Camshaft Components:

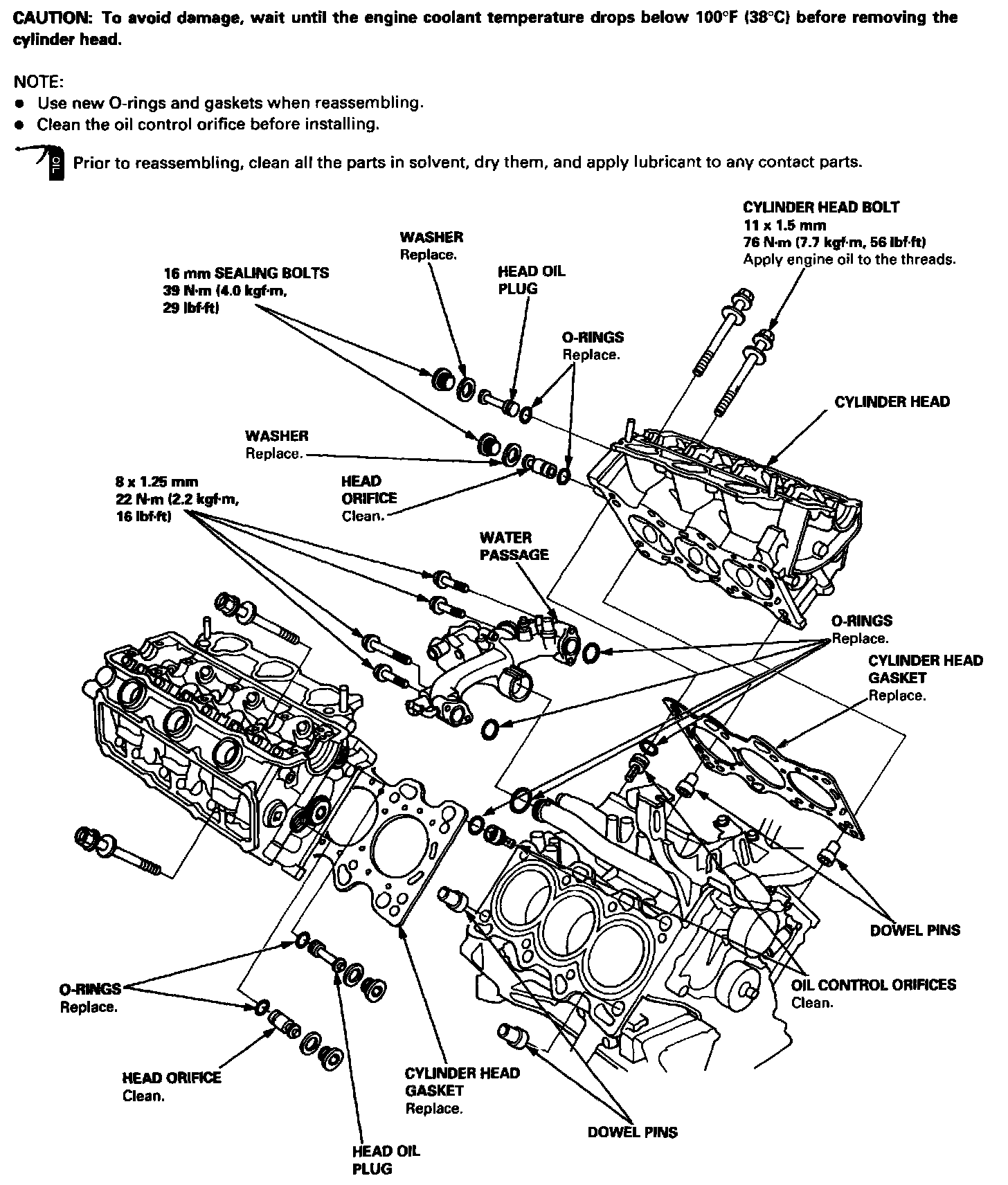

Cylinder Heads:

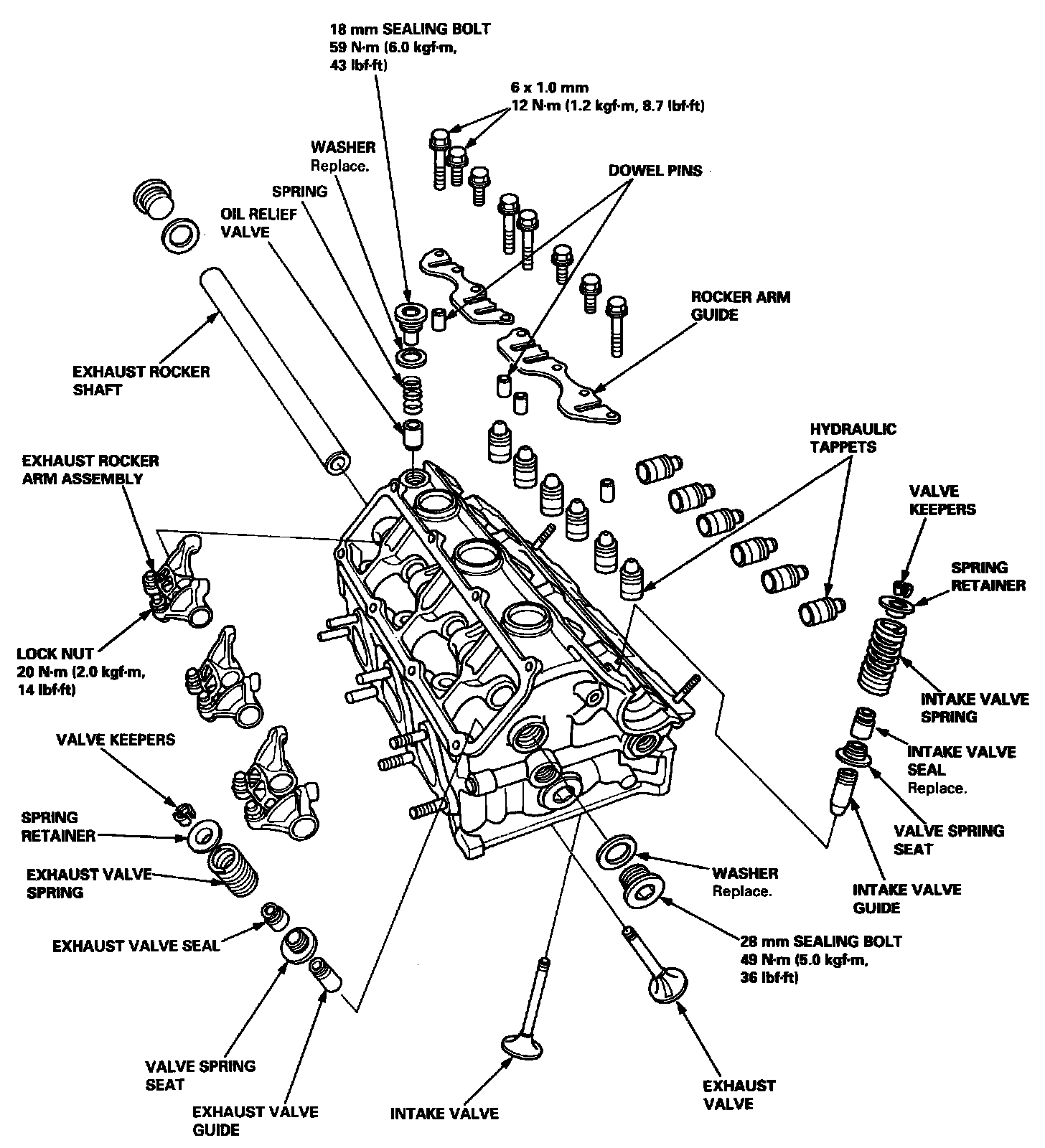

Valvetrain Components:

Head Bolt Loosening Sequence:

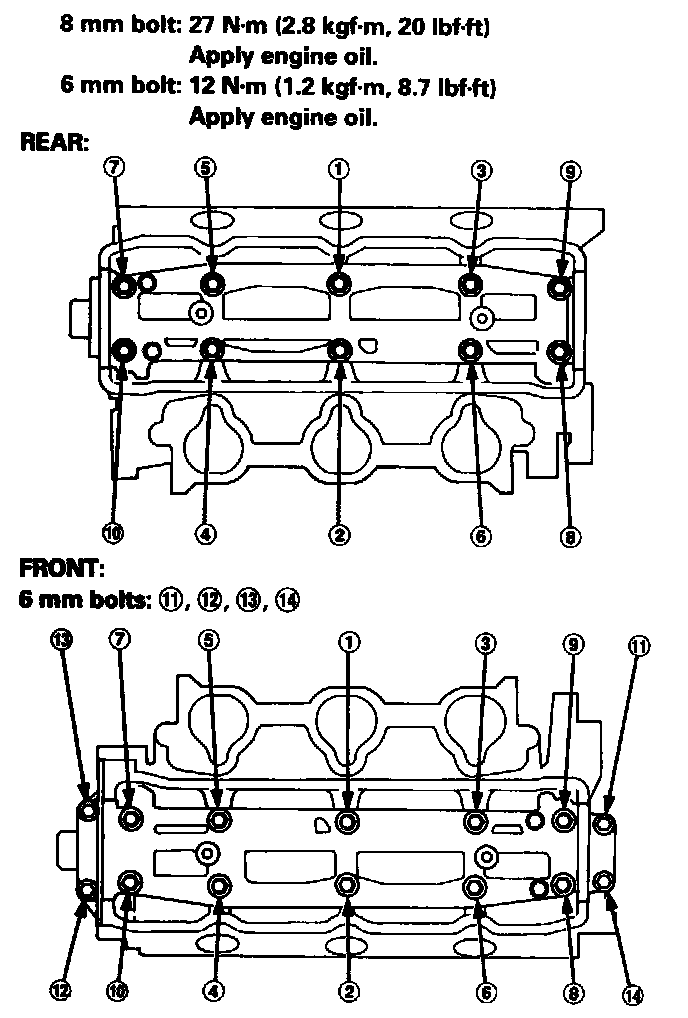

Camshaft Bolt Torque Sequence:

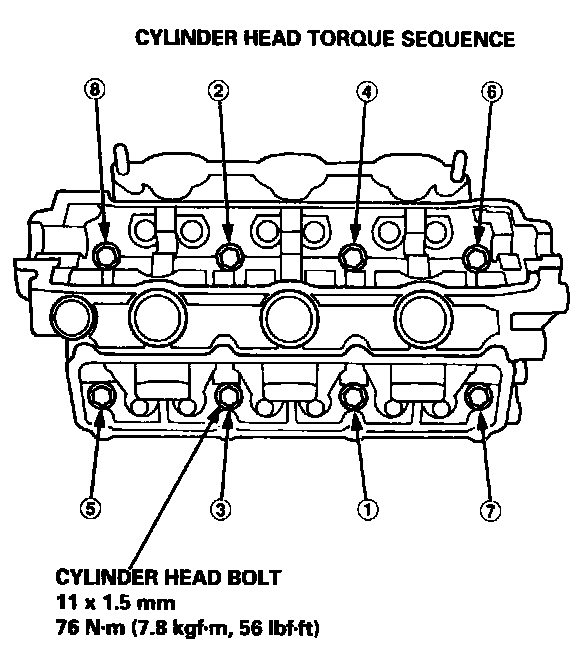

Head Bolt Torque Sequence:

Tighten cylinder head bolts in two steps. First torque all bolts in sequence, to 29 ft. lbs., then torque all bolts in sequence to 56 ft. lbs.

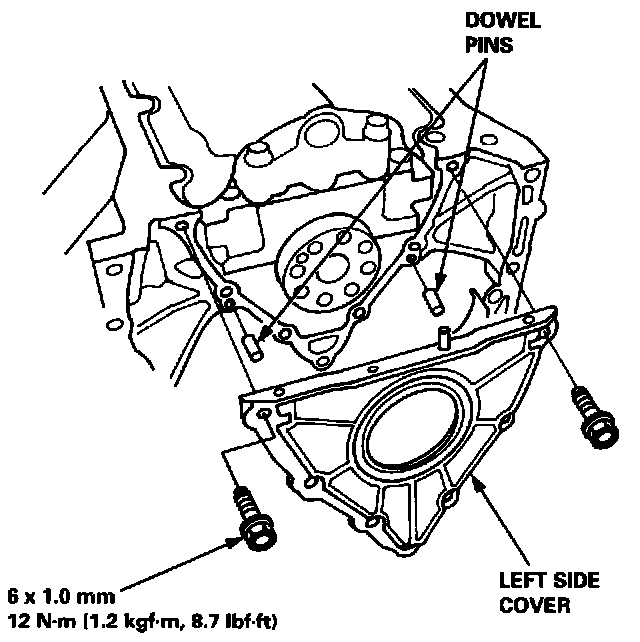

Cylinder Head Side And Upper Covers:

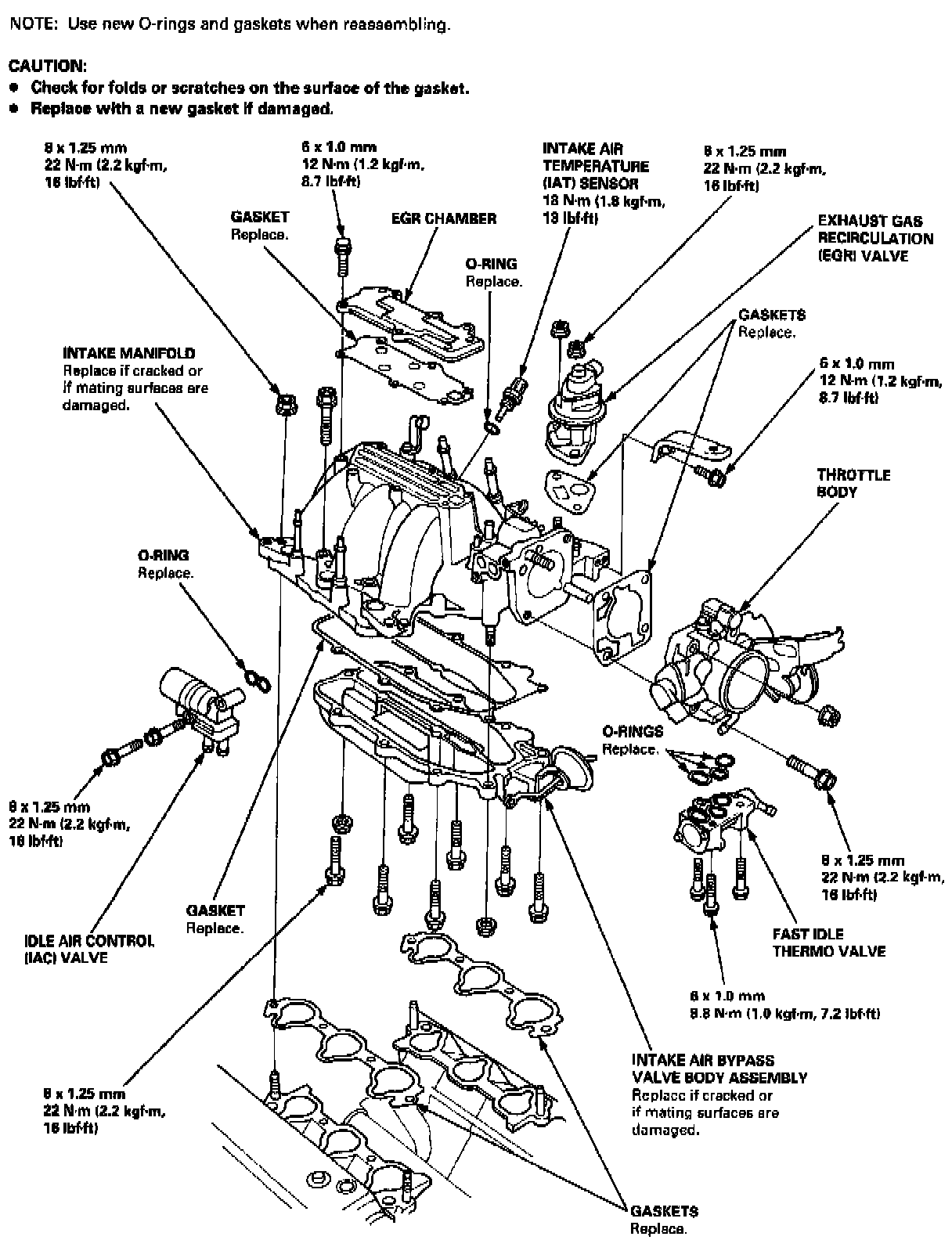

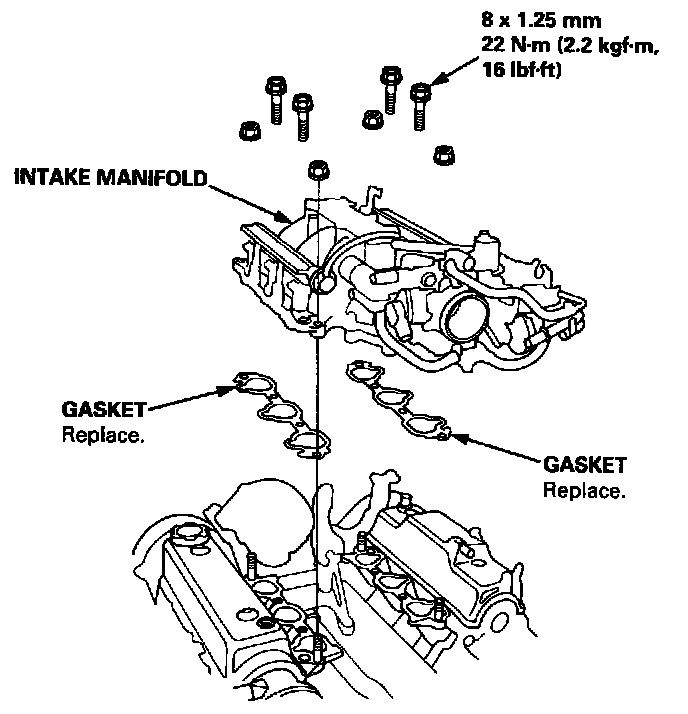

Intake Manifold:

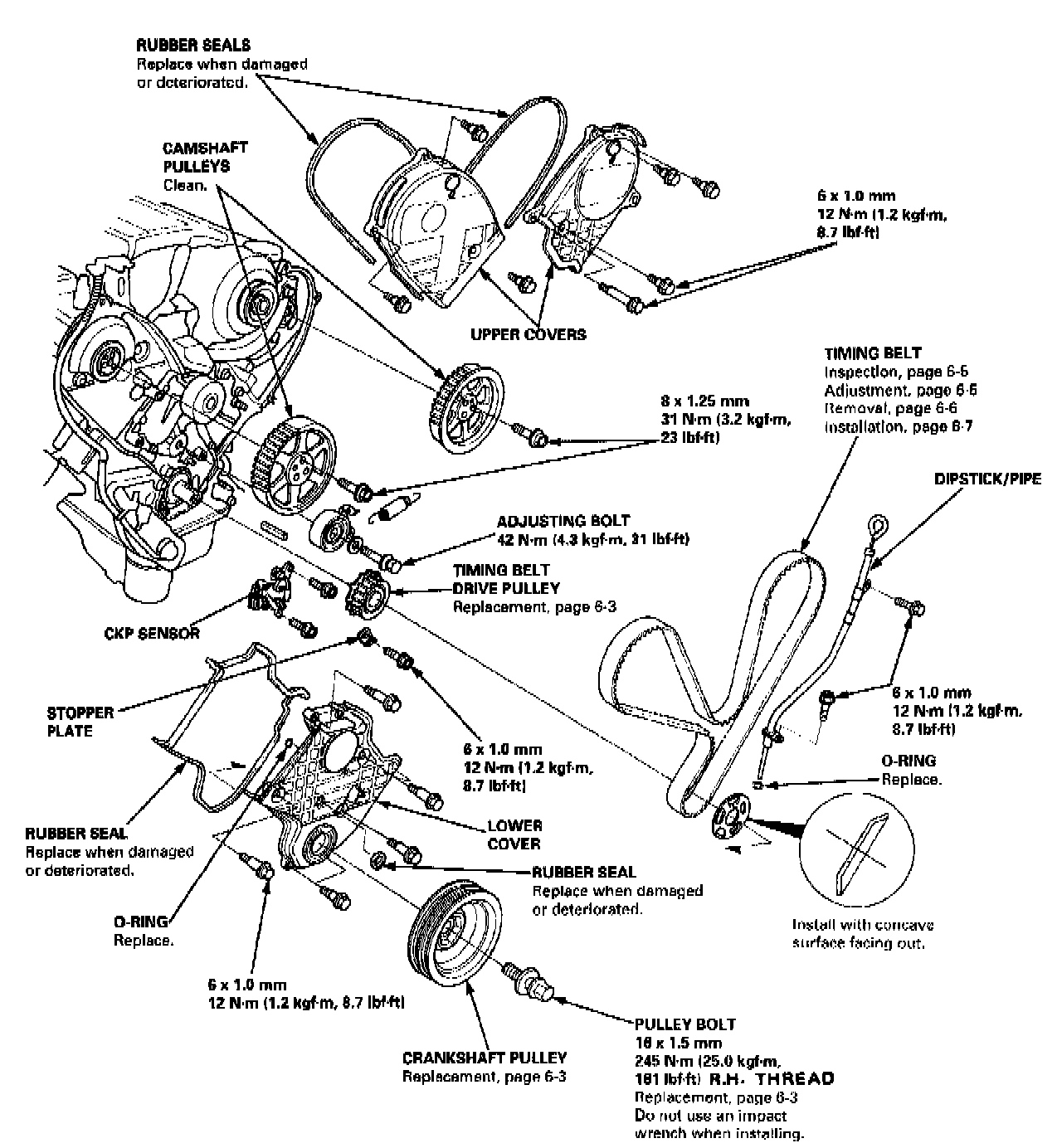

Timing Components:

Water Passage Housing:

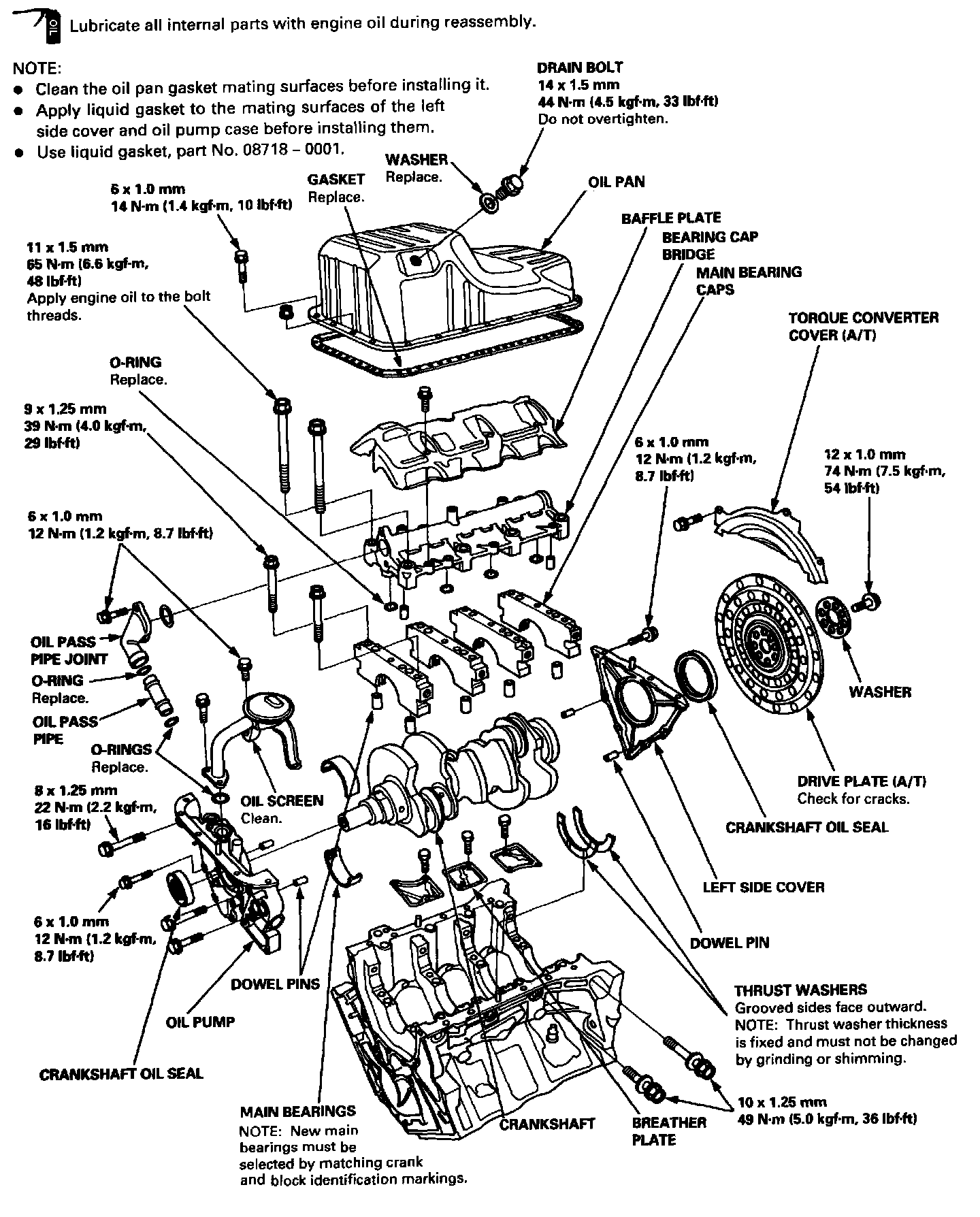

Cylinder Block Components:

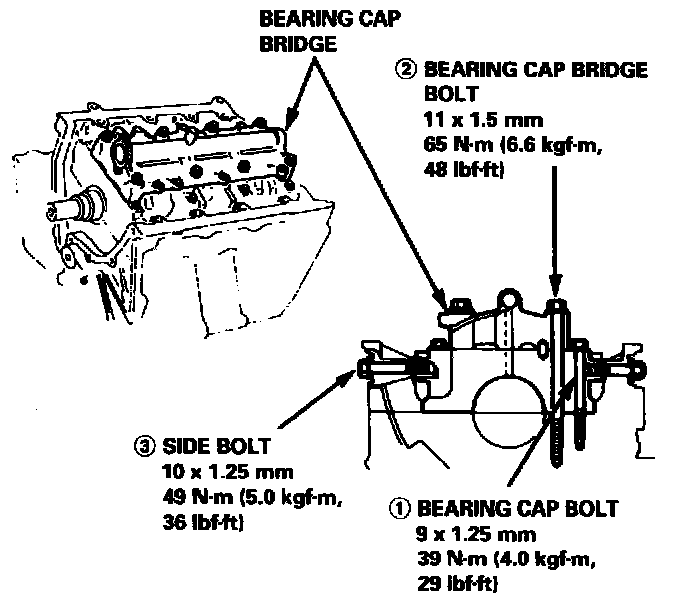

Main Bearing Torque:

Main Bearing Torque Sequence:

Rear Crankshaft Seal:
