Fuel Pump System
Fuel Pump System

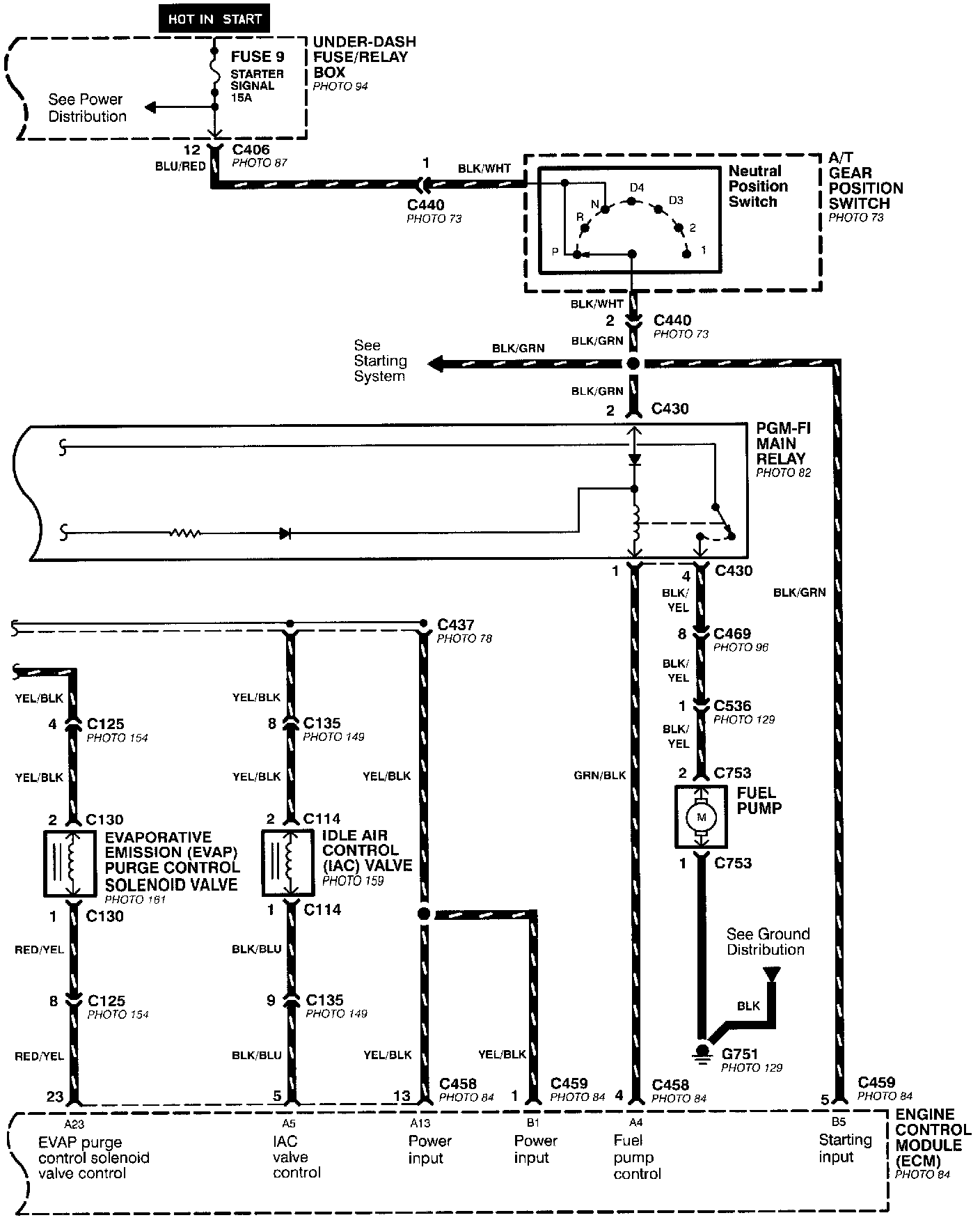

Programmed Fuel Injection System (PGM-FI) - Main Relay And Fuel Control (Part 2 Of 2):
