Main Relay and Fuel Control
Main Relay and Fuel Control

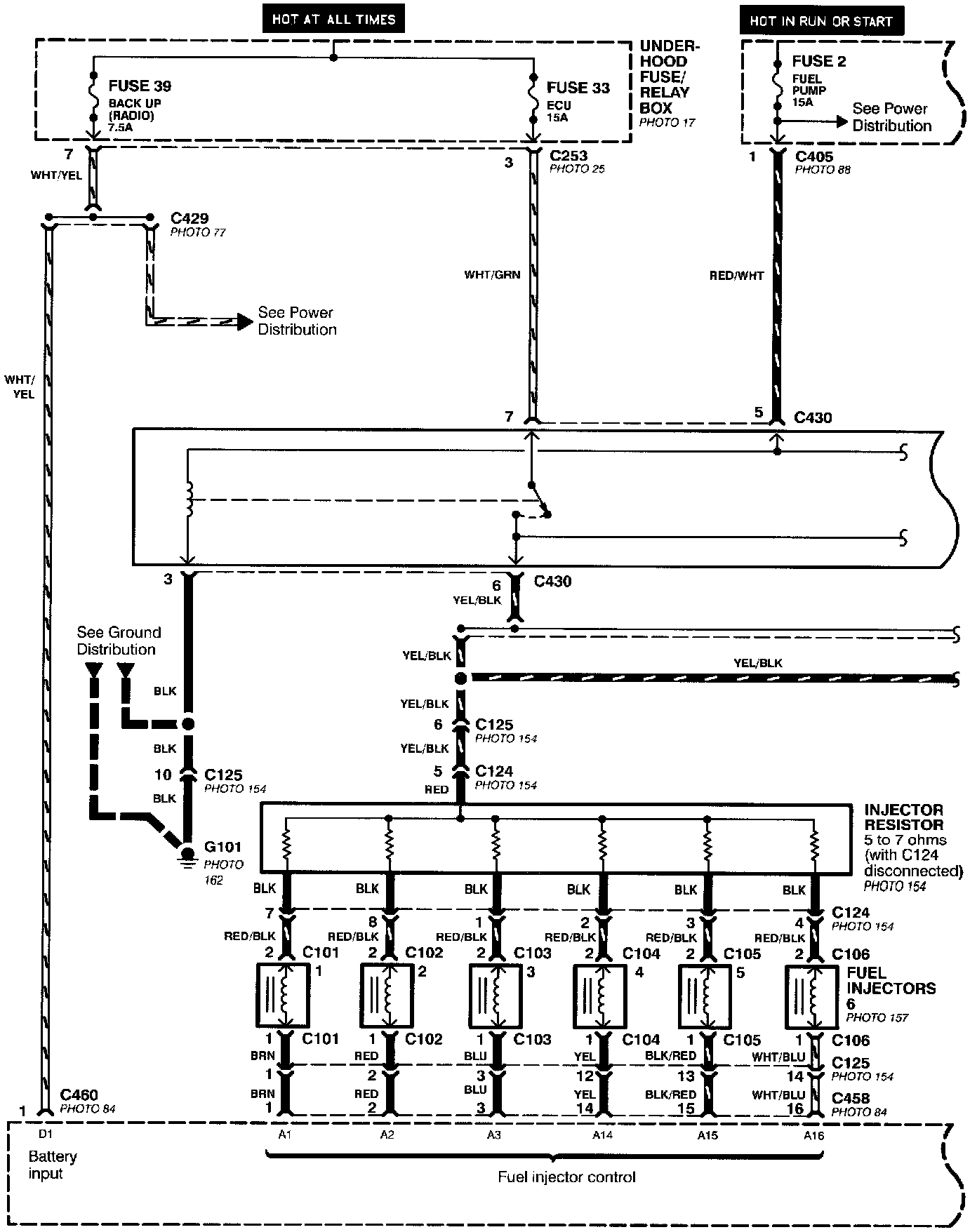

Programmed Fuel Injection System (PGM-FI)- Main Relay And Fuel Control (Part 1 Of 2):

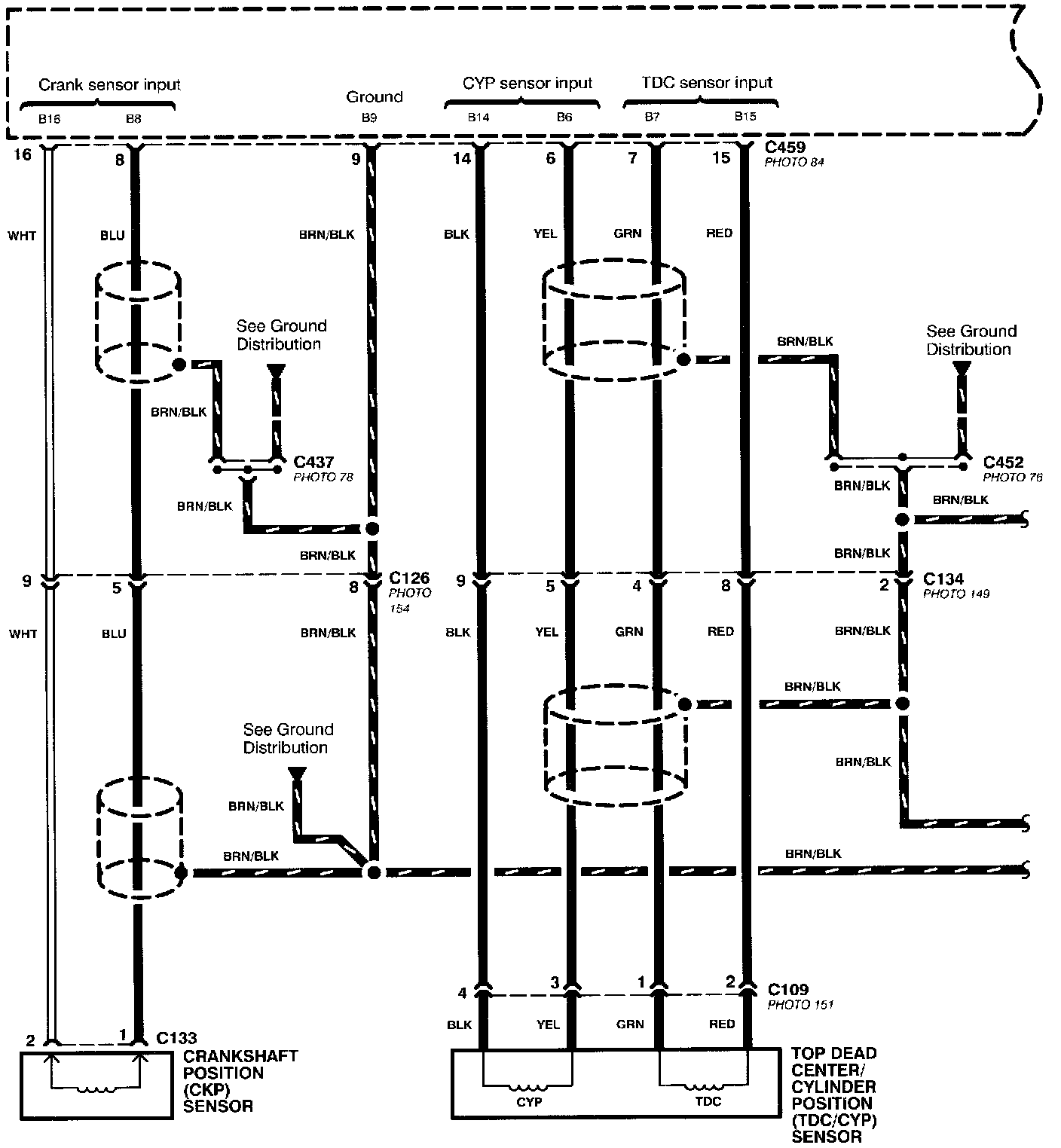

Programmed Fuel Injection System (PGM-FI) - Engine Data Sensors (Part 1 Of 2):
