Differential: Testing and Inspection

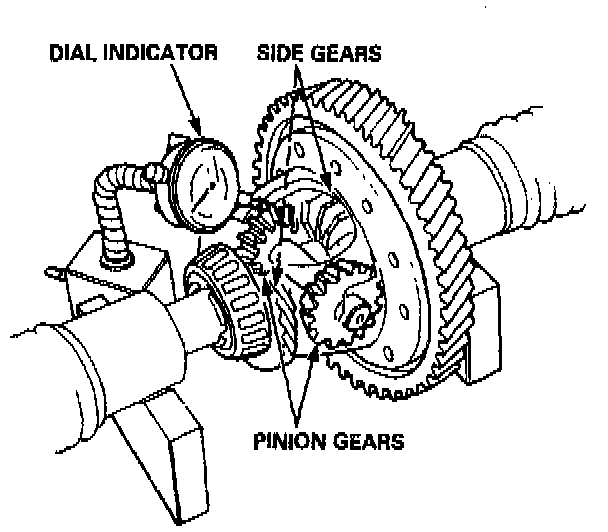

1. Place the differential assembly on V-blocks, and install both axles.





2. Check the backlash of both side gears.

Standard (New): 0.05 - 0.15 mm (0.002 - 0.006 inch)

3. If the backlash is out of tolerance, replace the differential carrier.
