Trunk Lamp
>>
Ex
Ex

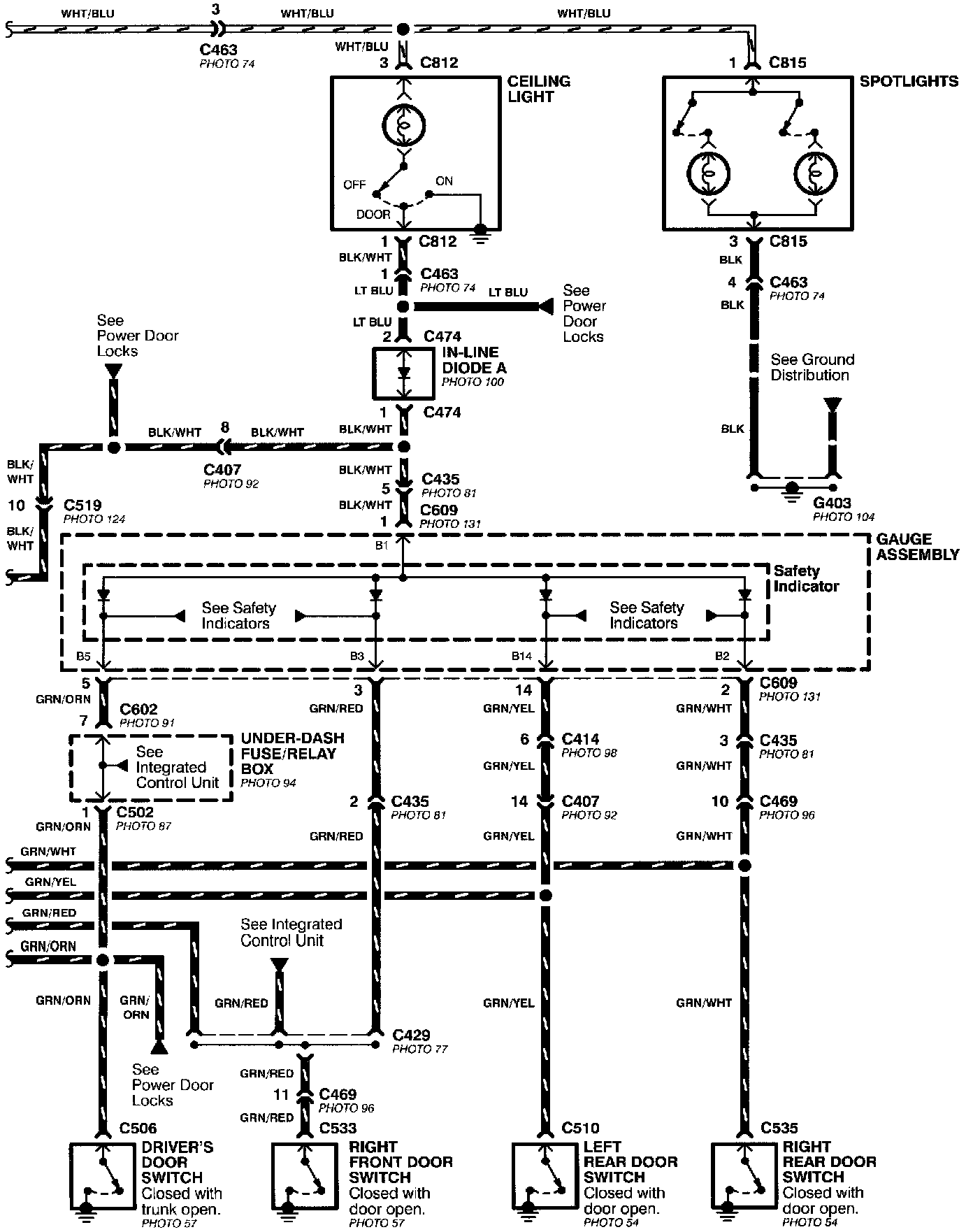

Ceiling, Door Courtesy, Spot And Cargo Lights- EX (Part 1 Of 2):

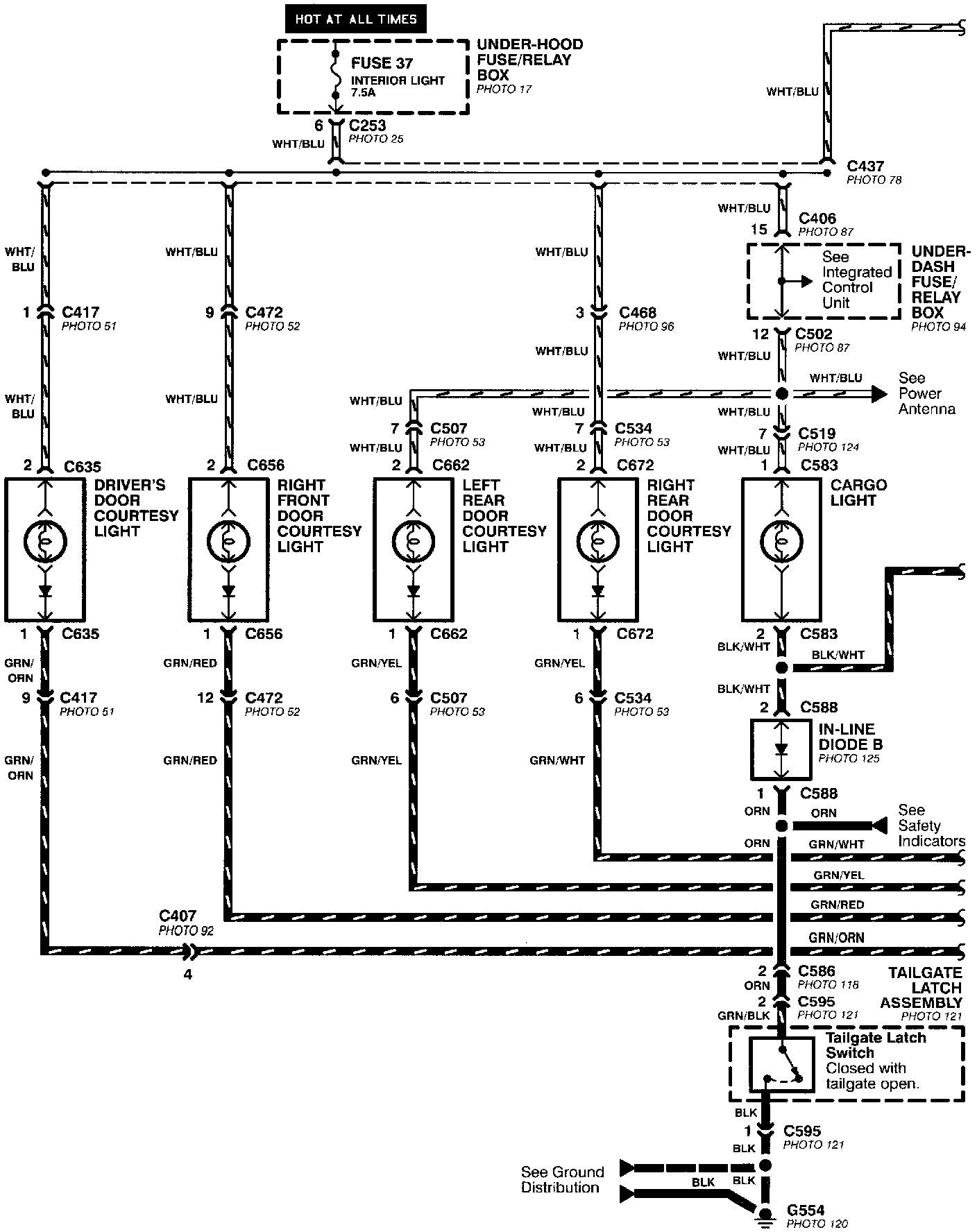

Ceiling, Door Courtesy, Spot And Cargo Lights- EX (Part 2 Of 2):
