Home >> Honda >> 1996 >> Accord Wagon L4-2.2L SOHC VTEC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Trunk Lamp >> LX

LX

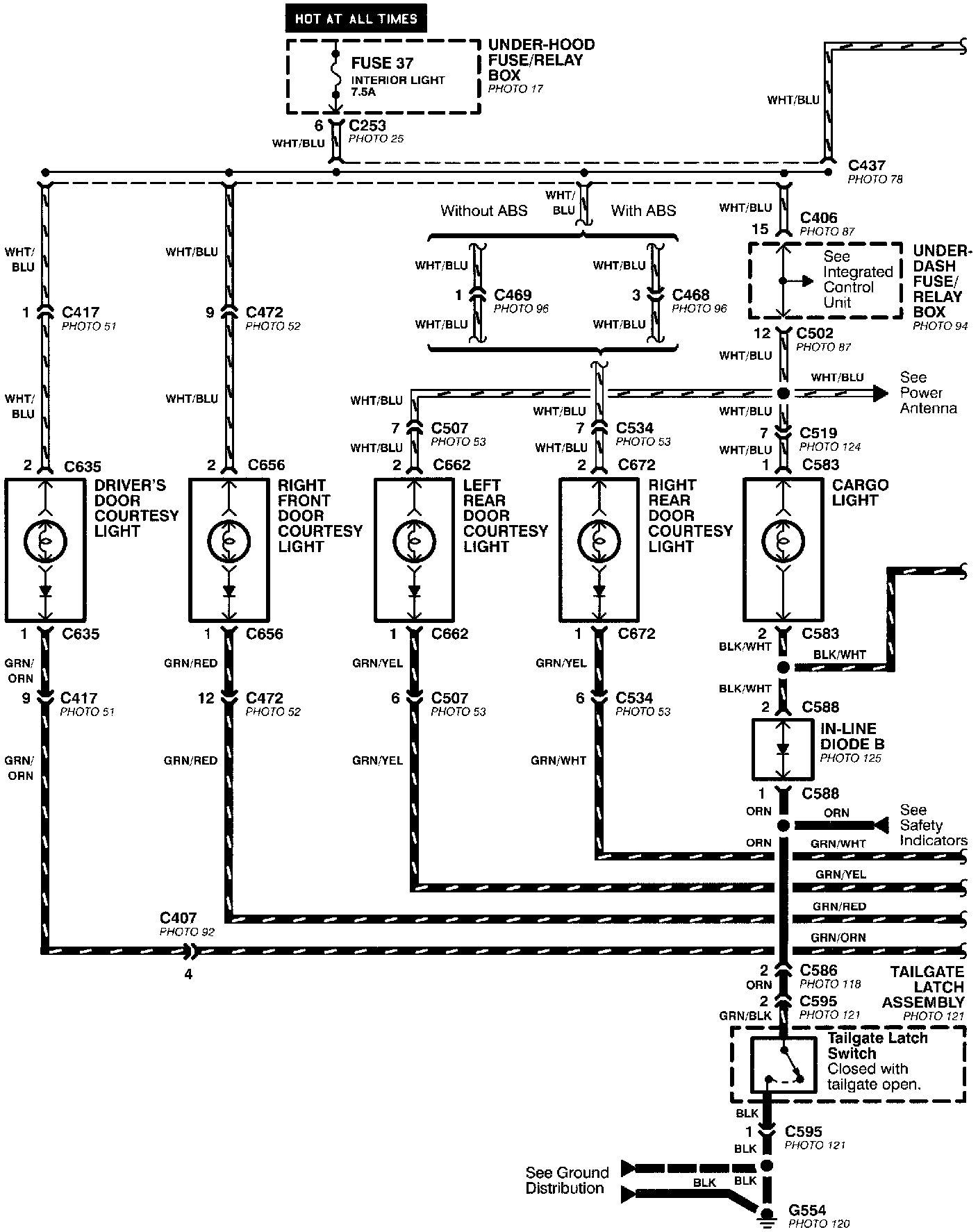

Ceiling, Door Courtesy, Spot And Cargo Lights -LX (Part 1 Of 2):



Ceiling, Door Courtesy, Spot And Cargo Lights -LX (Part 2 Of 2):
