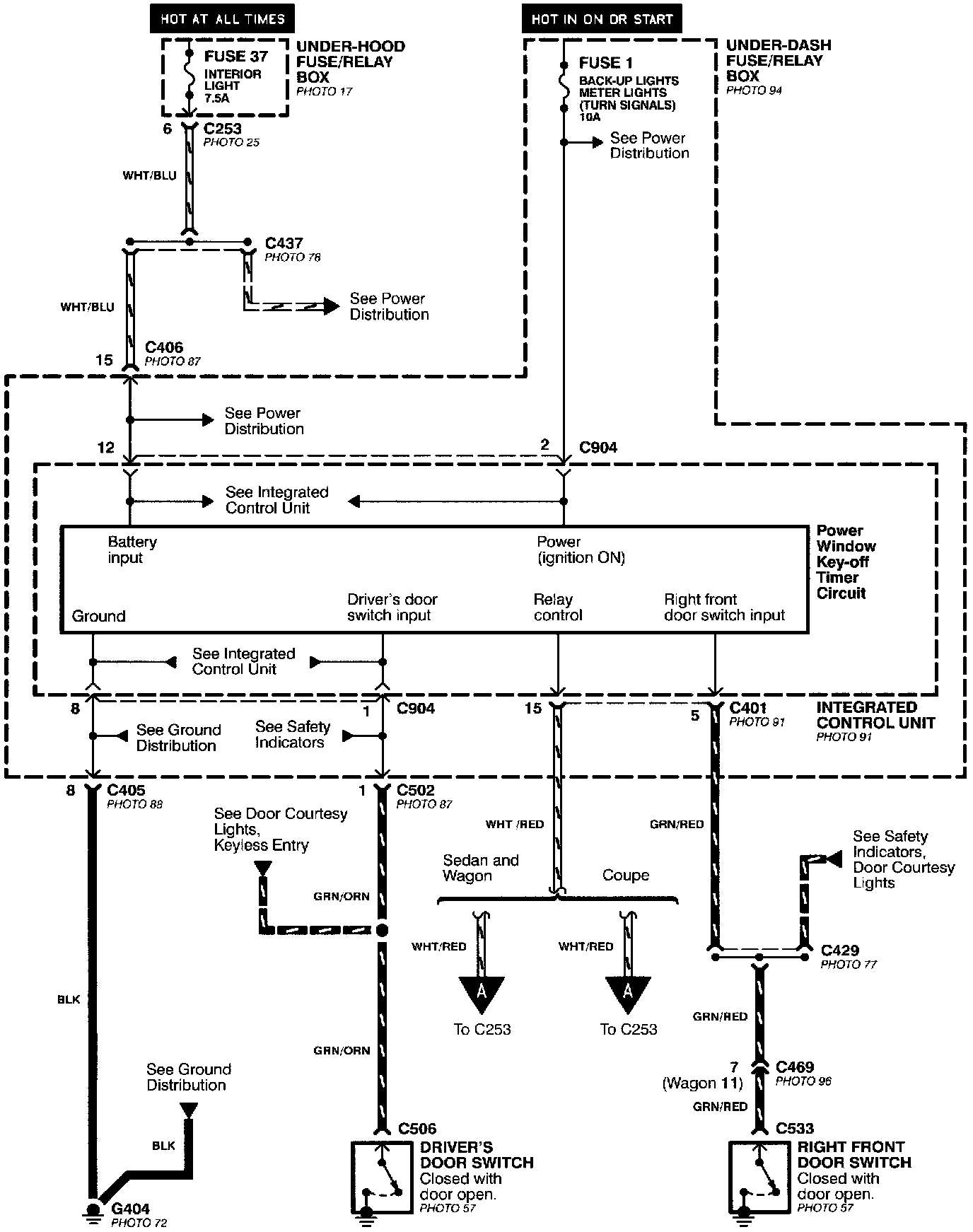

Power Windows - Key-OFF Timer Circuit:
Power Windows - Driver's Door:

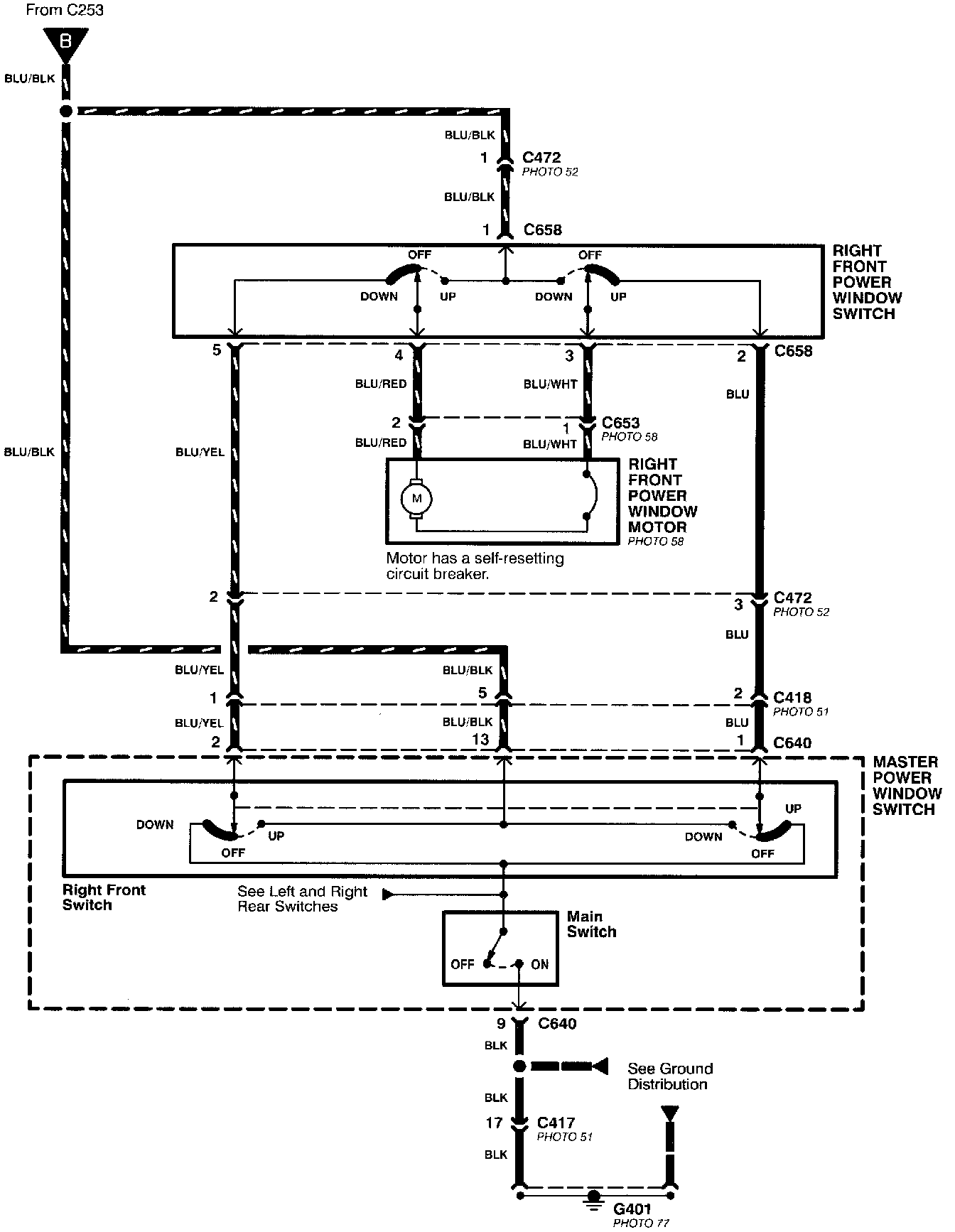

Power Windows - Right Front Door:

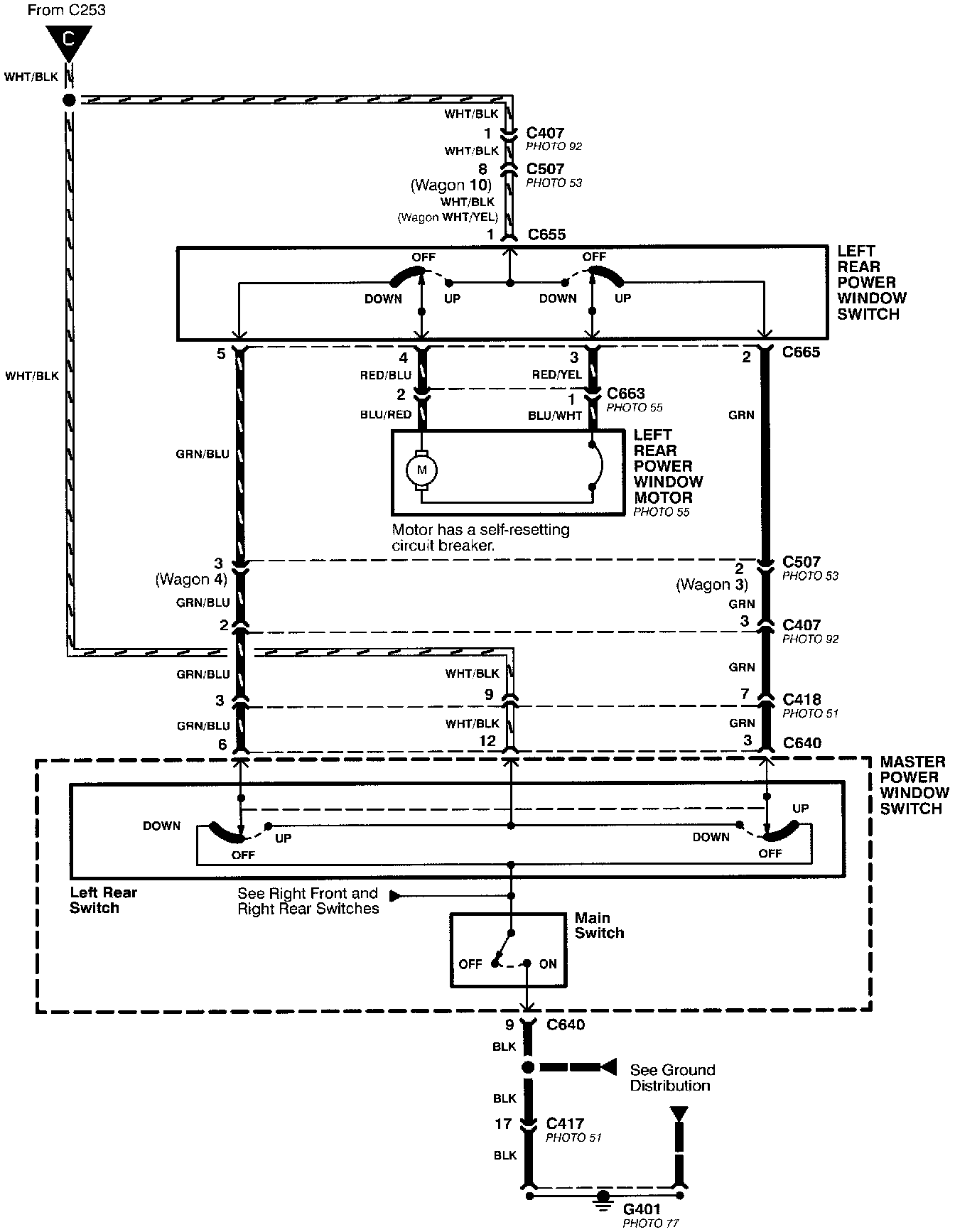

Power Windows - Left Rear Door:

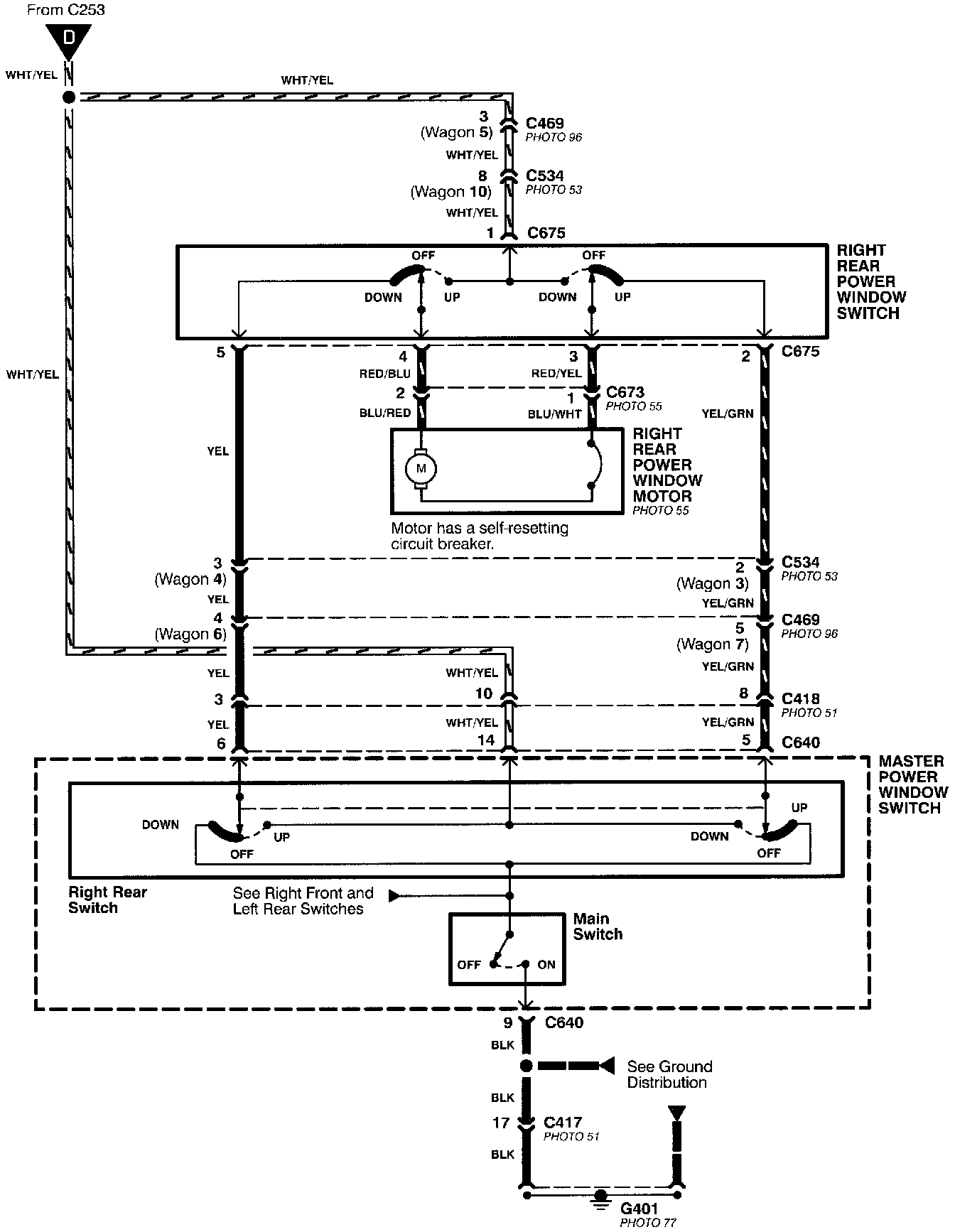

Power Windows - Right Rear Door:
