Home >> Honda >> 1996 >> Civic Coupe L4-1.6L SOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Instrument Cluster / Carrier

Instrument Cluster / Carrier

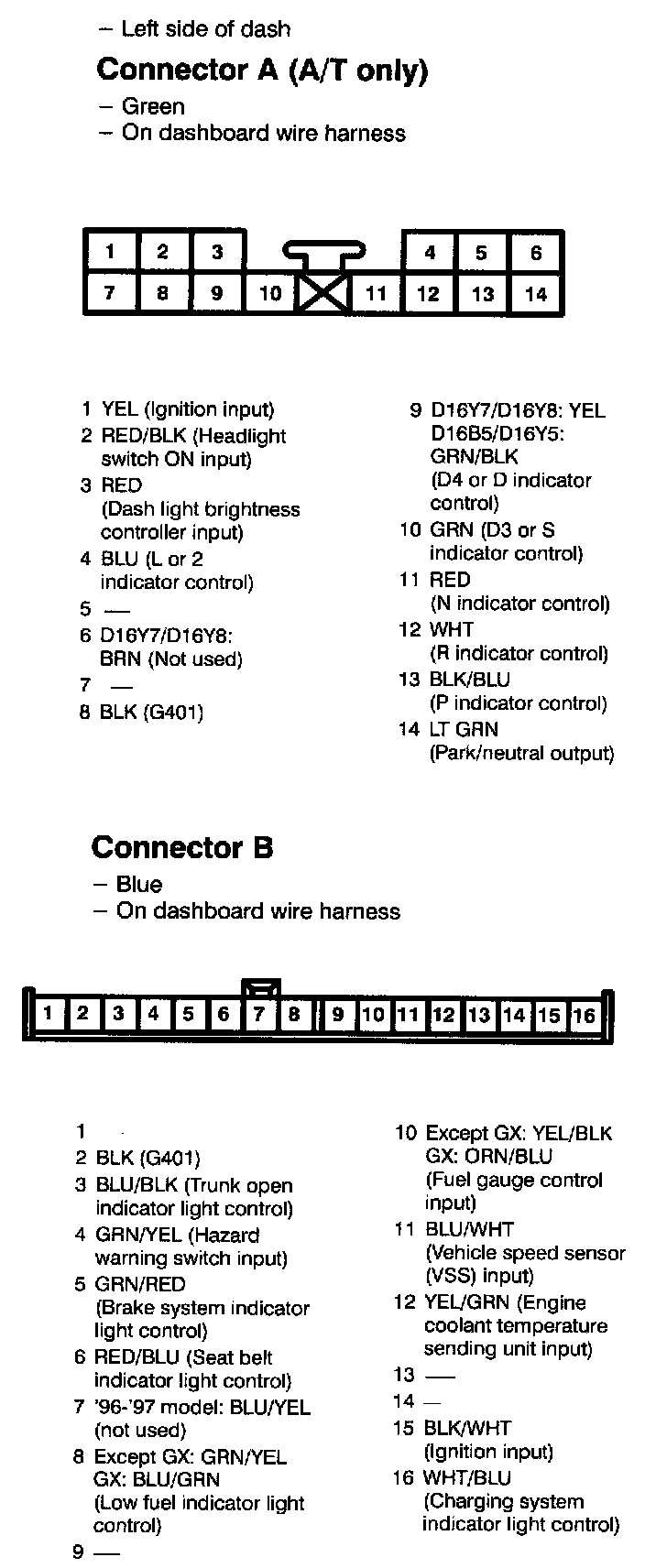

Part 1 Of 3:

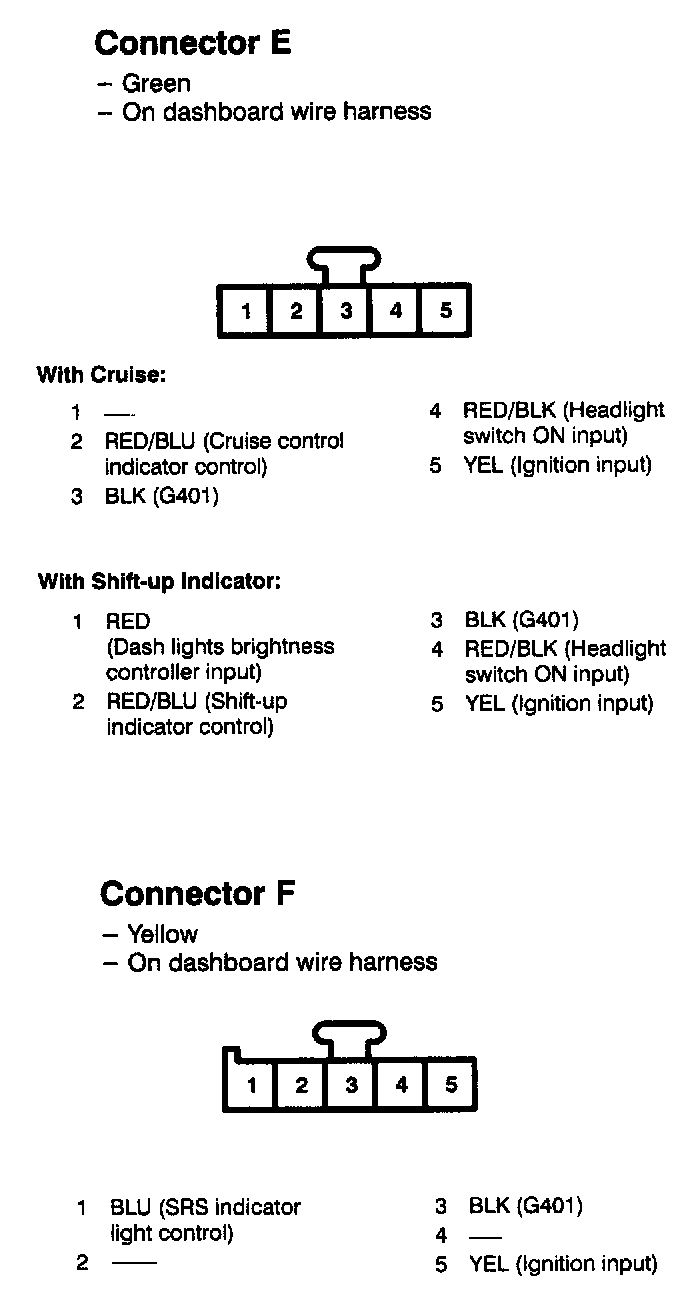

Part 2 Of 3:

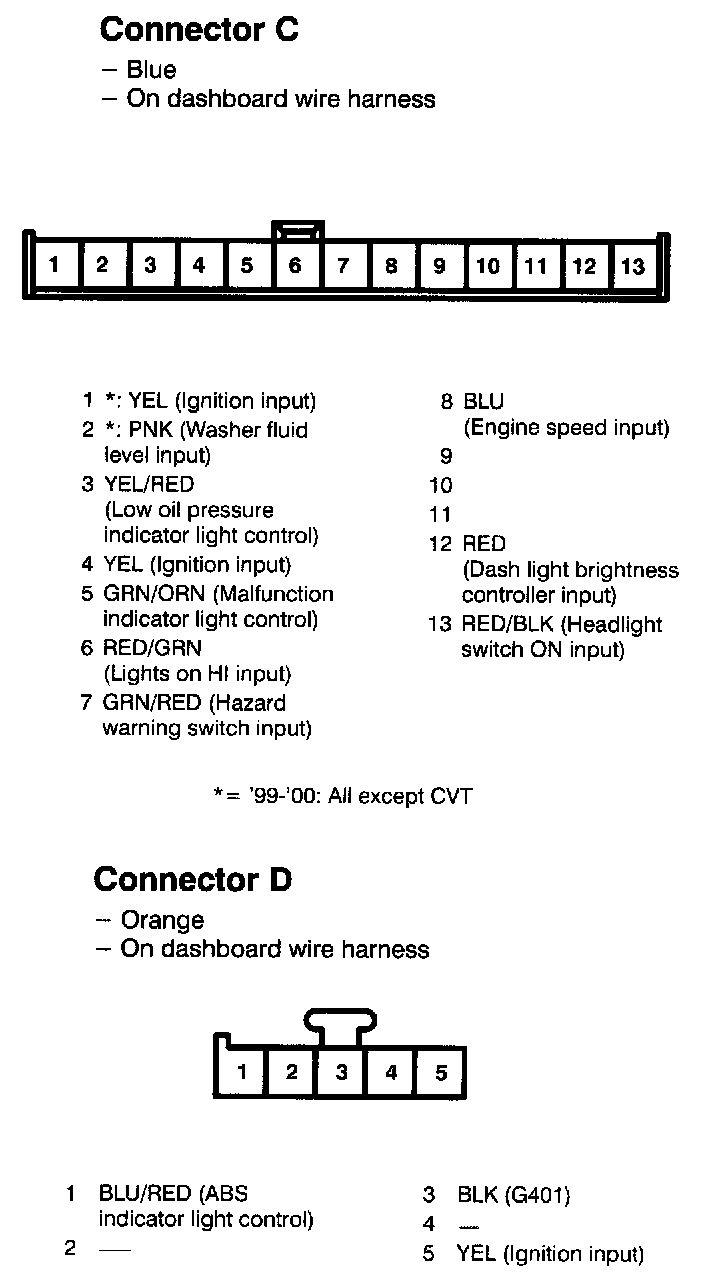

Part 3 Of 3:
