Oil Pressure Warning Lamp/Indicator
Oil Pressure Warning Lamp/Indicator

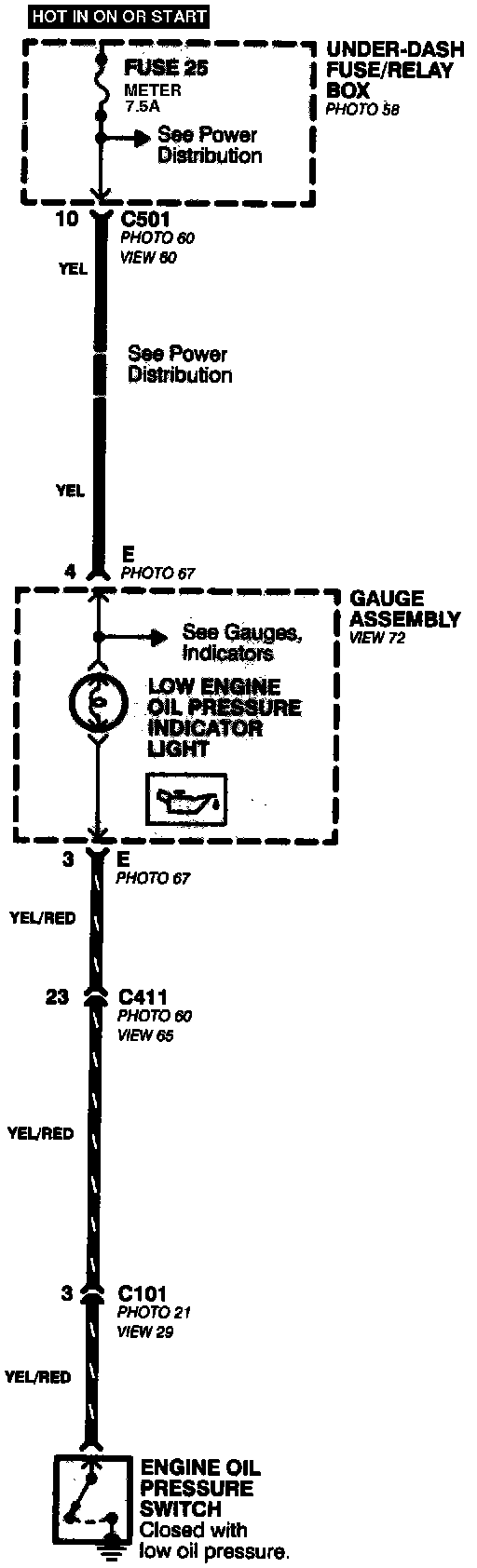

Oil Pressure Indicator Light:
