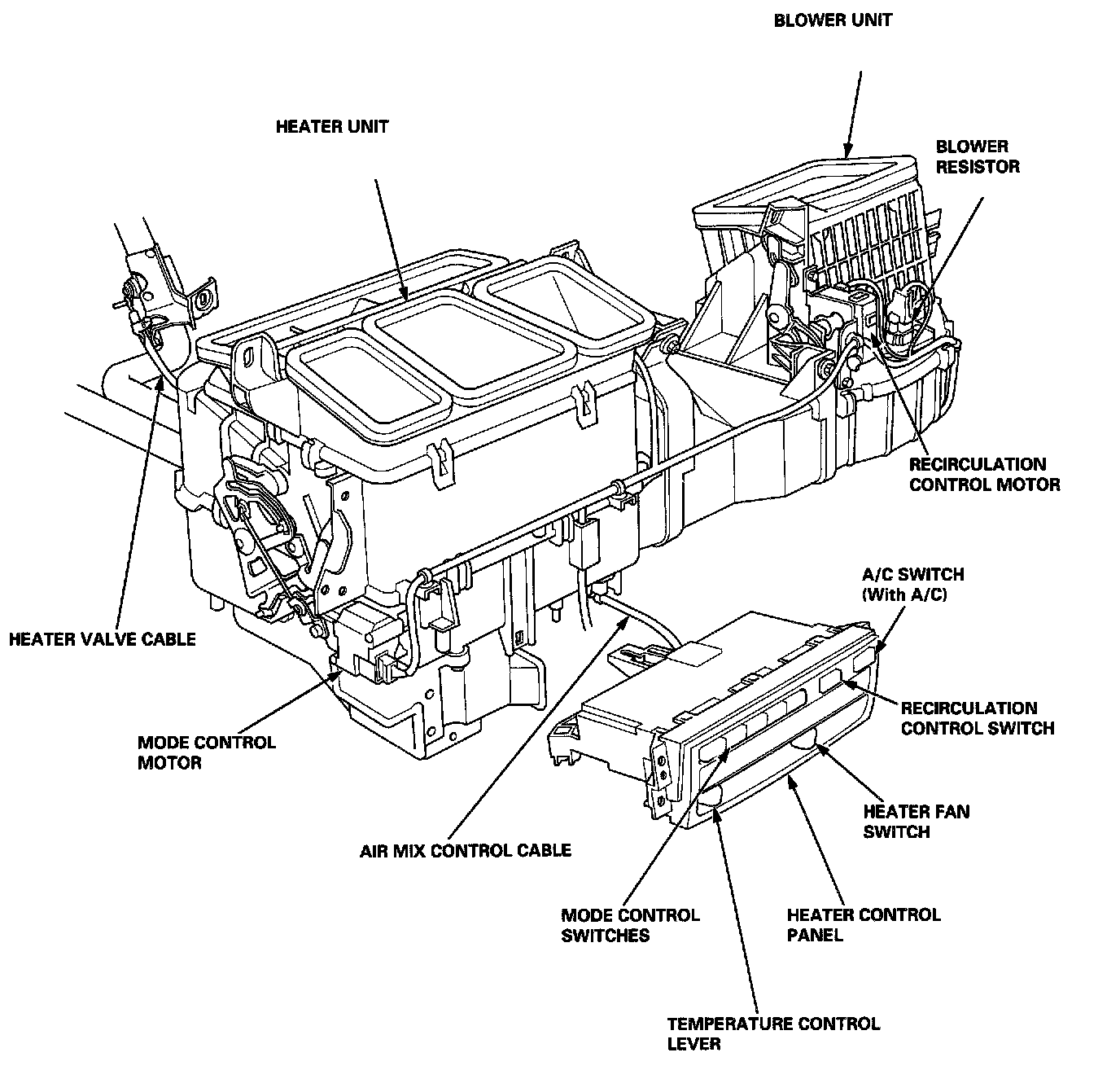

Heater Core: Locations

96-98 Models:

SRS components are located in this area. Review the SRS component locations, precautions, and procedures in the SRS before performing repairs or service.

Defroster-activated A/C System
Turning the defroster on activates the A/C and sets the air flow mode to FRESH. It is possible to turn the A/C off or to change the air flow to RECIRCULATE by pressing the A/C button or the FRESH/RECIRCULATE button.
