Map Light: Testing and Inspection

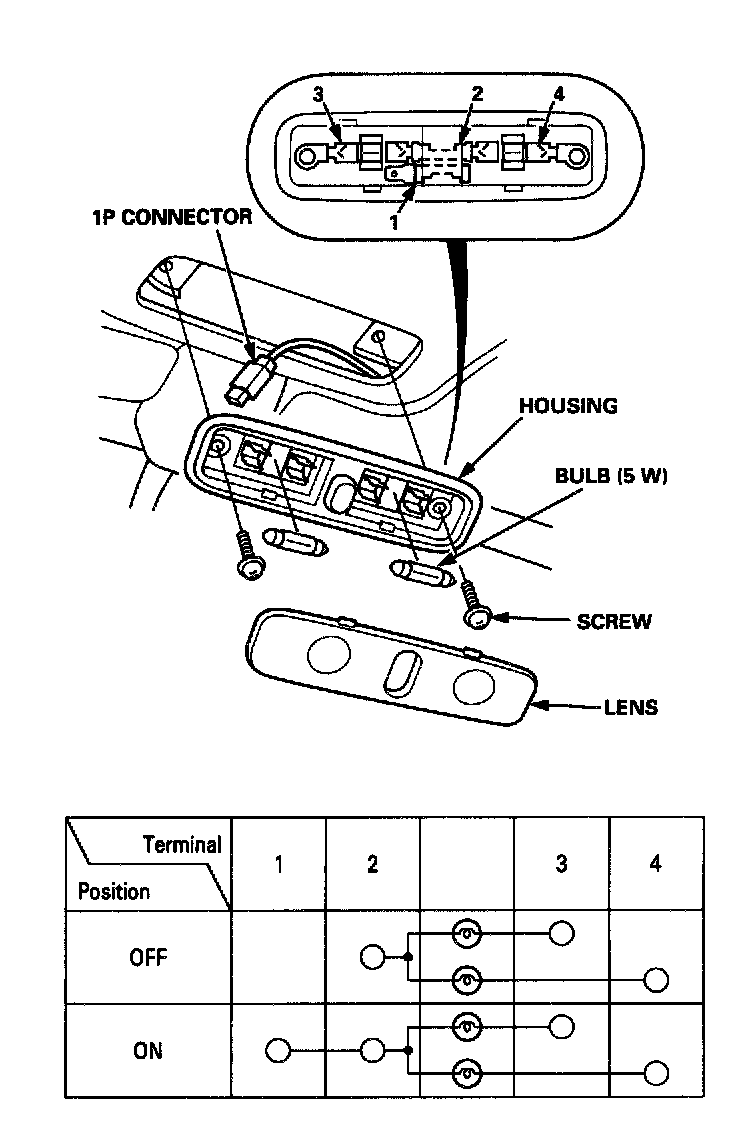

1. Turn the spotlight switch OFF.
2. Pry off the lens.
3. Remove the two screws and the housing.
4. Disconnect the 1P connector from the housing.




5. Check for continuity between the terminals in each switch position according to the table.
