Home >> Honda >> 1996 >> Civic Coupe L4-1.6L SOHC (VTEC) >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Locations

Air Bag Systems: Locations

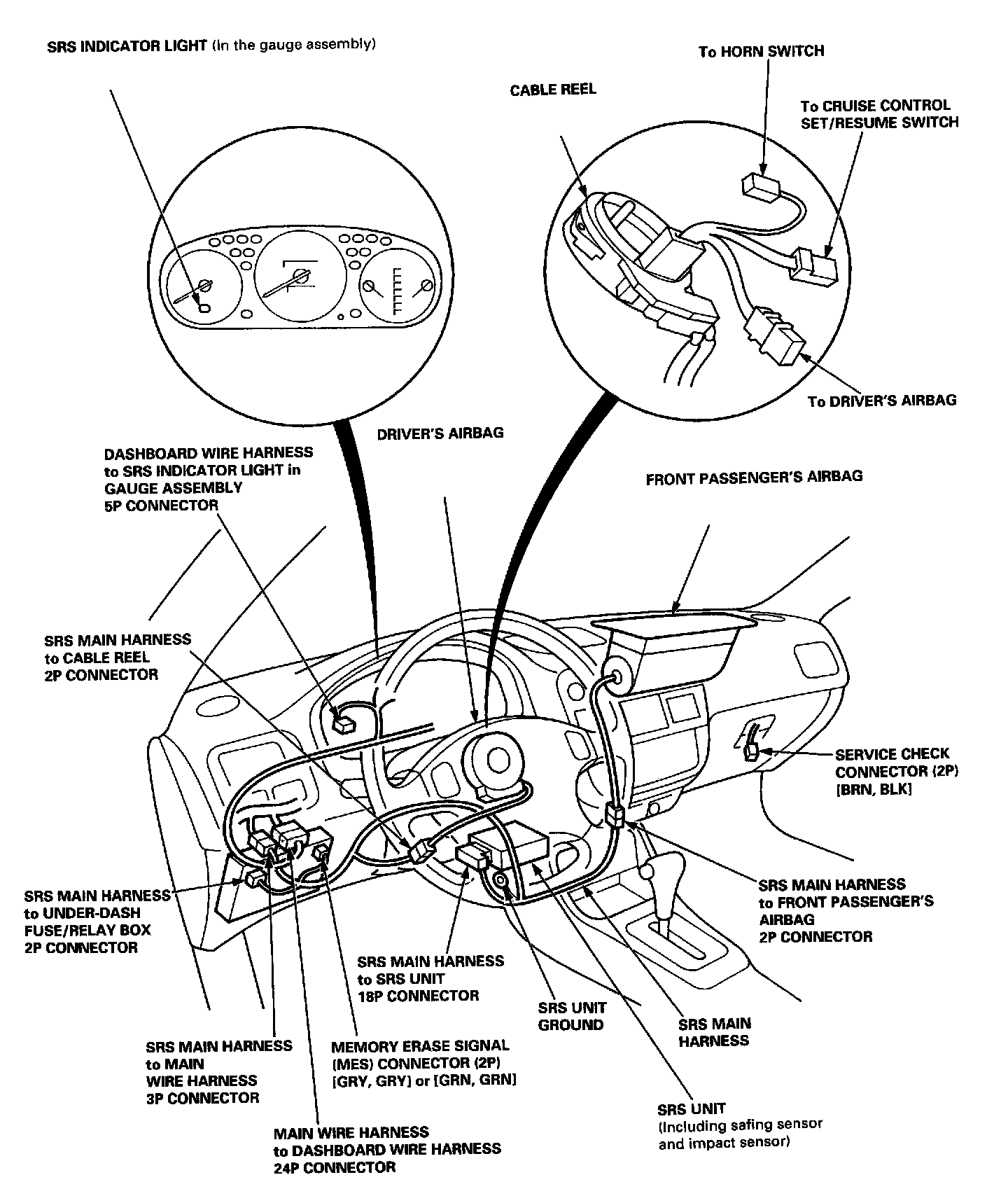

With Front Passenger's Airbag:



Without Front Passenger's Airbag (Part Of Canada Model):
