Body - Driver's Power Mirror Vibrates

99-002

January 22, 2001

** Applies To:
** 1996-00 Civic - ALL **

Driver's Power Mirror Vibrates
(Supersedes 99-002, dated September 19, 2000)

** Indicates updated information **

SYMPTOM

The driver's power mirror vibrates at vehicle speeds above 40 mph.

** PROBABLE CAUSE
The mirror is loose in its holder. **

** CORRECTIVE ACTION
Replace the mirror holder. **

**PARTS INFORMATION
Power Mirror Holder:
P/N 76253-S01-A15, H/C 4797759 **

RECOMMENDED MATERIALS
Silicone Grease:
P/N 08798-9013, H/C 4642294

WARRANTY CLAIM INFORMATION

In warranty:
The normal warranty applies.

** Operation Number: 818101

Flat Rate Time: 0.3 hour **

Failed Part: P/N 76253-S01-A15
H/C 4797759

Defect Code: 045

Contention Code: B99

Template ID: 99-002A

Skill Level: Repair Technician

Out of warranty:
Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Service Manager or your Zone Office. You must request consideration, and get a decision, before starting work.

REPAIR PROCEDURE

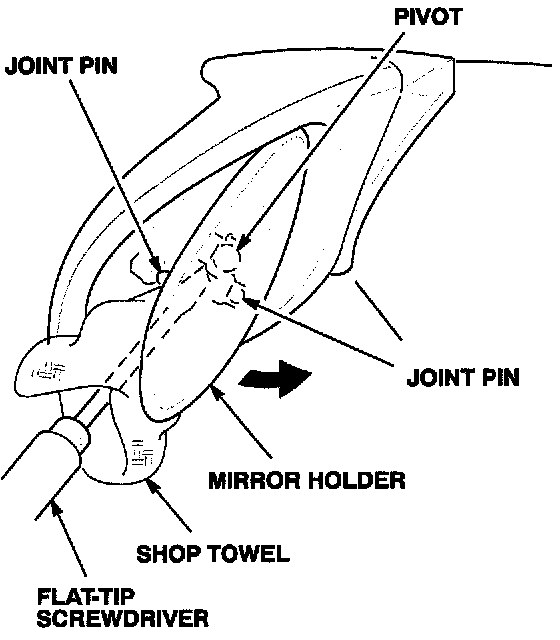

1. Wrap a flat-tip screwdriver in a shop towel to prevent damage to the mirror housing and the mirror holder; then with the screwdriver tip as close to the pivot as possible, carefully pry the mirror holder from the mirror base.

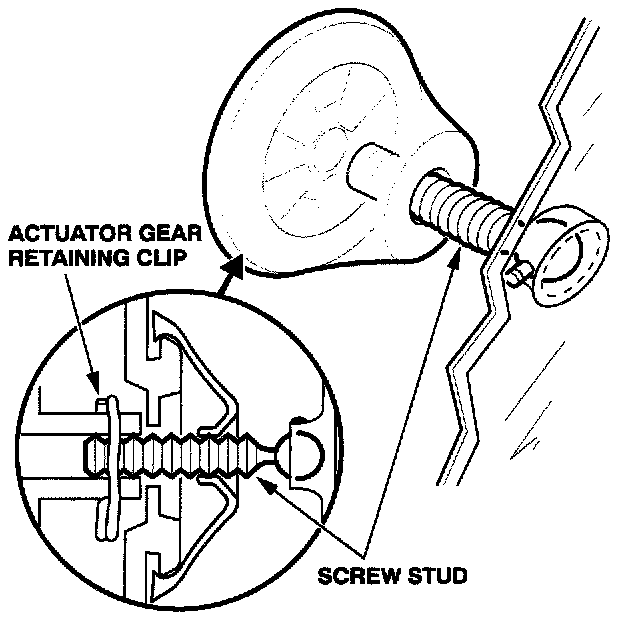

2. Remove and retain the dust boots and screw studs from the mirror holder. Discard the mirror holder.





3. Before installing the new mirror holder, apply silicone grease to the screw studs and the mirror holder. Install the screw studs onto the mirror holder, then install the dust boots onto the screw studs.

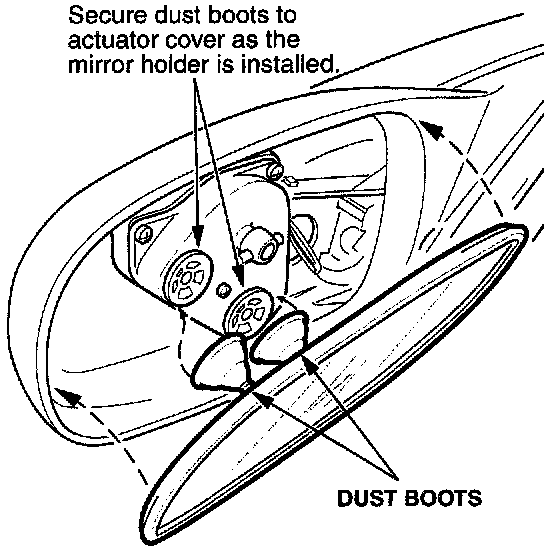

4. Hold the mirror holder close to the mirror housing. Secure the dust shields to the actuator cover without sliding them off of the screw studs.





5. Press the screw studs into the actuator gears, then press the mirror holder onto the pivot.

6. Test the mirror for full range of movement.

7. Test-drive the vehicle to make sure the mirror does not vibrate.
