Body - Inner Fender Liner Comes Loose

Bulletin No.
96-043

Issue Date
SEP 9, 1996

Model
1996 CIVIC

Applicable To
See VEHICLES
AFFECTED

File Under
BODY

Inner Fender Liner Comes Loose

PROBLEM

The right front inner fender liner may be pulled away from the fender when backing away from a low curb or similar object, allowing it to dangle and hit the right front wheel.

VEHICLES AFFECTED

4-door - All
Coupe - All
3-door - Thru VIN 2HGEJ.. .TH126156

CORRECTIVE ACTION

Add an extra mounting screw to the inner fender liner.

1. Inspect the inner fender liner. If it is damaged, replace it with a new one.

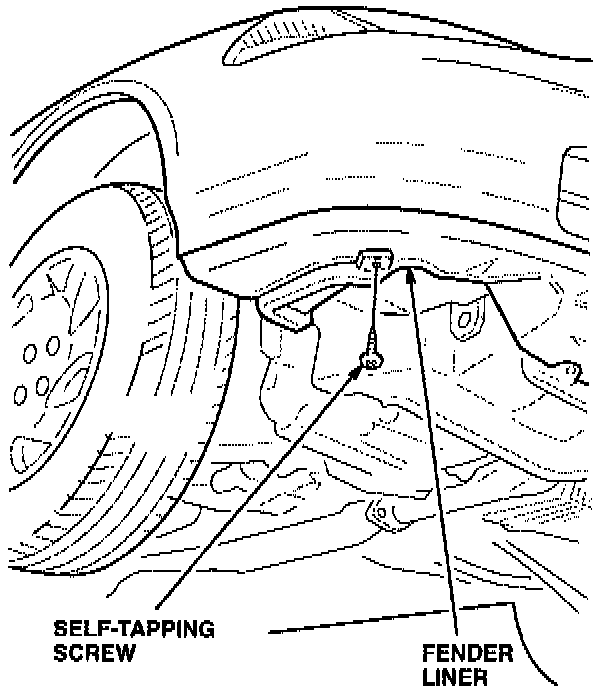

2. Install a self-tapping screw (see PARTS INFORMATION) through the existing hole in the front of the fender liner. Screw it into the bottom of the bumper.

PARTS INFORMATION

Self-tapping screw, 5x16 mm:

P/N 90126-SR4-000, H/C 4100947

Inner fender liner, right front:

P/N 74101-504-000, H/C 4779401

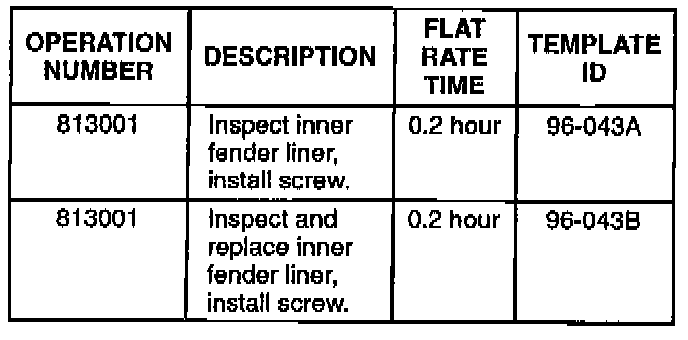

WARRANTY CLAIM INFORMATION

In warranty:
The normal warranty applies.

Failed part: P/N 74101-S04-000
H/C 4779401

Defect code: 074

Contention code: A99

Out of warranty:
Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Service Manager or your Zone Office. You must request consideration, and get a decision, before starting work.
