Interior - Rattle From Rear Of Headliner

Bulletin No.
95-026

Issue Date
NOV 6, 1995

Model [New]
1992-96
CIVIC

Applicable To
ALL
OHIO-PRODUCED
4-DOORS

File Under
BODY

Rattle From Rear of headliner (Supersedes 95-026, dated May 8, 1995)

SYMPTOM

A rattling noise is coming from the rear of the headliner, just above the rear window.

PROBABLE CAUSE

The rear window upper fasteners are rattling.

CORRECTIVE ACTION

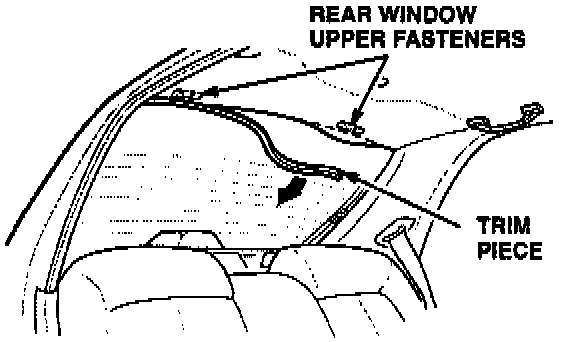

Remove the rear window upper fasteners.





1. Remove the trim piece along the top of the rear window.

(a) 1992 - 95: Carefully pull down the molding. [New]

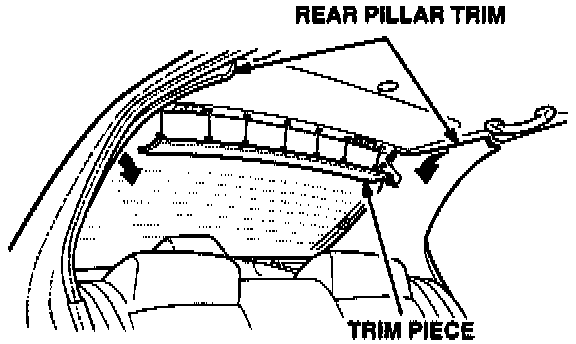

(b) 1996: Pull the top of the rear pillar trim away from the rear window trim piece on both sides. Carefully pry off the trim piece (7 clips).

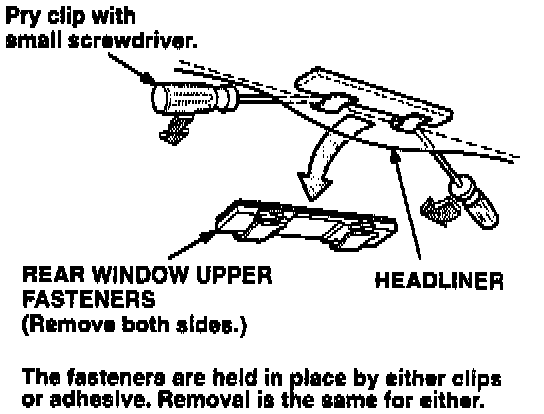

2. Gently pull down the edge of the headliner. Use a small screwdriver to remove the two rear window upper fasteners.

3. 1996: [New] Remove any rear window trim piece clips that stayed in the roof, and reattach them to the trim piece.

4. Reinstall the trim piece above the rear window. 1996: Reattach the tops of the rear pillar trim pieces.

WARRANTY CLAIM INFORMATION

In warranty: The normal warranty applies.

Out of warranty: Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Service Manager or your Zone Office. You must request consideration, and get a decision, before starting work.

Operation number: 741301
Flat rate time: 0.3 hour
Failed part: P/N 83200-SR4-A00ZA
H/C 3895687

Defect code: 043
Contention code: B07

Template ID: 95-026 [New]
