Glass Height

The roof panel should be even with the glass weather- strip, to within 1.7 (+0.5 mm/-1.0 mm) (0.07 (+0.02 in./-0.04 in.)) all the way around. If not, open the glass fully, and:




1. Remove the bracket cover.

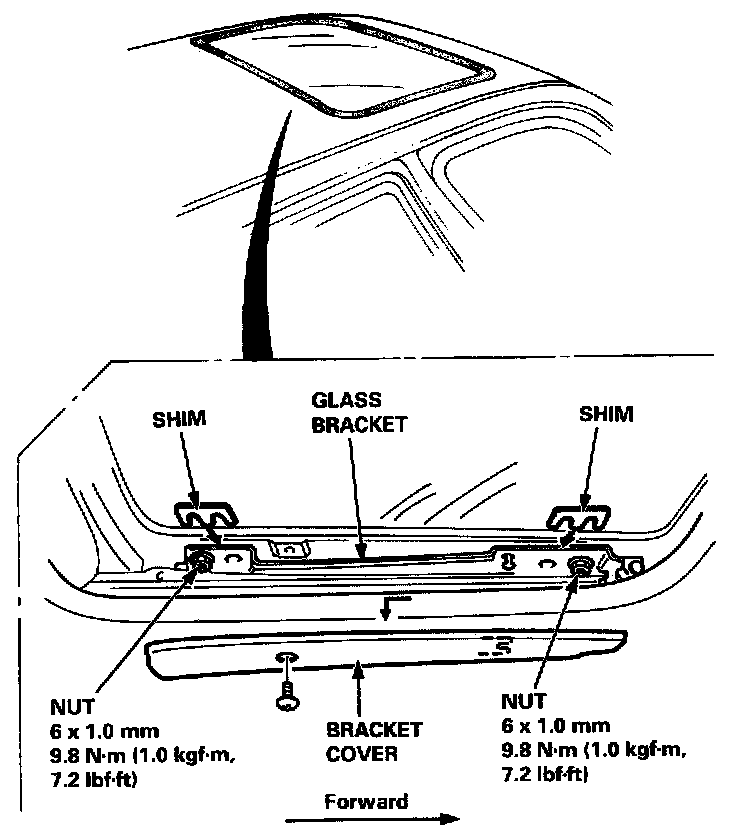

2. Loosen the nuts, and install the shims between the glass frame and glass bracket as shown.

Shim thickness: Front max. 3 mm (0.12 in.)
Rear max. 2 mm (0.08 in.)

3. Repeat on opposite side if necessary.
