Electrical Diagrams

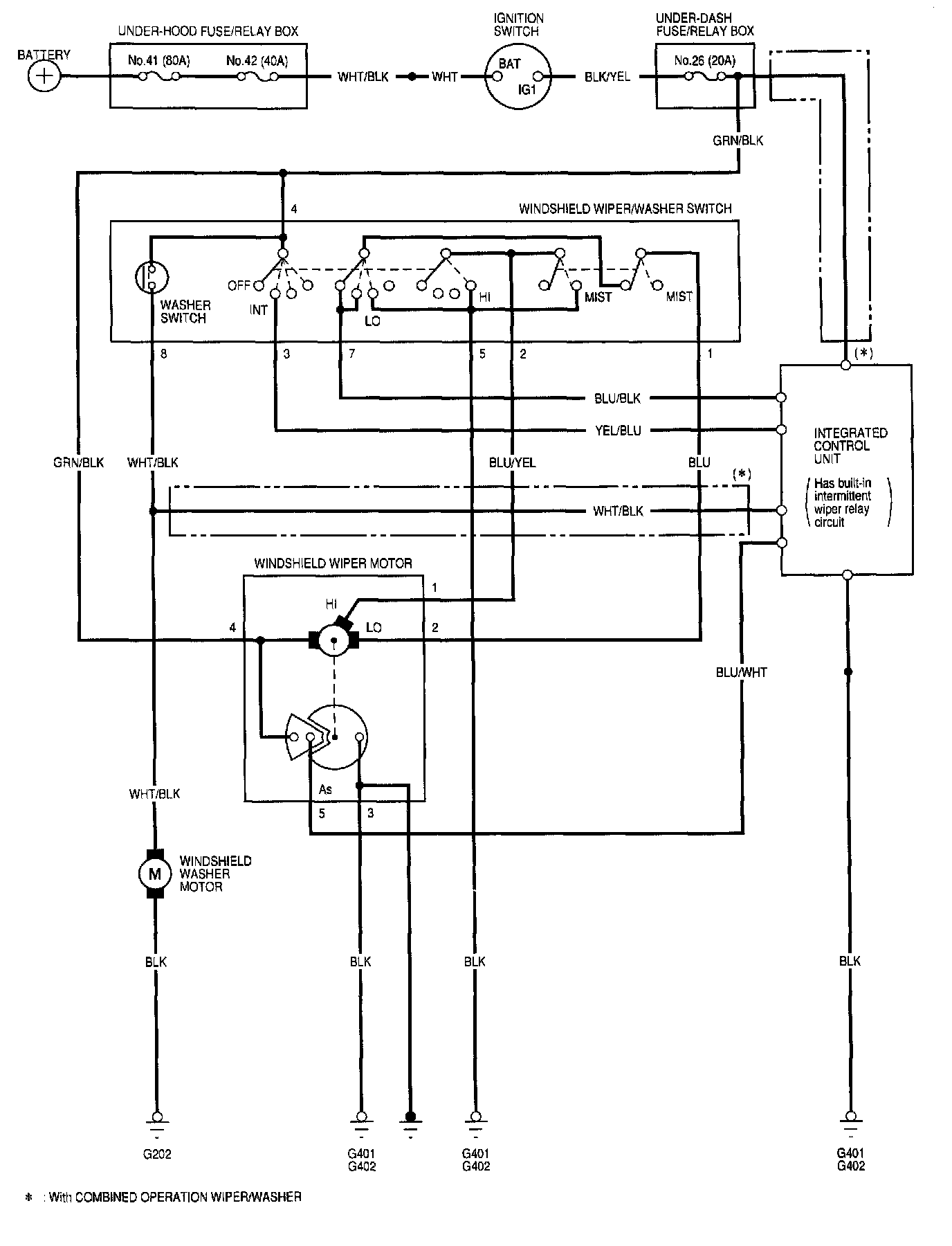

Front Windshield / Part 1 0f 2:



Front Windshield / Part 2 0f 2:

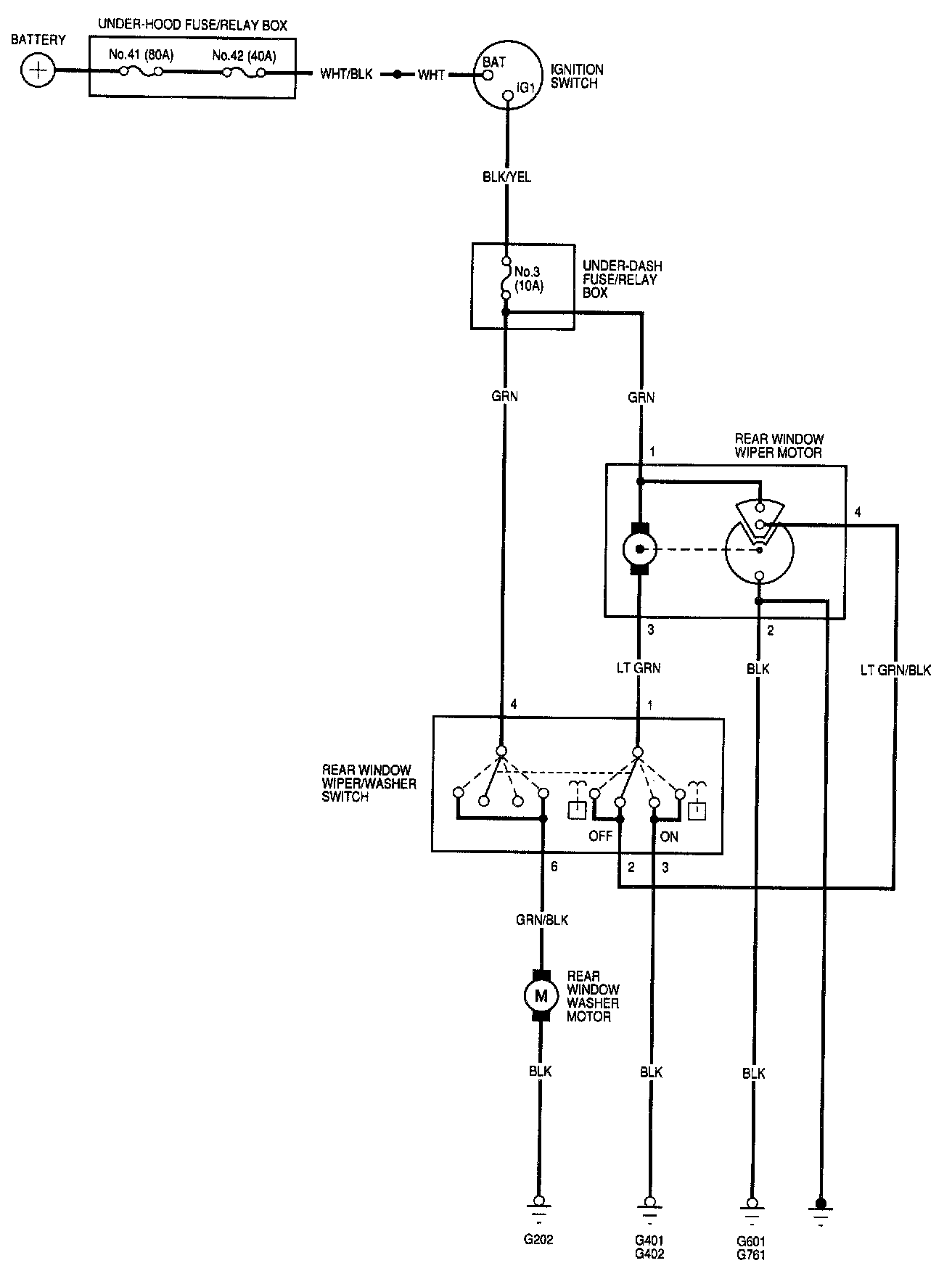

Rear Wiper:

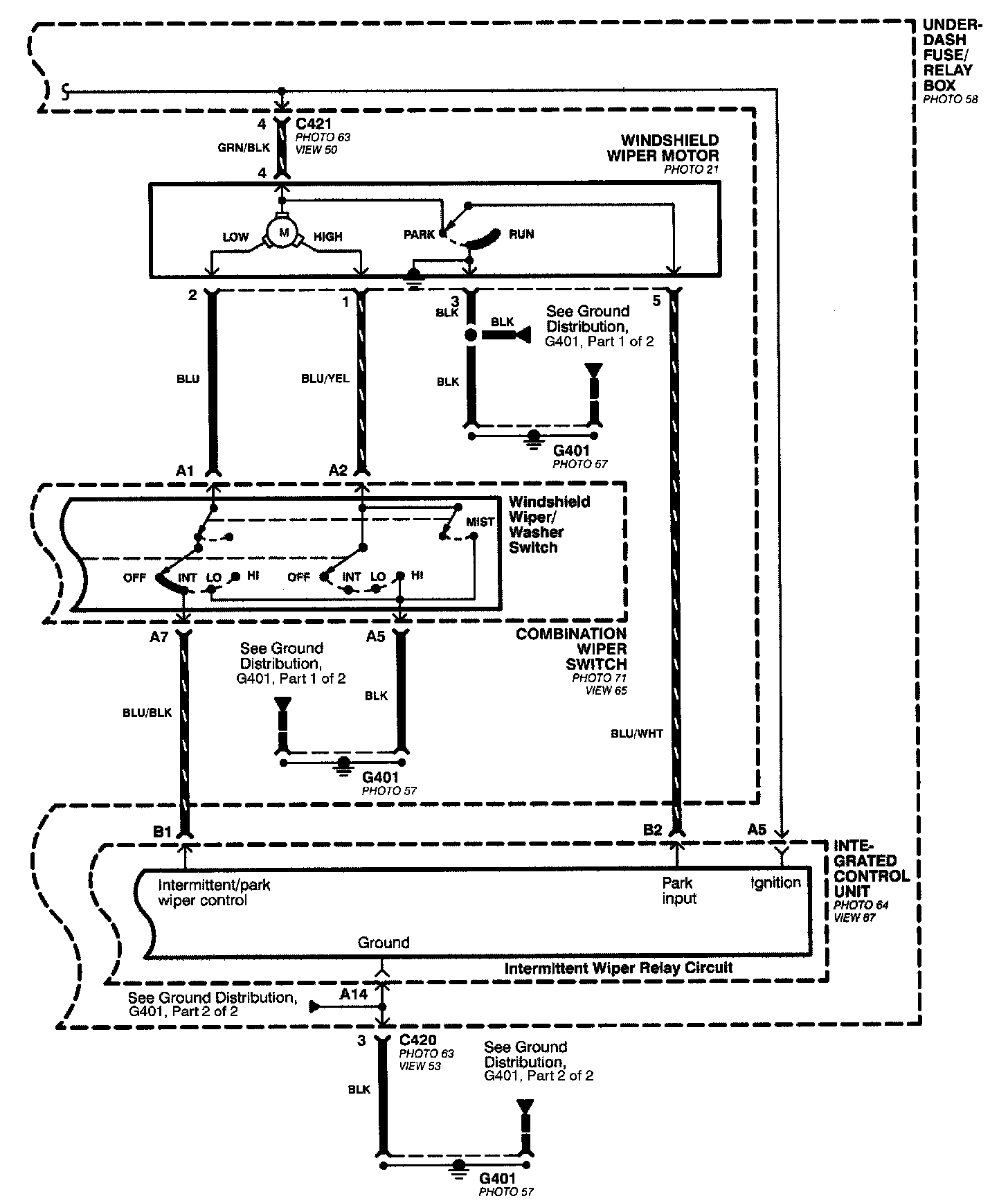

Front Wipers/Washers (Windshield):

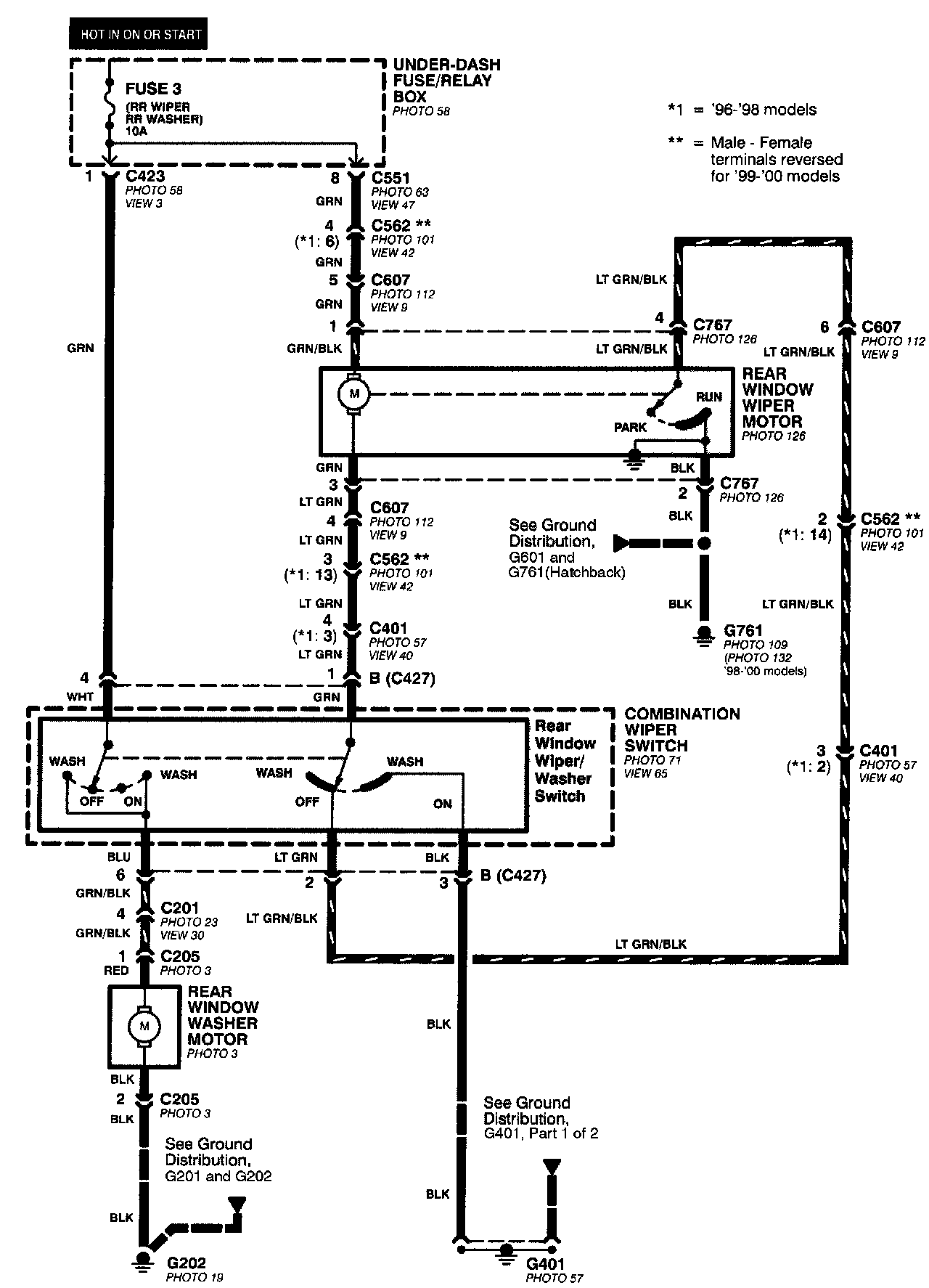

Wipers/Washers (Rear Window):
