Wiper Motor Linkage: Service and Repair

CAUTION: Put on gloves to protect your hands.

NOTE: Take care not to scratch the hood and body.

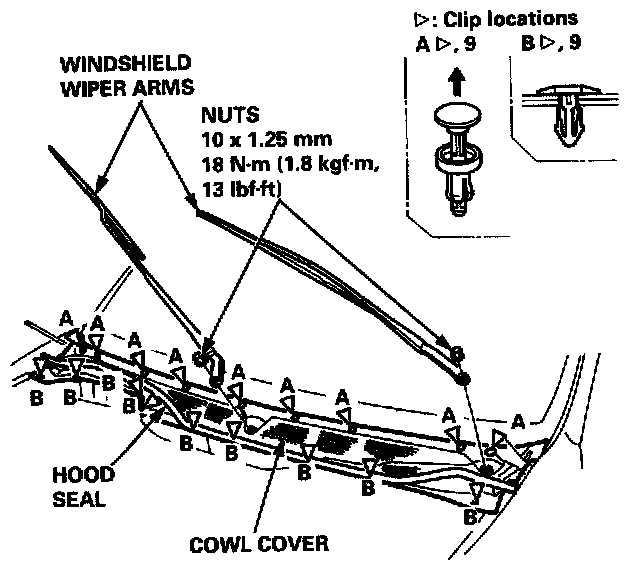

1. Remove the windshield wiper arms, then remove the hood seal and cowl cover.

Japan/Canada-Produced:

USA-Produced:

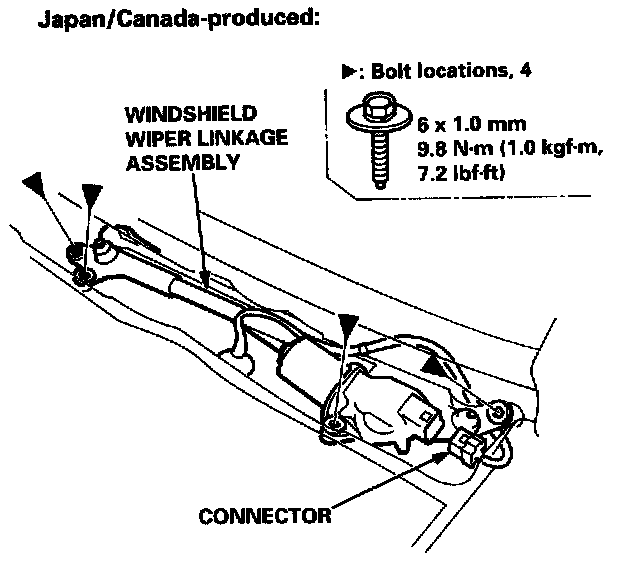

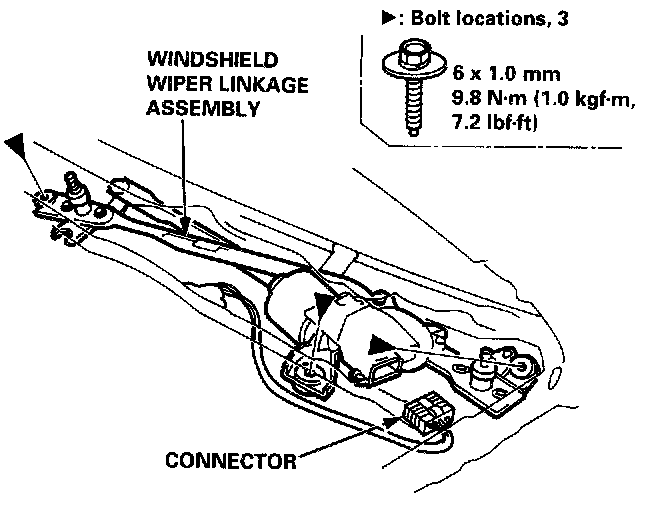

2. Disconnect the connector, then remove the wind shield wiper linkage assembly.

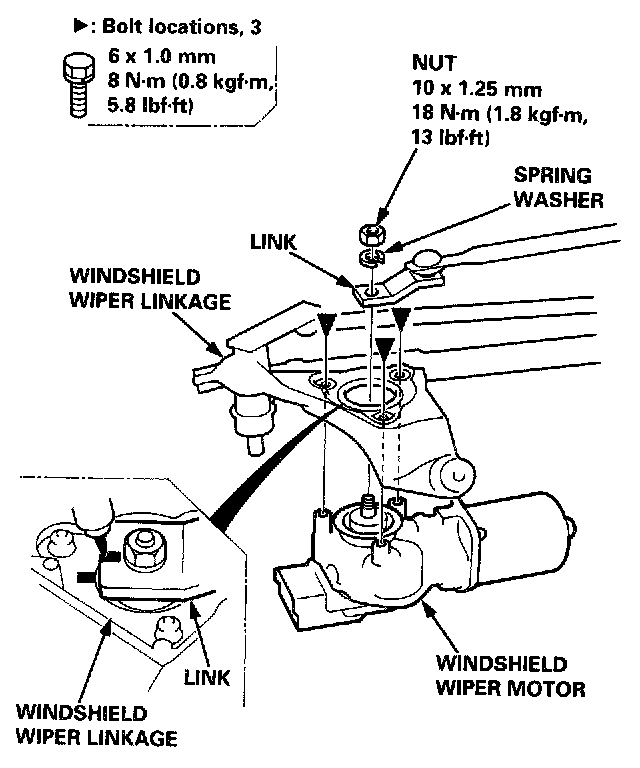

3. Separate the windshield wiper linkage and windshield wiper motor.

Japan/Canada-Produced:

NOTE: Scribe a line across the link and windshield wiper linkage to show the original adjustment.

USA-Produced:

NOTE: Scribe a line across the link and windshield wiper motor to show the original adjustment.

4. Installation is the reverse of the removal procedure.

NOTE:
- Make sure the connector is connected properly.
- If necessary, replace any damaged clips.
- Install the windshield wiper arms.
- Check the windshield wiper motor operation.
- Grease the moving parts.
