Home >> Honda >> 1996 >> Civic Coupe L4-1.6L SOHC (VTEC) >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Switch >> Diagrams

Wiper Switch: Diagrams

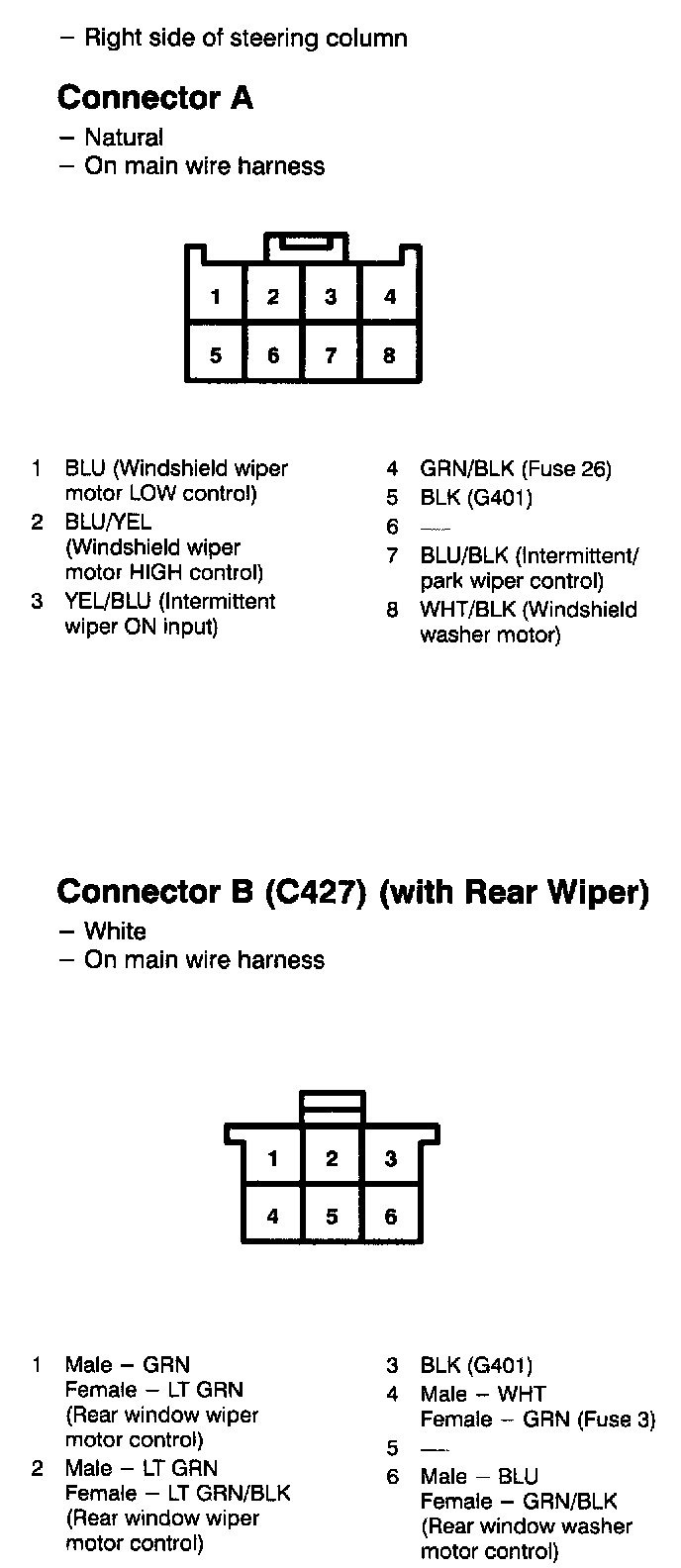

Wiper/Washer Switch:
