Hood: Service and Repair

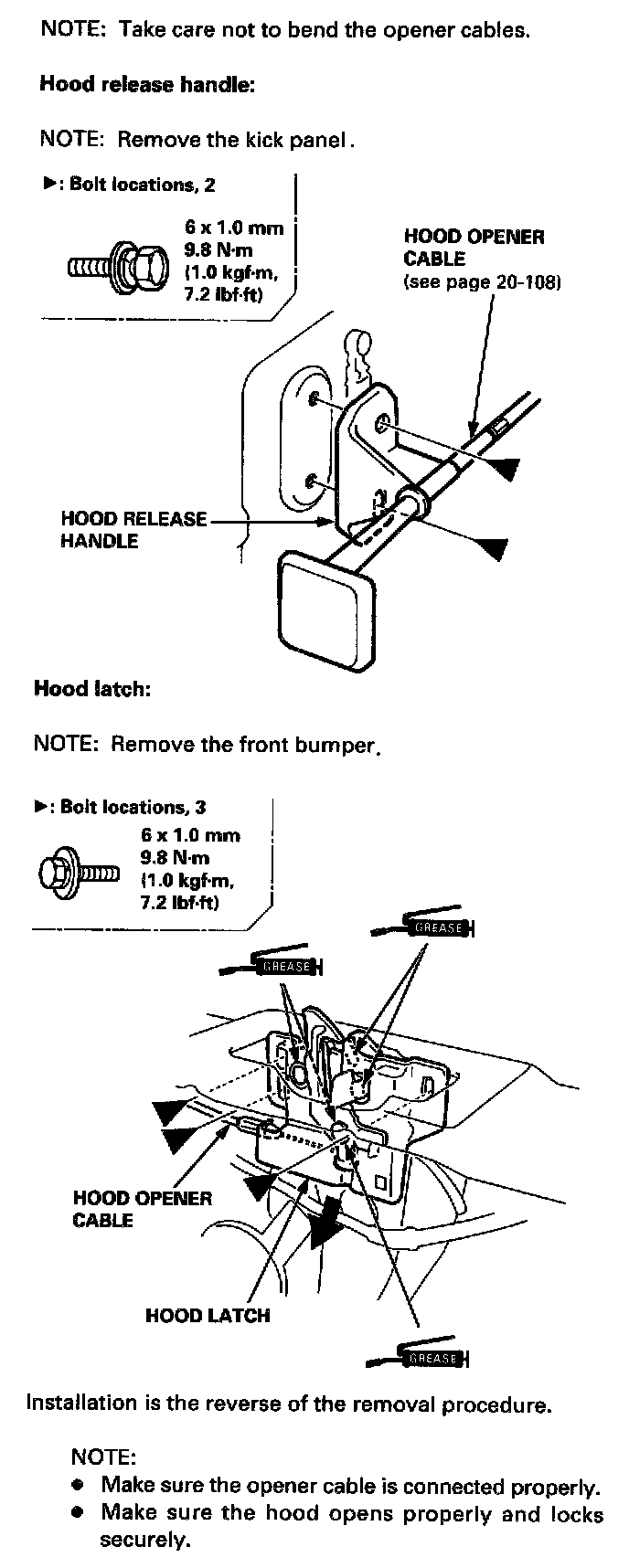

Hood Release Handle/Hood Latch:



Trunk Lid Of Hatch/Fuel Lid Opener:

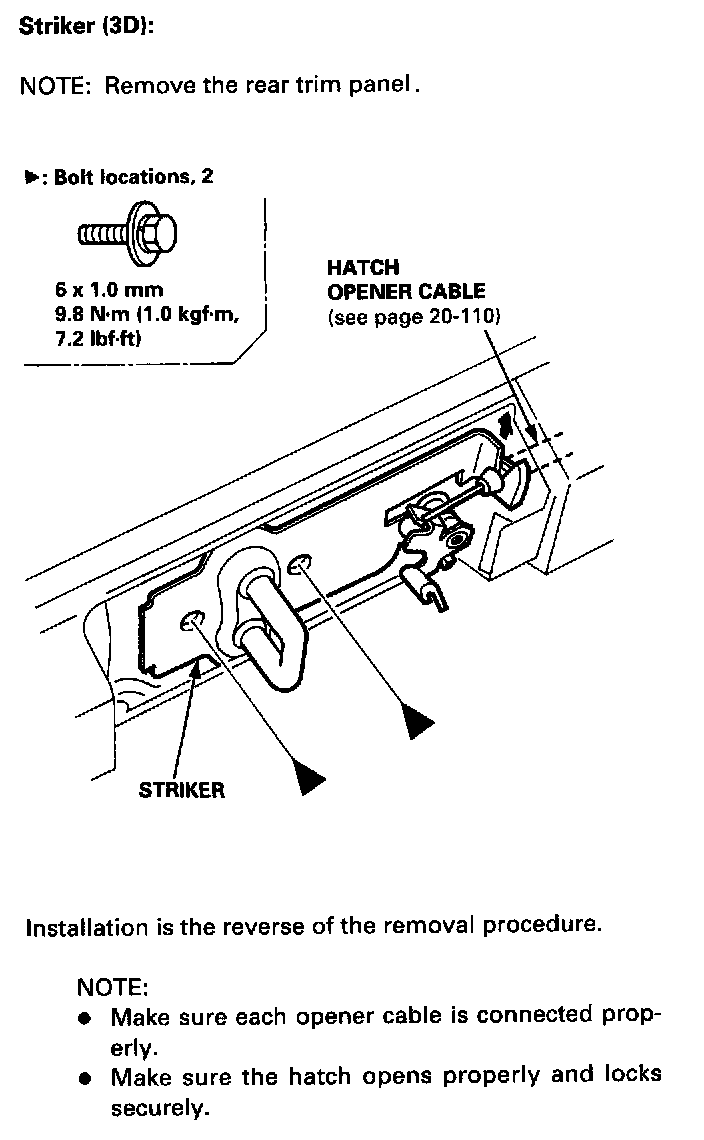

Striker (3D):

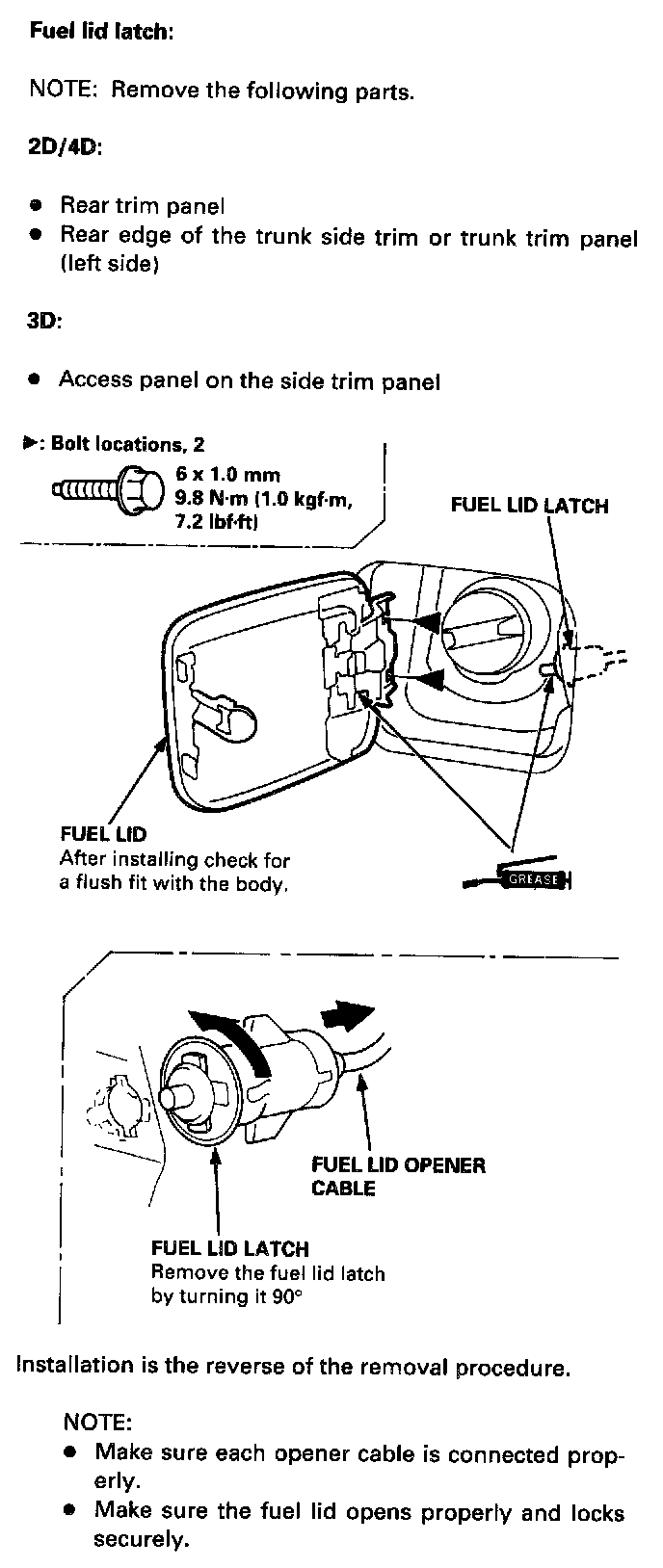

Fuel Lid Latch:

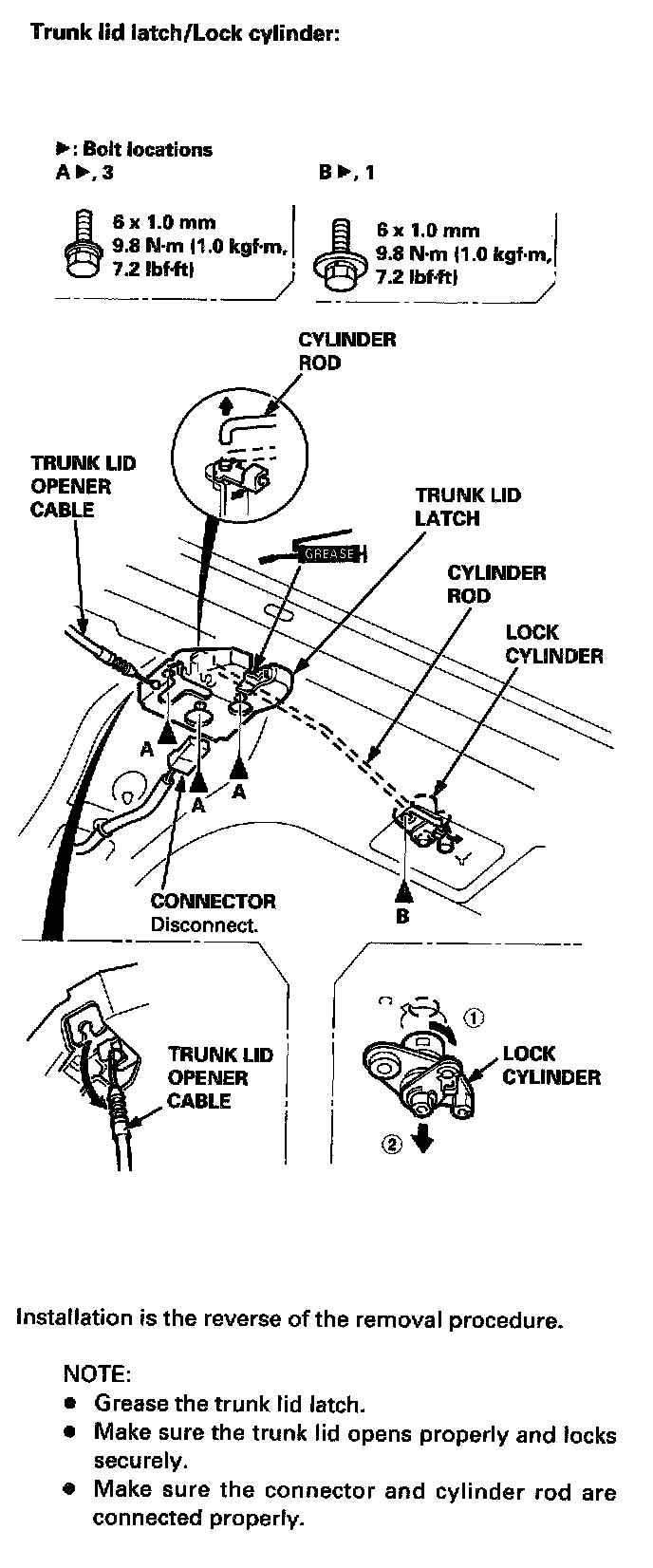

Trunk Lid Latch/Lock Cylinder:

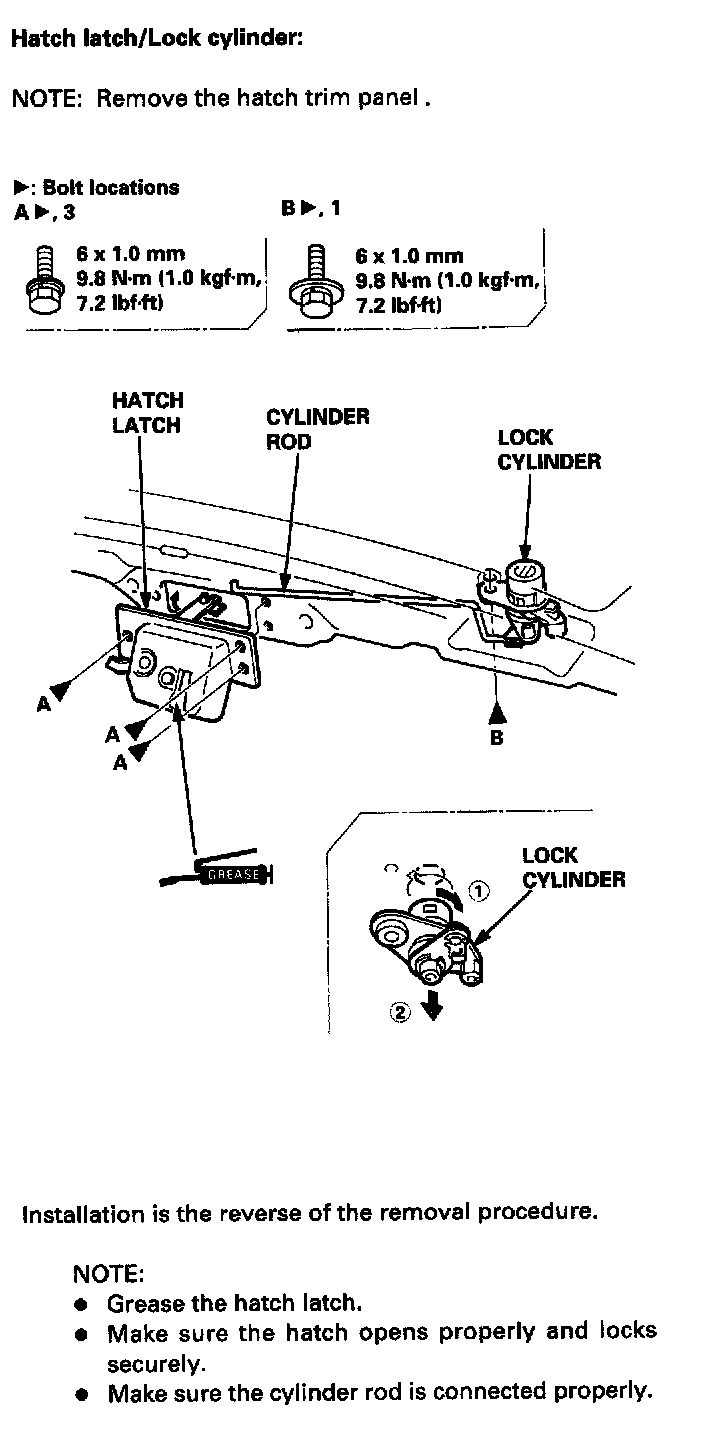

Hatch Latch/Lock Cylinder:
