Home
>>
Honda
>>
1996
>>
Civic Sedan L4-1.6L SOHC (16 Valve)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Accessories and Optional Equipment
>>
General Module
General Module
Integrated Control Unit Part 1 0f 2:
Integrated Control Unit Part 2 0f 2:

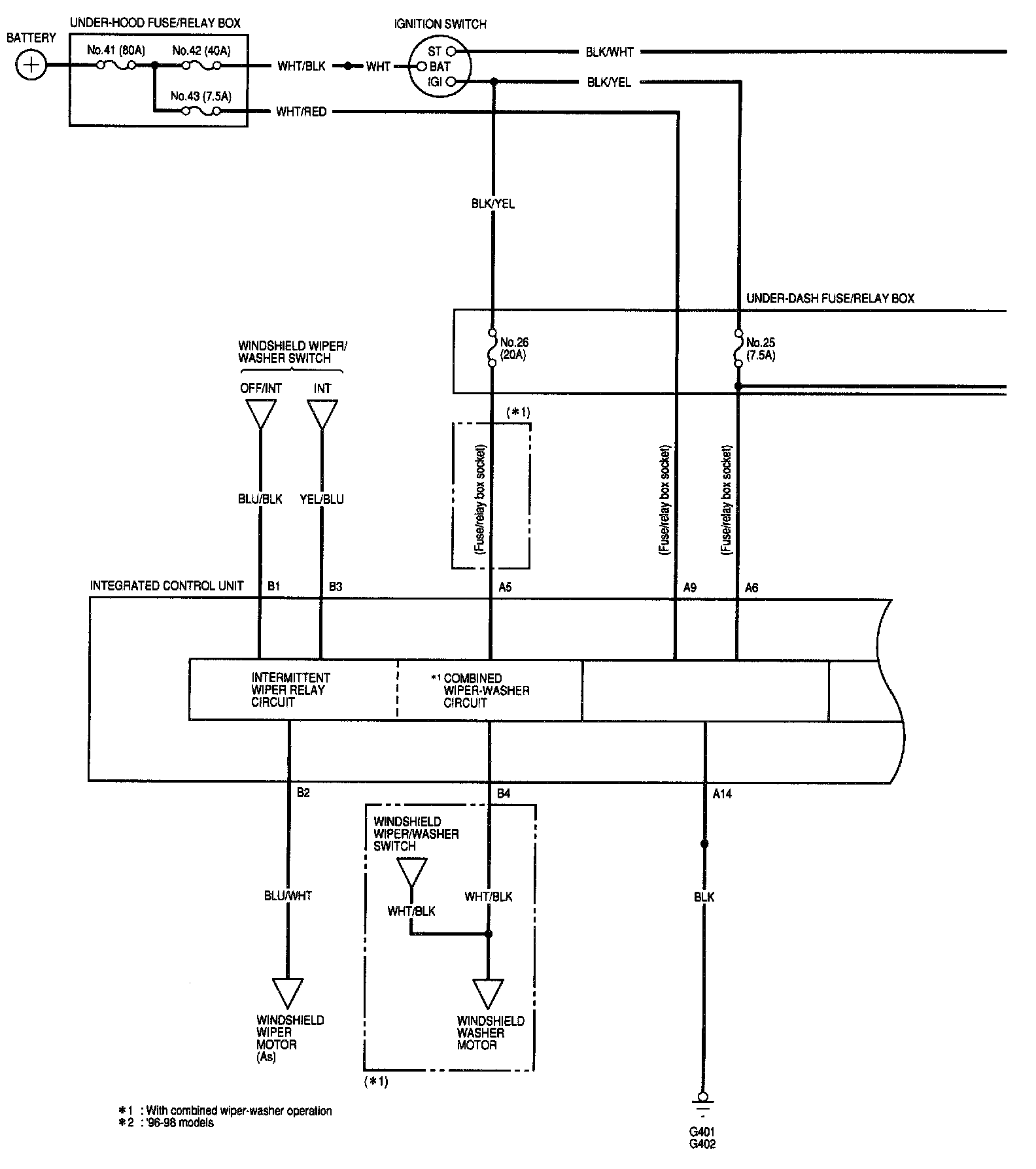

Integrated Control Unit (Part 1 Of 2):

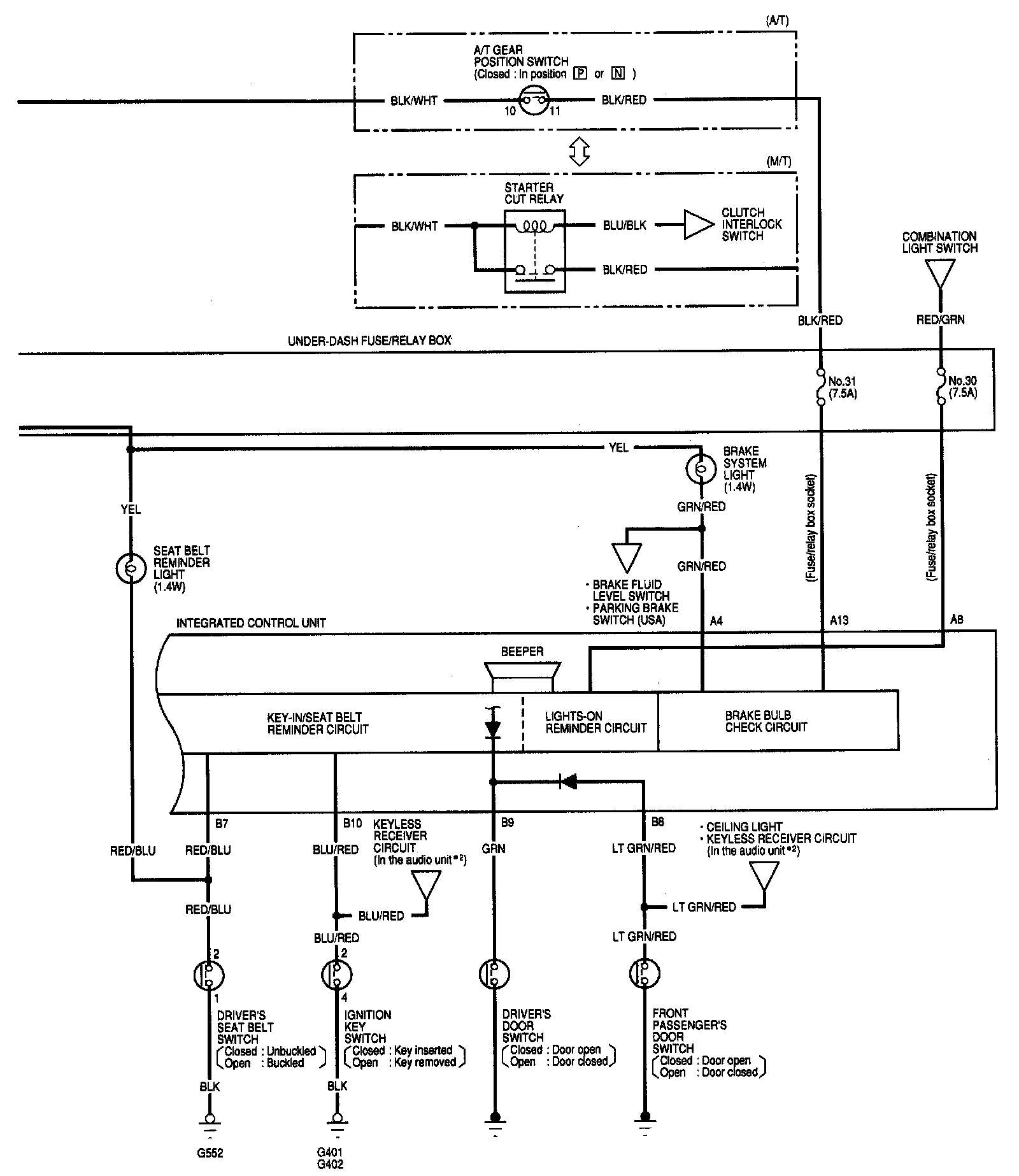

Integrated Control Unit (Part 2 Of 2):
